Application Notes

•Lubricated for life (other internal lubrication not required).

The shaft should be lubricated upon assembly, to prevent seizing.

•For use with Cleveland-Kidder® 2 Amp, 24 VDC power suppy (Model EMAG-PS2)

•The standard device is designed for horizontal shaft orientation,

and a minimal speed of 60 RPM. Maximum speed is 3000 RPM

(without exceeding the max. heat dissipation capability).

•For Engineering application, please contact our technical support.

•In normal use, the outside temperature of the device can increase up to 100°C,

without damage.

Supply by 2 wires

Length = 250 mm

6 x screws CHC M8x80

at 60 ° on f 294

(user’s fixation)

f 315 h8

f 55 H7

16 P9

59.3

f 265 g6

14.5

f 265 g6

Nominal torque 350 Nm ft.lb 260

Minimal torque 3.5 Nm ft.lb 2.6

Coil resistance - 20°C Ohms 10

Rated current DC A 1.5

Rotor inertia 89.10-3 kg.m2 lb.ft 2 206.10-2

Weight 38 kg lb 84

Heat dissipation

W *

Continuously sustained

400

Specifications

* Heat dissipation is the mechanical power (P = cw) maximum allowable.

100

150

200

0.80.2 0.4 0.6 1.0 1.2 1.4 1.6

250

300

350

400

Torque N.m

Current A

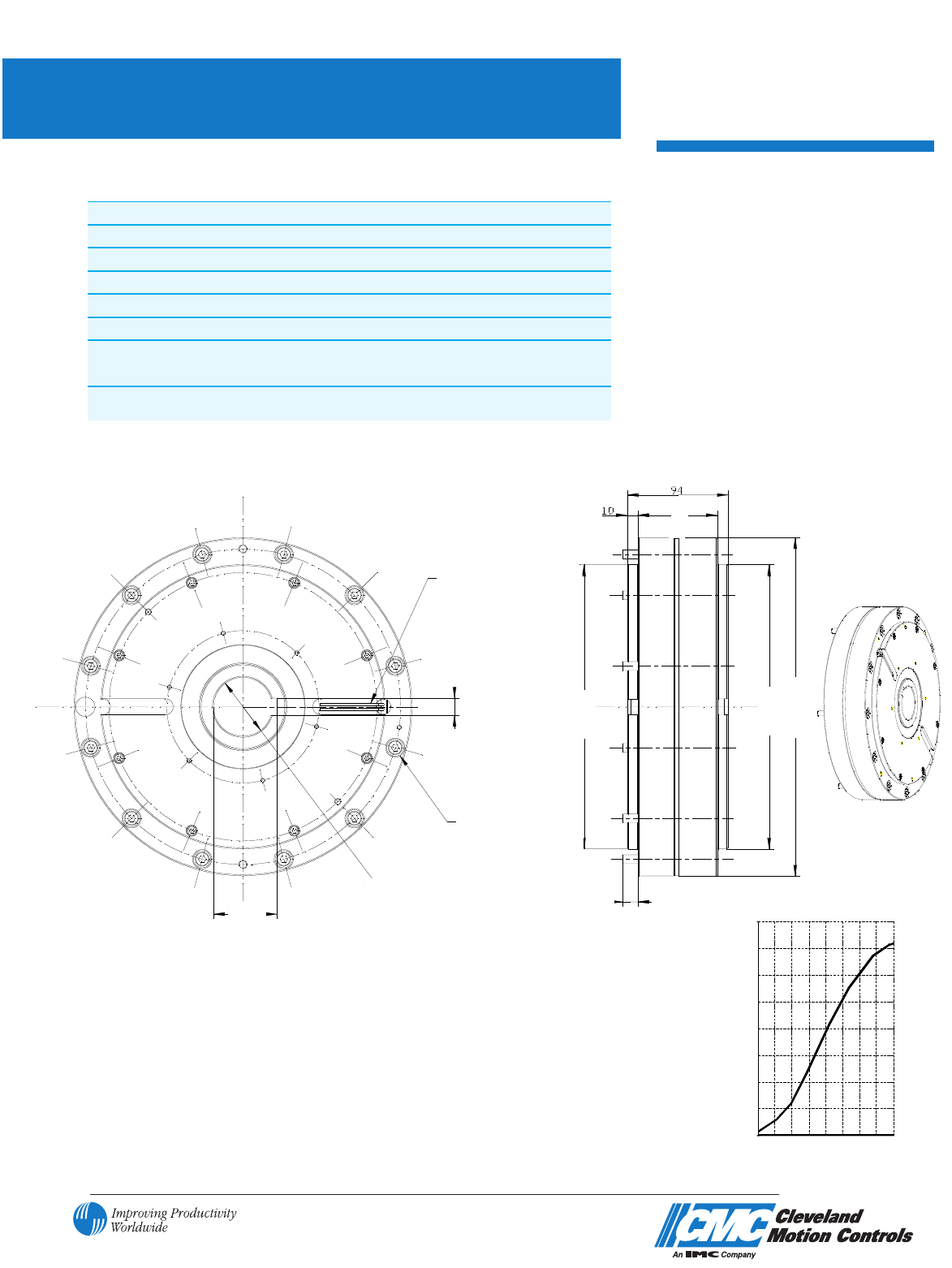

Cleveland-Kidder®

ELECTROMAGNETIC

PARTICLE BRAKE

EMAG 260

• Easy Electric Remote Control

• Low Power Consumption

• High Level of Torque Stability

• Highest Torque Density

• No Dust

• Noiseless

• Easy Installation

• Maintenance-Free Bearing

+0.2

Summary of content (2 pages)

PAGE 1
ELECTROMAGNETIC PARTICLE BRAKE Cleveland-Kidder® EMAG 260 Specifications Nominal torque Minimal torque Coil resistance - 20°C Rated current DC Rotor inertia Weight Heat dissipation Continuously sustained 350 3.5 89.10-3 38 Nm Nm kg.m2 kg ft.lb 260 ft.lb 2.6 Ohms 10 A 1.5 lb.ft 2 206.
PAGE 2
ELECTROMAGNETIC PARTICLE BRAKE Cleveland-Kidder® EMAG 260H EMAG 260HB Specifications Nominal torque 350 Minimal torque 3.5 Coil resistance - 20°C Rated current DC Rotor inertia 89.10-3 Weight 53 Heat dissipation Continuously sustained with heat sink – H Continuously sustained with heat sink and blower – HB Nm Nm kg.m2 kg ft.lb ft.lb Ohms A lb.ft 2 lb W* 900 260 2.6 10 1.5 206.10-2 117 • • • • • • • • 2700 * Heat dissipation is the mechanical power (P = cw) maximum allowable.
