Model No. : 211-6623 Polished Chrome

211-6624 Brushed Nickel

211-6625 Oil-Rubbed Bronze

Majestic Contractor Trim Pack for

Single Handle Pressure Balanced Tub &

Shower Set

Revised 06/02/16

In the event that Freendo faucets are used in a Commercial Application, this warranty is limited for

a period of 5 years, unless otherwise specifically stated in the catalog and/or price book.

Summary of content (4 pages)

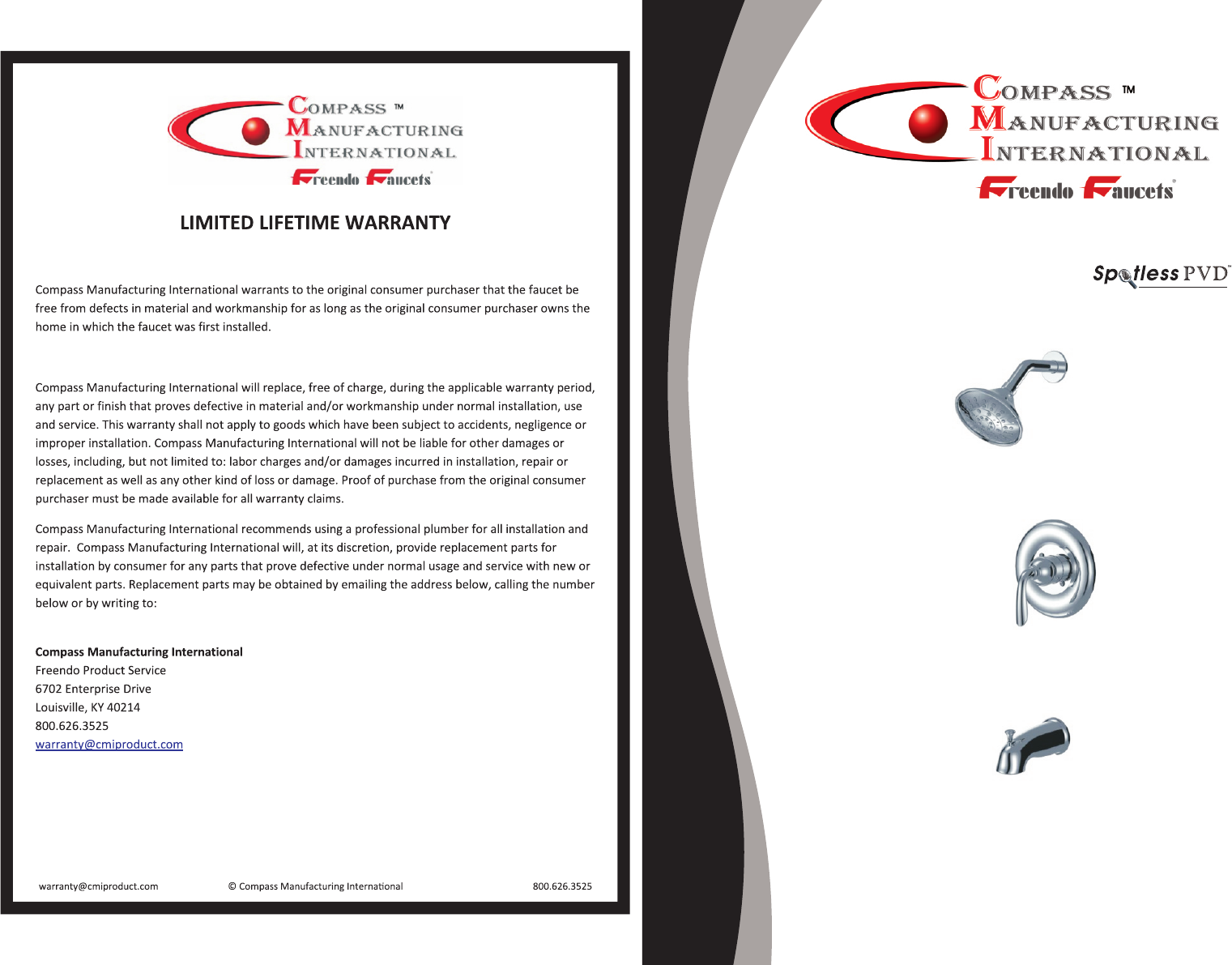

PAGE 1
Model No. : 211-6623 211-6624 211-6625 Polished Chrome Brushed Nickel Oil-Rubbed Bronze In the event that Freendo faucets are used in a Commercial Application, this warranty is limited for a period of 5 years, unless otherwise specifically stated in the catalog and/or price book.
PAGE 2
17 16 Plumber's Putty Screwdriver Escutcheon Screw O-rings Allen Key 15 Allen Key 14 Hot/Cold Button 13 12 Escutcheon Screw Tub Spout 11 Set Screw 10 Handle 9 Cartridge Locknut 8 Cartridge Sleeve 7 Cartridge 6 5 Escutcheon Sealing Ring 4 Sealing Ring 3 2 Shower Head Shower Arm 1 Shower Arm Flange No.
PAGE 3
Faucet Installation 2 1. 1 2. 3 7 8 4 9 5 1-1/2”~3” 6 10 11 11 14 15 13 16 12 17 1. For tub spout installation only: install copper pipe for spout, use proper length copper pipe so that the pipe will extend 1-1/2”~3” from the finish wall. In order to assure proper function, piping from the bottom port of valve to tub spout outlet must be either 1/2” nominal copper pipe or 1/2” iron pipe. 2. Remove the locknut sleeve, O-ring and test plug as shown. Note: DO NOT DISCARD locknut sleeve.
PAGE 4
Faucet Installation 3. 4. “HOT”corresponding to hot water 6 17 13 7 8 9 10 11 5. 6. 1 2 3 12 16 3. Install the cartridge 7 , cartridge sleeve 8 and cartridge locknut 9 into the valve body. 4. Close bathtub drain to avoid losing parts. Install escutcheon 6 and secure it with escutcheon screws 13 and escutcheon screw o-rings 17 . Make sure valve is in off position. Then assemble the handle 10 and secure it with set screw 11 . 5.
