2.1.3 Layout
1
2
3 4

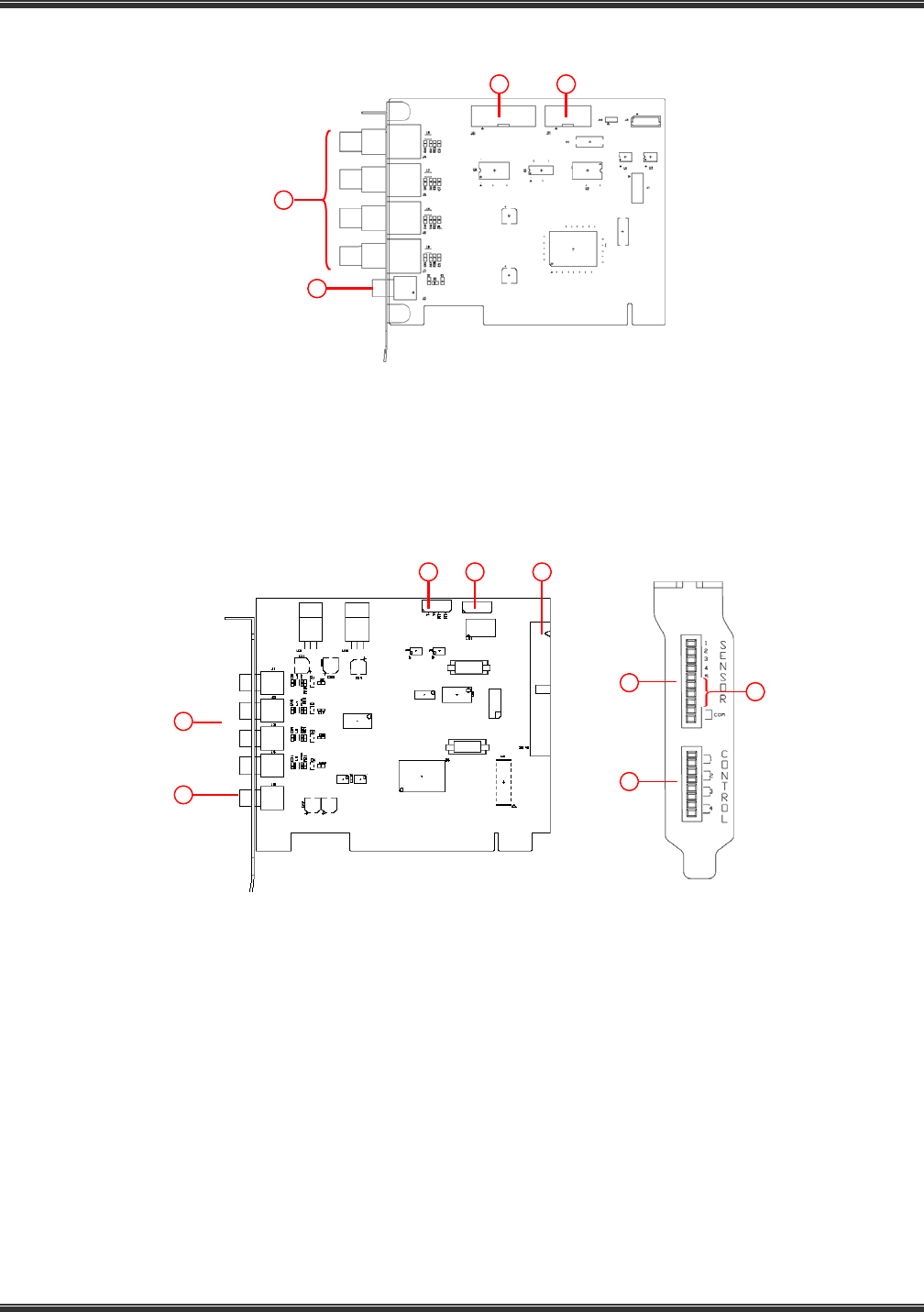

<Capture B/D - BDF0303m>
①
Video Inputs : Camera In 1~ 4
②
Audio Input : 1Ch audio line level in
③
DI Connector : DI(1~8) control port. Connecting to the DIO board (1~8)
④
DO Connector : DO(1~4) control port. Connecting to the DIO board (1~4).
1
2
3 4 5
6
8
7
<Capture B/D - BDF0303> <DIO Board>
①
Video Inputs : Camera In 1~ 4
②
Thru pass Output : 1Ch Live display
③
RS422/RS485 port : Camera PTZ control
④
Watch-Dog Connector : Hardware Reset
⑤
DIO Connector : DIO control port. connecting to the DIO board
⑥
DI Connector : Sensor Input (1~4)
⑦
RS422/RS485 port : Camera PTZ control
⑧
DO Connector : Dry contact Output (1~4). Alarm control
