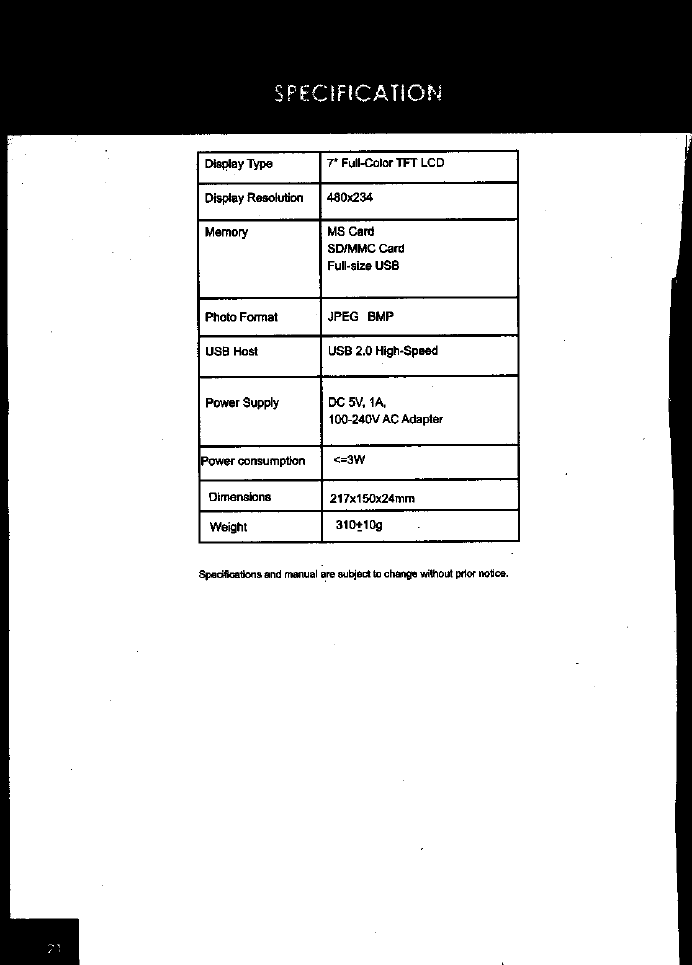

SPECIFICATION Display Type rFull-Color TFT LCD Display Resolution 480x234 Memory MS Card SD/MMC Card Full-size USB Photo Format JPEG BMP USS Host USS 2.0 High-Speed Power Supply DC 5V, 1A, 11X1-240V AC Adapter Power consumpdon Dimensions Weight <03W 217x150x24mm 310+10g Specilkalions and manual are sublect to change without prior notice.
Nidescreen Digitcil Photo Frame DP730 INSTRUCTION MANUAL Please read this manual carefully before operation 4111114
TABLE OF CONTENTS PRECAUTIONS 2 IMPORTANT SAFETY INSTRUCTION 4 TABLE OF CONTENTS 8 PACKAGE CONTENTS ..9 FEATURES 10 UNIT VIEW 11 GETTING STARTED Installing a Memory Card Powering your Digital Picture Frame Turning Your Photo Frame ON/OFF Connecting to a computer Main Menu Screen PHOTO Photo View ZOOM Slideshow Mode Bowser Mode CALENDAR SETUP PhabSetp.— CelendeSeLp.. SyslienSeSp. 12 12 12 13 13 13 14 14 14 14 14 18 17 ...........
PACK AGE CONTENTS Please make sure that the items shown below are Included in the package. Should an item be missing, please contact the local retailer from which you purchased this product. O LN° 1. DP Frame x 1 2. AC Adapter x 1 3. Kickstand x 1 4.
FEATURES 7" widescreen TFT LCD color display Displays JPEG, BMP photo files • Photo slideshow mode • Calendar and clock • Full-size USB port for use with flash memory drives • Wall-mountable design with detachable stand • Built-in memory SD, MMC, MS card slot
1. TFT Display 2. Minl-size USB port To connect with computer. 3. Full.*Lae USB port To connect with USB flash drives. 4. Ms/SCIAIMIC card slot Connect the Ms/SD/MMC card. 5. Power Jack Connect with the power source. 8. Menu Press to exit. On the Mein Menu Screen, press this button to move the cursor to the memory device list. 7. Direction buttons Press the lefUright button to move the cursor tett/right in menu setting and to turn pages in the full screen display mode and Calendar mode.
Metalling a Memory Card Your photo frame supports the following types of memory cards: • Memory Stick (MS) • Secure Digital (SD) • Multi Media Card (MMC) • USB Flash storage Drive Simply insert the memory card of your choice into its corresponding card slot located on the right panel of the photo frame.Take care to orient the card in the proper direction.
GETTING STARTED Turning Your Photo Frame On/Off To turn your photo frame on, set the Power Switch to the "On" position. To turn your photo frame off, set the Power Switch to the "Off' position. Connecting to a Computer Connect the photo frame to your computer with a USB cable. Upon connection: - Your computer will automatically recognize the memory cards installed in your photo frame. Icons representing your Installed memory cards will appear as "Removable Disk" when you open "My Computer".
Inserted: A card icon that is In-color Indicates that a memory card has been inserted(installed) in the corresponding slot. No card: A card icon that is grayed-out indicates that a memory card has not been installed in the corresponding slot and Is not available for use. Selected: A higlighted frame indicates that the card slot is selected. Only card slots with an installed memory card may be selected. The demo slideshow will automatically start in approximately 8 seconds if you don't press any button.
1. Rotation To rotate the picture, select this icon and press Enter button. Each sucessive press of Enter button will change the level of rotation as shown below: Rotation 90' 4 Rotation 180 4 Rotation 270".4 Rotation OFF 2. Zoom To zoom the picture, select this icon and press Enter button. Each sucessive press of Enter button will change the level of magnification as shown below: 125% 4 150% 4 175% 4 200% 4 225% 4 250% 4 ZOOM OFF 3.
Calendar To view time and date, select Calendar on the main menu screen and press Enter button to confirm. Then the calendar will shown as below. I,".1 1. You can adjust the time and date in Calendar setup menu, please refer to Calendar setup in the Setup menu. 2. There are three display modes available, you can press OK button to select the desired mode. 3. Press Up/Down button to view the previous/next month. 4.
Photo Setup IC. rn 1,,,I,,t:c:r nuteult r ,t,i∎ In Sets the photo display mode for entering the Photo Mode from the Main Menu. Display Mode Display Ratio SlIdeshow Duration a Slideshow Sets the • •to di- • Is ratio Sets the time interval of slideshow photos. Fit to Sets the slkleshow repeat Repeat n 5Sec• Viftr-Ir•ri4inwi Sets the slideshow effect MIMI. :: 1 Jill Calendar Setup 11,11 1. I .- n D.:f:Lilt sMIrriii • .
System Setup 11,1•1 language Backlight Brightness Conrast Saturation Hue Power On Power Off Auto boot time Auto Shut time Au to-power frequency Reset default setting . Version Inatr,e line 1 0,f11111 , thrly Sets the menu language of the photo frame. English Sets the backlight of the screen. Sets the brightness of the screen. Sets the Contrast of the screen. Sets the Saturation of the screen. Sets the Hue of the screen.
Using the Kickstand 1. Attach the kickstand to the mounting hole. 2.Tum the kickstand to the right to tighten it.
If you have a problem with this device, please read the troubleshooting guide below and check our website at wwx.cobyusa.com for Frequently Asked Questions (FAQs) and firmware updates. If these resources do not resolve the problem, please contact Technical Support. • The player does not turn on. • Make sure the unit has been powered on manually (I.e., the Power Switch has been physically set to the ON position). • Ensure that the power cord has been properly connected to the power outlet.
