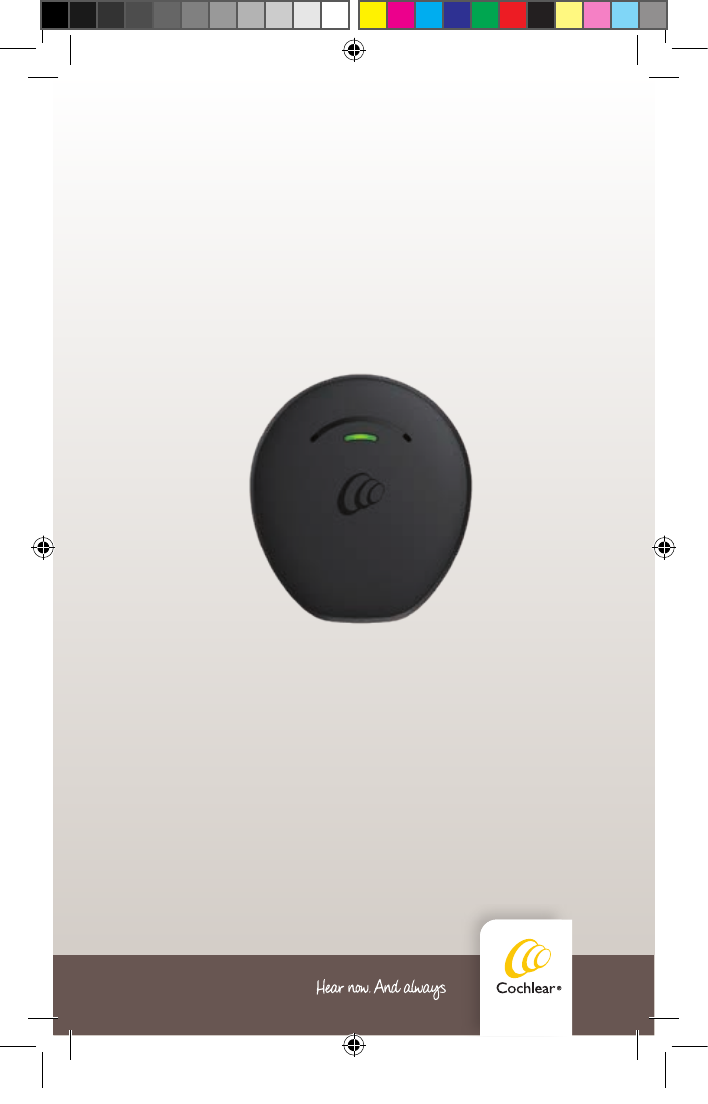

Kanso® 2 Sound Processor User Guide CP1150 D1694826_1-02_EN_CP1150_UG_Radio-Cert_JAPAN.
About Your Cochlear™ Kanso® 2 Sound Processor (model number: CP1150) works with your Cochlear implant to transfer sound to your ear. You can control your processor by: • using the Nucleus® Smart App • tapping on the front – see page 6 • using a Cochlear CR310 Remote Control (optional). Information on using the app or remote is available in their user guides. ii D1694826_1-02_EN_CP1150_UG_Radio-Cert_JAPAN.
Kanso® 2 Sound Processor Front 1 2 3 4 1 Microphone ports 2 Indicator light 3 Cochlear logo 4 Cover Back 1 2 1 Magnet 2 Socket cover KANSO® 2 SOUND PROCESSOR USER GUIDE D1694826_1-02_EN_CP1150_UG_Radio-Cert_JAPAN.
Charge your processor To recharge your processor you can: • place it in the Home Charger for charging overnight or • attach it to the Portable Charger (optional accessory) for charging while you’re on the go. More information and warnings are available in the Chargers User Guide. Portable Charger Home Charger 2 D1694826_1-02_EN_CP1150_UG_Radio-Cert_JAPAN.
Tapping CONTROL NUMBER OF TAPS Turn ON Double-tap – 2 taps Turn OFF Triple-tap – 3 taps Change program or audio source Double-tap – 2 taps • Tap on the Cochlear logo. • Use quick, firm taps – don’t press. TIP You can tap your processor while it is on or off your implant. KANSO® 2 SOUND PROCESSOR USER GUIDE D1694826_1-02_EN_CP1150_UG_Radio-Cert_JAPAN.
Turn on and off On: Double-tap (2 taps). Light flashes green as the processor turns on. Off: Triple-tap (3 taps). Light changes to steady orange as the processor turns off. NOTE Sound processor automatically turns on when placed on your implant and turns off when removed from your implant for two minutes (if enabled by clinician). 4 D1694826_1-02_EN_CP1150_UG_Radio-Cert_JAPAN.
Change program Double-tap (2 taps) to change program. Light flashes green as the program changes. Number of green flashes or beeps indicates the selected program. NOTE If double-tap to control audio sources is enabled you will be unable to double-tap to change progam. The Nucleus Smart App User Guide has information on where to change this setting. KANSO® 2 SOUND PROCESSOR USER GUIDE D1694826_1-02_EN_CP1150_UG_Radio-Cert_JAPAN.
Stream audio Double-tap (2 taps) to switch between audio sources. Light flashes blue as the audio source changes. Number of blue flashes or beeps indicates the selected program. NOTE If double-tap to control programs is enabled you will be unable to double-tap to change audio source. The Nucleus Smart App User Guide has information on where to change this setting. Each time you double-tap the processor, available audio sources are presented in order. DOUBLE-TAP AUDIO SOURCE 1st 2nd 3rd 4th...
Attach your processor Place the processor on your implant with the: • Cochlear logo, light and microphone ports facing up • straight edge facing down. CAUTIONS • Make sure you position your processor correctly to get the best performance, and so it does not fall off the implant. • If you have two implants, you must use the correct sound processor for each implant. KANSO® 2 SOUND PROCESSOR USER GUIDE D1694826_1-02_EN_CP1150_UG_Radio-Cert_JAPAN.
Attach a SoftWear pad If you experience discomfort, attach an adhesive Cochlear SoftWear™ pad to back of processor. 8 D1694826_1-02_EN_CP1150_UG_Radio-Cert_JAPAN.
Secure your processor You can attach a Kanso 2 Safety Line to reduce the risk of losing your processor. Press the safety line connector into the processor socket. Attach the clip to your clothing (or hairclip to your hair). KANSO® 2 SOUND PROCESSOR USER GUIDE D1694826_1-02_EN_CP1150_UG_Radio-Cert_JAPAN.
Lights Everyday use LIGHT WHAT IT MEANS … Processor flashes while receiving sound from microphones (Child mode only). Turning on and changing programs. Number of flashes indicates the number of the current program. … Processor flashes while receiving sound from audio source (Child mode only). Turning off processor. Alerts LIGHT WHAT IT MEANS … 10 Processor is off your head (or connected to the wrong implant). Processor battery is low. Recharge processor. Fault. Contact your clinician.
Specifications The Kanso 2 sound processor comprises: • Two omni-directional microphones for receiving sound. • Custom analogue and digital integrated circuits with digital signal processing (DSP) and bi-directional wireless communication capabilities. • Tri-colour visual indication of processor function or problem. • Tap interface allowing user control of key features. The internal battery provides power to the processor, which transfers energy and data to the implant.
COIL CHARACTERISTICS VALUE Operating voltage 2.33 V Operating frequency 5 MHz OPERATING CHARACTERISTICS VALUE/RANGE Sound input frequency range 100 Hz to 8 kHz Wireless technology Proprietary low power bi-directional wireless link Published commercial wireless protocol (Bluetooth Low Energy) RF frequency 2.4 GHz Input operating voltage 4.75 V to 5.
Wireless communication link The wireless communication link operates in the 2.4 GHz ISM band using GFSK (Gaussian frequency-shift keying), and a proprietary bidirectional communication protocol. It continuously switches between channels to avoid interference on any specific channel. • The remote control operates over 4 channels, over a distance of at least 2 metres from the processor.
Headband specifications HEADBAND MATERIALS Fabric 83% polyester, 17% elastane Thread 100% polyester Silicone strip, non-slip Silicone rubber Silicone strip backing tape 90% polyester, 10% spandex Hook and loop fastener 40% nylon, 60% polyester 14 KANSO® 2 SOUND PROCESSOR USER GUIDE D1694826_1-02_EN_CP1150_UG_Radio-Cert_JAPAN.
Other information Electromagnetic compatiblity (EMC) WARNING Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 in.) to any part of your Kanso 2 Sound Processor, including cables specified by the manufacturer. Otherwise, degradation of the performance of this equipment could result.
Certification and applied standards The Kanso 2 Sound Processor fulfils the essential requirements listed in Annex 1 of the EC directive 90/385/EEC on Active Implantable Medical Devices as per the conformity assessment procedure in Annex 2. The year in which authorisation to affix the CE mark was granted was 2020. It also fulfils the essential requirements of Directive 2014/53/ EU on Radio Equipment as per the conformity assessment procedure in Annex II.
KANSO® 2 SOUND PROCESSOR USER GUIDE D1694826_1-02_EN_CP1150_UG_Radio-Cert_JAPAN.indd 17 OTHER INFORMATION Class B device notice Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
ISED compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with ISED license-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.
Labelling symbols The following symbols may appear on your processor or remote components and/or packaging: Refer to instruction manual Specific warnings or precautions associated with the device, which are not otherwise found on the label Manufacturer M/N Model number Authorised representative in the European Community OTHER INFORMATION Catalogue number Serial number Batch code Date of manufacture Use by date Temperature limits CE registration mark with notified body number Radio compliance certi
Radio compliance certification for Korea By prescription Recyclable material Dispose of electrical components in accordance with your local regulations Type B applied part Ingress Protection Rating Ingress protection rating• Protected against dust penetration • Protected against failure from immersion in water Medical device Privacy and the collection of personal information During the process of receiving a Cochlear device, personal information about the user/recipient or their parent, guardian, carer a
OTHER INFORMATION D1694826_1-02_EN_CP1150_UG_Radio-Cert_JAPAN.
