EC3 Series

Coldroom Controllers

D A T A S H E E T

EC3-3_35041_EN_R13.docx 1 / 8 23.02.2012

The

EC3

33x

Series form a new generation of electronic

controllers for refrigeration and air conditioning.

The controllers feature a DIN rail mounted housing and a

separate optional display unit in the small industry standard

housing form factor. They off

er maximum functionality such as

superheat, temperature and defrost controller with built-

TCP/IP Ethernet

communications and WebServer

functionality. Any standard WebBrowser (e.g. Internet

Explorer

or Mozilla Firefox) can be used for monitoring or

parameter setting.

The version with Echelon LON

network interface is for use in

more complex systems, where different controllers must

communicate with each other.

Features

• Superheat control with self-adapting algorithm and driver

circuit for stepper motor driven Electrical Control Valves

EX4 … EX8

• Air temperature control

• Defrost and fan management

• Limitation of evaporating pressure (MOP)

• Feed-through of 4 … 20mA signal of evaporating pressure

transmitter to analogue output to operate multiple

controllers with a common pressure transmitter

• 2 digital inputs for compressor safety loop and coldroom

door contact

• 4 relay outputs for compressor, fan, defrost and alarm

• Support of two network technologies:

TCP/IP Ethernet with WebServer functionality allows

monitoring and configuration of controllers through a

standard WebBrowser (e.g. Internet Explorer

or Mozilla

Firefox)

or Echelon FTT10 LON

technology for monitoring and

configuration through a supervisory system such as the

ALCO Monitoring Server EMS

• Alarm messaging by email (EC3-332)

• Integral backup battery to close Electrical Control Valve in

case of power loss

• Electrical connection via plug-in type screw terminals

• Aluminum housing for DIN rail mounting

Features ECD-001 Display Unit

• Front panel mounted human interface for parameter and

status read-out and controller setup via keypad

• 2½ digit LED display with automatic decimal point

• Indicator LEDs for compressor, fan, heater and alarm

• Connection to EC3 Series via ECC-N10 or standard CAT5

patch cord with RJ45 connectors.

• Standard 71 x 29 mm cut-out dimensions

• IP65 protection class when mounted in front panel

Typical ordering package:

• EC3-332 Coldroom Controller with K03-330 Terminal Kit

• EX5-U21 Electrical Control Valve with EX5-N30 Cable

• ECD-001 Display Unit with ECC-N10 Cable

• ECT-323 Transformer

• PT5-07M Pressure Transmitter with PT4-M30 Cable

• ECN-S30 Air Temperature Sensor

• ECN-N30 Pipe Temperature Sensor

• ECN-F60 Fin Temperature Sensor

Selection Table Coldroom Controller

TCP/IP Ethernet

LON

Description Type Part No.

single unit

Part No.

Kit*

Type Part No.

single unit

Part No.

Kit*

Coldroom Controller ECV Stepper Motor Drive

EC3

332

807 632 808 013

EC3

331

807 631 808 012

*) Kit contains terminal kit, pressure transmitter PT5-07M with cable assembly, transformer 25VA, NTC sensors 6m fin, pipe and single insulated version

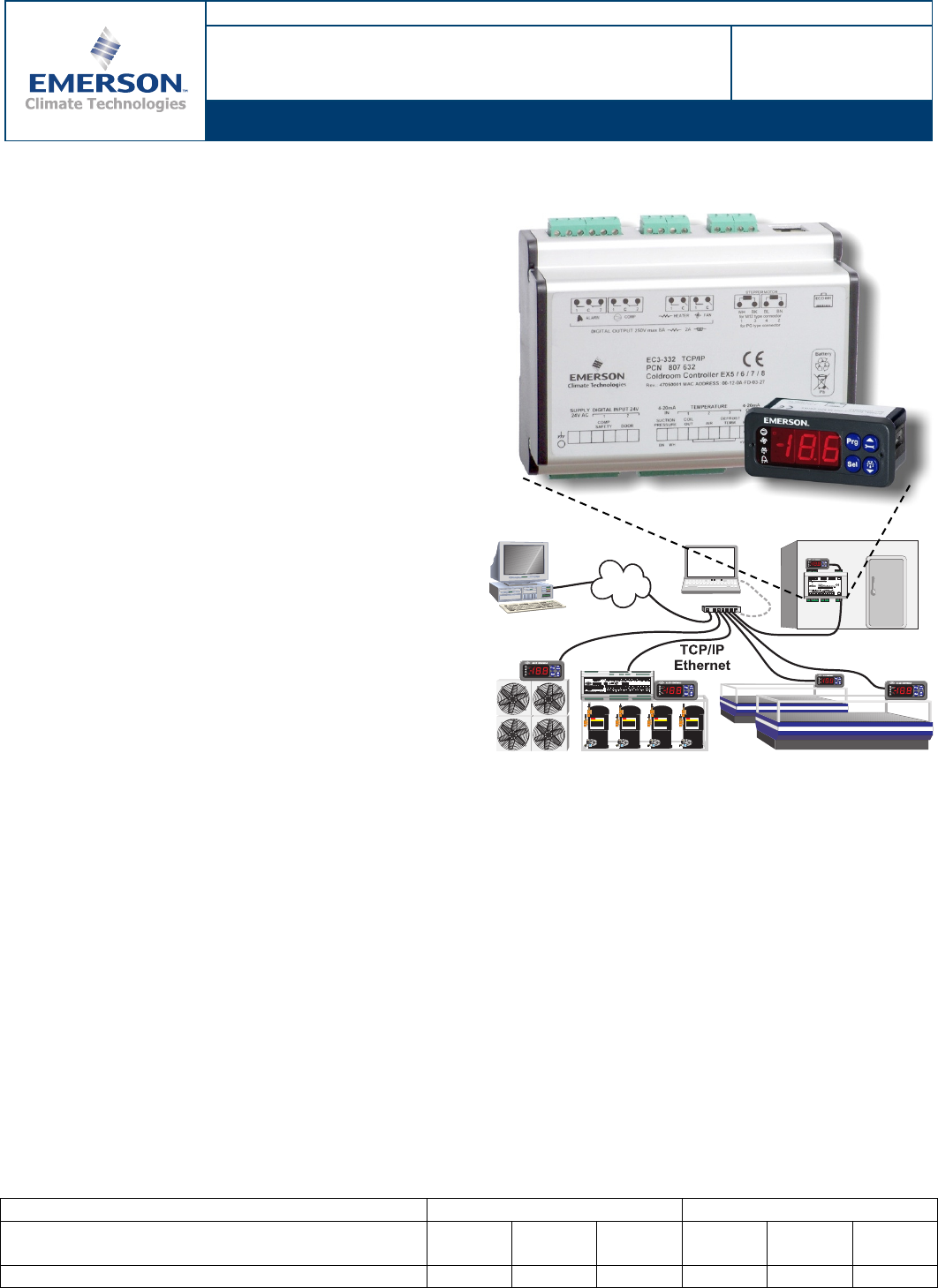

EC3 Series Coldroom Controller

with ECD-001 Display Unit

Summary of content (8 pages)

PAGE 1
EC3 Series Coldroom Controllers D A T A S H E E T The EC3-33x Series form a new generation of electronic controllers for refrigeration and air conditioning. The controllers feature a DIN rail mounted housing and a separate optional display unit in the small industry standard housing form factor. They offer maximum functionality such as superheat, temperature and defrost controller with built-in TCP/IP Ethernet communications and WebServer functionality. Any standard WebBrowser (e.g.
PAGE 2
EC3 Series Coldroom Controllers D A T A S H E E T Introduction The EC3-33x series Controllers are for use in commercial refrigeration systems, primarily to control the refrigeration circuit of coldrooms. This includes the control of the refrigerant flow to optimize superheat, maintain air temperature and the defrost management. Alco Controls EX4…EX8 Electrical Control Valves must be used in conjunction with the EC3-33x units to modulate refrigerant flow.
PAGE 3
EC3 Series Coldroom Controllers D A T A Defrost EC3-33x Series controllers allow local defrost management through the built-in defrost timer but also permit remote defrost scheduling through the networking connection. For remote defrost details please consult the operating instructions.
PAGE 4
EC3 Series Coldroom Controllers D A T A The top fields indicate the status of compressor, defrost heater, fan and alarm output relay (left) and the status of compressor alarm loop and door switch inputs (right). The fields below show temperatures and pressure of all sensors attached to the controller as well as the setpoints for air temperature and superheat. The coil-in temperature is calculated from the saturation pressure of the used refrigerant.
PAGE 5
EC3 Series Coldroom Controllers D A T A Alarm and Maintenance Functions EC3-33x provides many alarm codes to facilitate diagnosis. Limit violation alarms are associated with temperature and pressure set point (high alarm, low alarm, sensor failure). The serial alarm loop of the compressor can be connected to a digital input. It will monitor compressor operation and signal shutdown in case the serial alarm loop is open due to high motor temperature or excessive pressure etc.
PAGE 6
EC3 Series Coldroom Controllers D A T A S H E E T Accessories Terminal Kits for EC3 Series: Terminal Kit for EC3-33x series ECD Series Display Unit: Display for EC3-33x Connection cable EC3 to ECD Type K03-331 PCN. 807 648 ECD-001 ECC-N10 ECC-N30 ECC-N50 807 641 807 860 807 861 807 862 K03-331 1.0 m 3.0 m 5.0 m ECD-001 Electrical Control Valves with Stepper Motor Drive* 1 … 11,5kW EX4-I21 Nominal capacity R404A *) see datasheet EX48_35008.
PAGE 7
EC3 Series Coldroom Controllers D A T A S H E E T Technical Data EC3 Series Controller Supply voltage ECD-001 Display Unit 24VAC ±10%, 50/60Hz Class II only 6.3mm spade earth connector Power consumption 25VA max. including EX4 … EX7 28VA max. including EX8 Plug-in connector size Removable screw version wire size 0.14 … 1.5mm2 Communication Temperature storage operating TCP/IP Ethernet ® LON FTT-10 (EC3-332) (EC3-331) -20 … +65°C 0 … +60°C 1….
PAGE 8
EC3 Series Coldroom Controllers D A T A S H E E T Physical Dimensions Drawings (mm) EC3-Series Controller ECD-001 Display Unit ECT-323 Transformer ECT-623 Transformer EMERSON is not to be held responsible for erroneous literature regarding capacities, dimensions, applications, etc. stated herein. Products, specifications and data in this literature are subject to change without notice.
