CLEANING AND PREVENTIVE MAINTENANCE

105-169-03

Printhead Assembly Replacement

NOTE: IF THE C SERIES PRINTER IS WITHIN THE WARRANTY PERIOD, THE USER

MUST SEND THE PRINTER IN TO AN AUTHORIZED REPAIR CENTER. ALL USER’S

MUST NOT REPLACE THE PRINTHEAD ASSEMBLY OR PLATEN ASSEMBLY IF THE

PRINTER IN UNDER WARRANTY.

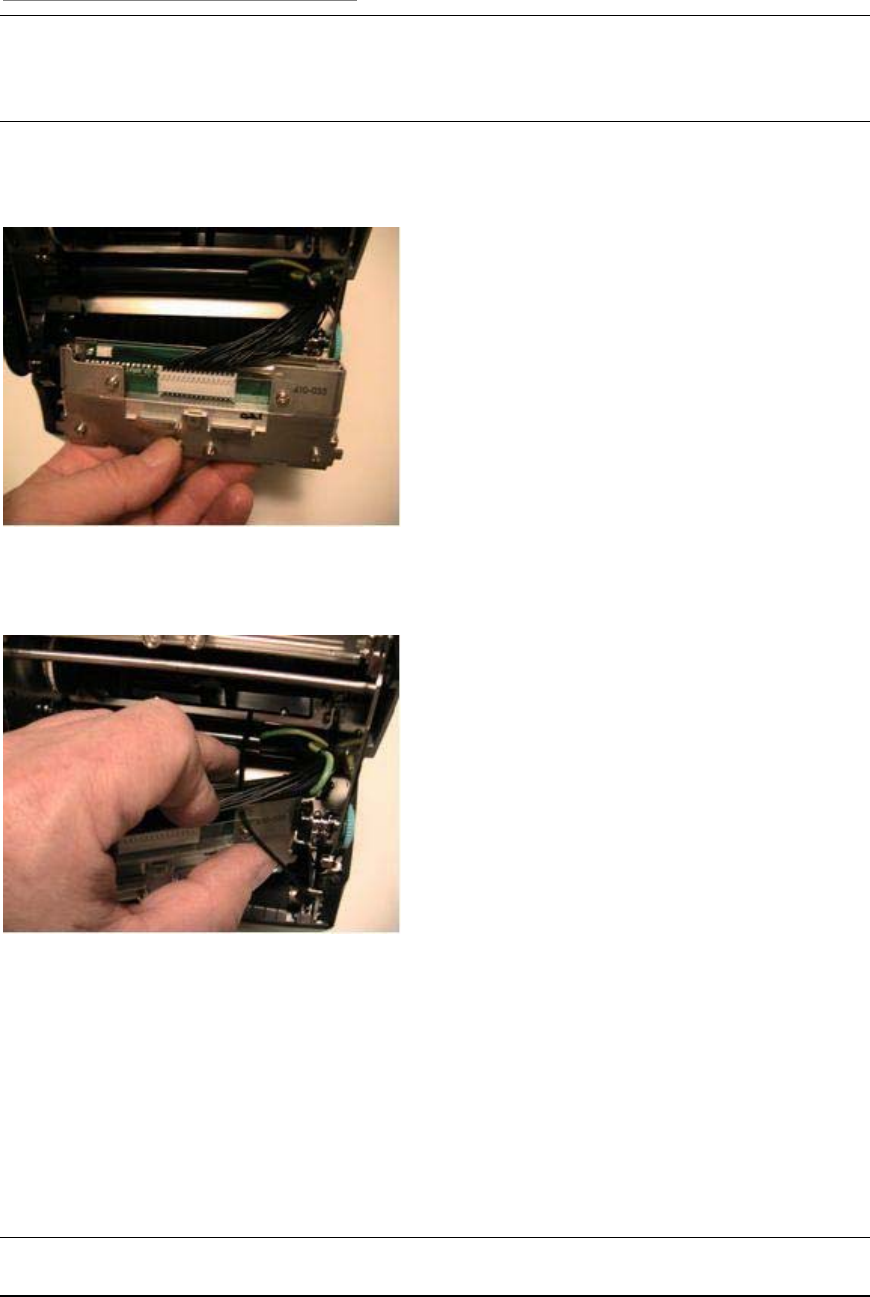

1. Attach the new printhead assembly to the printhead harness, and attach the

LED harness to the LED connector.

2. Then, position a cable tie through the hole in the printhead bracket and

around all wires.
