CLEANING AND PREVENTIVE MAINTENANCE

105-169-03

9. Remove the front bezel. See the front bezel removal section of the enclosure

removal section.

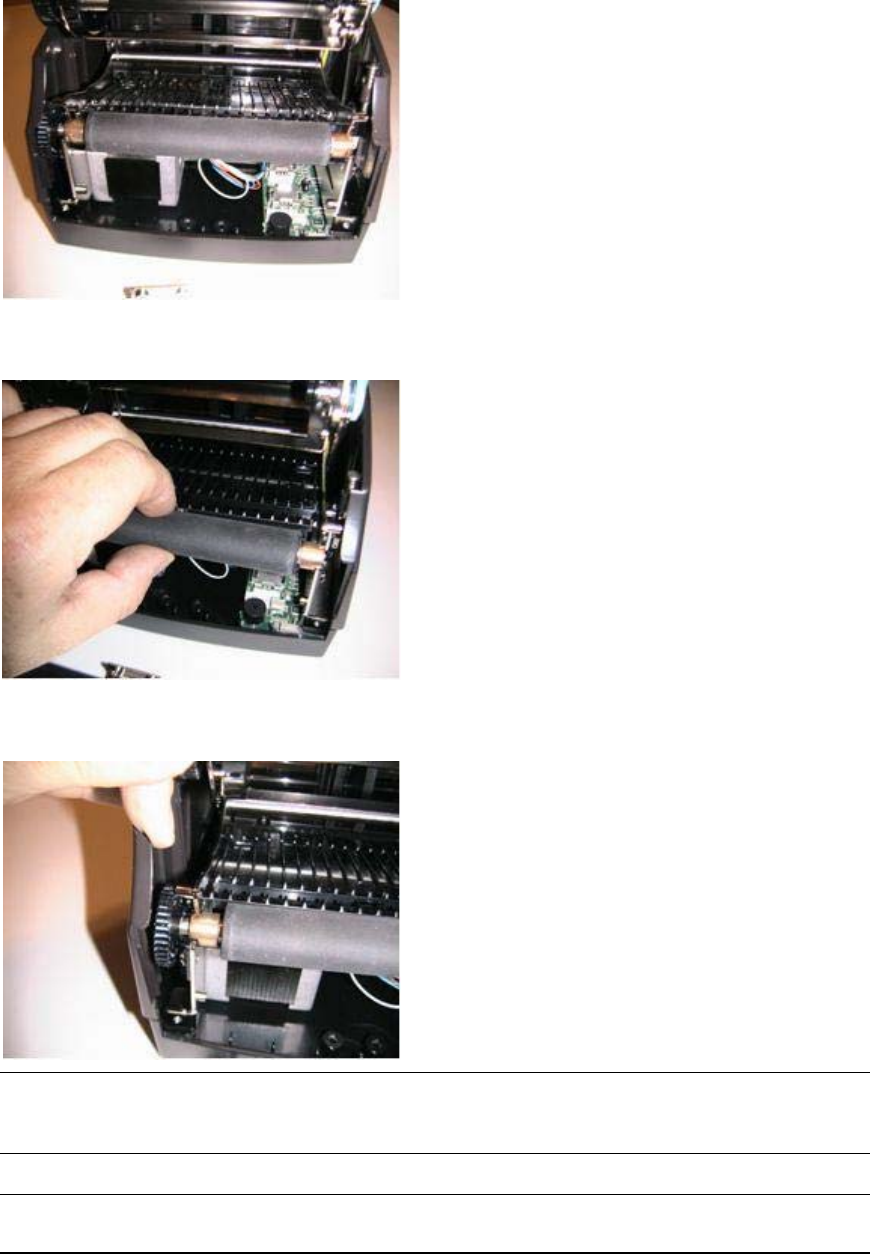

10. Slide the right side platen bearing past its plastic snap, toward the front of

the printer.

11. Slightly bias the enclosure away from the left side of the platen. Slide the left

side of the platen out of its plastic snap, toward the front of the printer.

CAUTION: BE CAREFUL NOT TO LOSE THE BEARING FROM THE RIGHT SIDE OF

THE PLATEN. THERE ARE NO RETENTION FEATURES WHICH WILL HOLD THE

BEARING ON THE PLATEN SHAFT AFTER THE PLATEN HAS BEEN REMOVED.
