Next, insert the ribbon supply roll. Lift the ribbon supply roll, as shown in Figure 2-26,

with one hand as it currently is positioned with the Cognitive leader text showing.

Examine the ends of the ribbon supply roll and notice the notches on the roll. These

notches fit into the printer. Refer to Figure 2-27 for clear pictures of the notches.

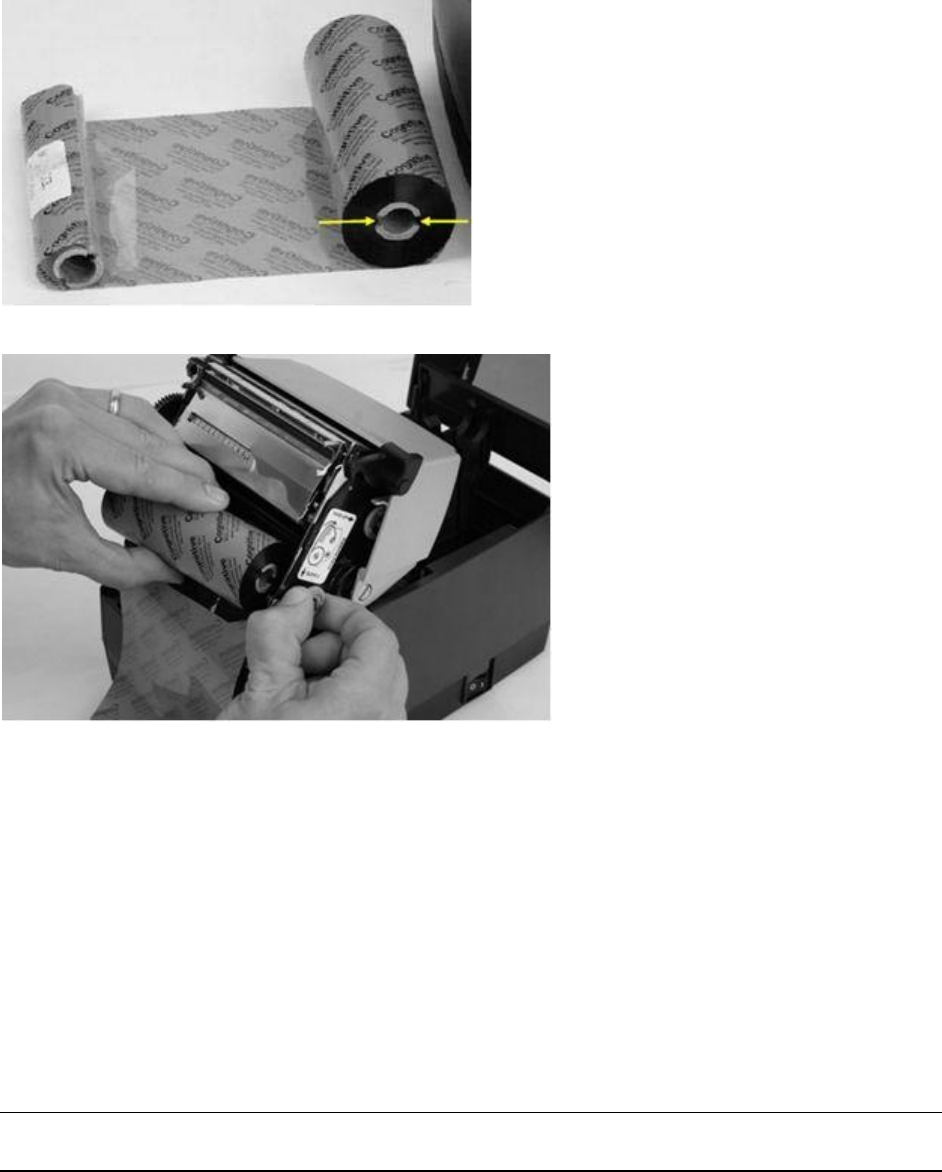

Figure 2-26. Ribbon Supply Core Notches

Figure 2-27. Lining up the Ribbon Supply Core Notches with the Supply Spindle Notches
