Next, install the ribbon take up roll. Examine the ends of the ribbon take up core and

notice the notches on the ribbon core. These notches fit into the printer. Refer to Figure

2-32 for clear pictures of the notches. Lift the ribbon take up roll as shown in the

figures below.

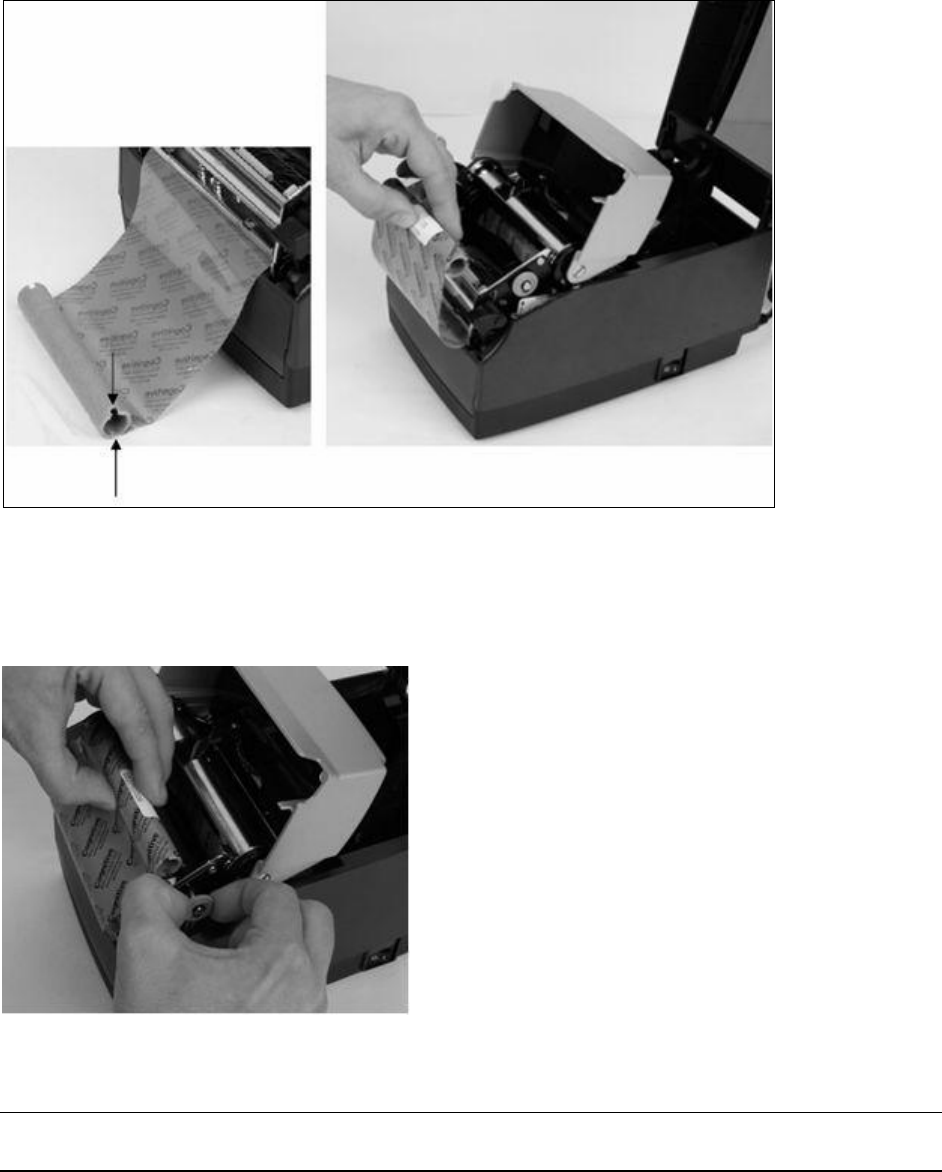

Figure 2-32. Take up Roll Notches and Loading the Take Up Roll

Pull gently on the green take up spindle to insert the ribbon take up roll into place. Line

up the notches on the ribbon take up core with the printer take up spindle notches to

secure the take up roll into place.

Figure 2-33. Pulling the Take Up Spindle Out to Insert Take Up Roll
