To initially set the media guides to the proper setting, try to push either guide to the

outside of the printer. If the guide does not move, lift up slightly on the green lock until

it stops in the upright position. Move the media guide to the outside of the printer as

shown in Figure 2-41.

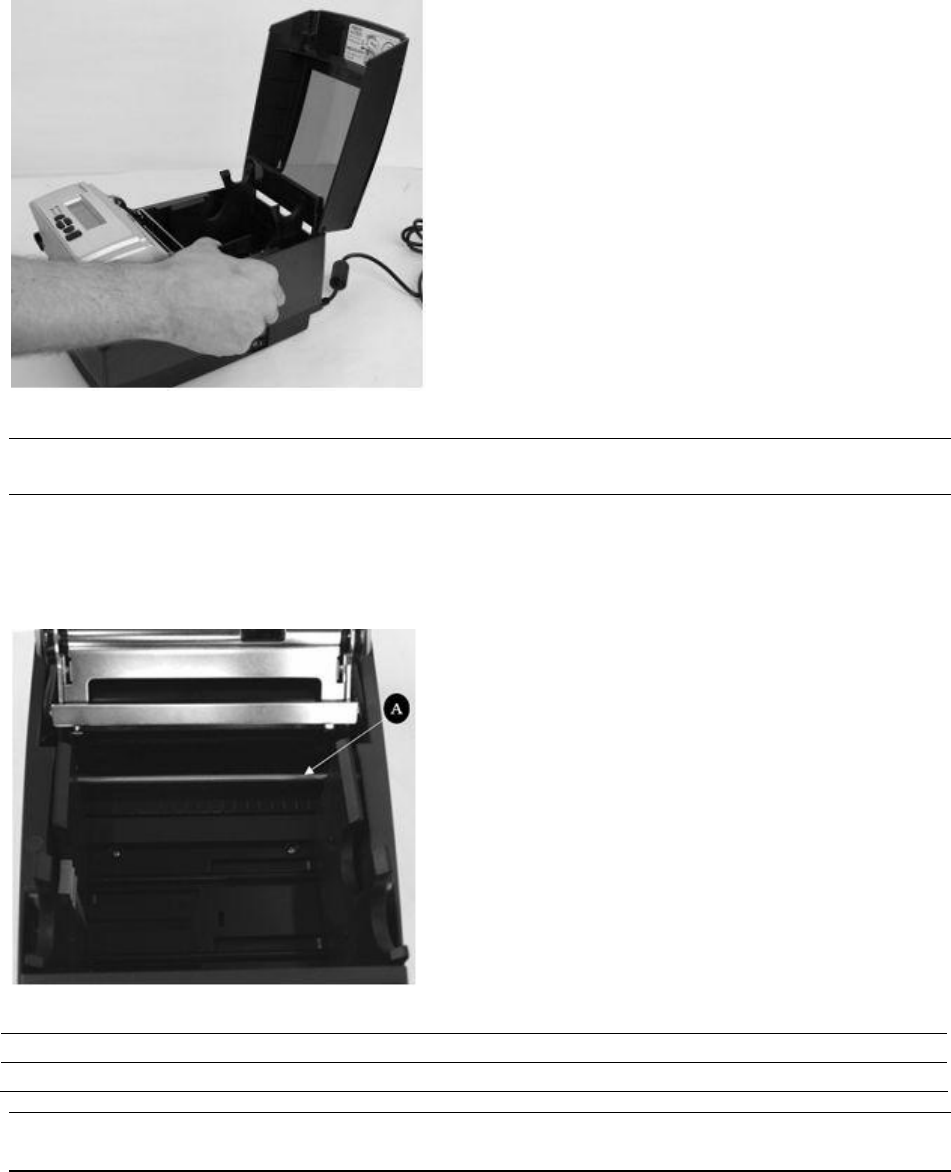

Figure 2-41. Spread the media guides apart

NOTE: THE LOCK CAN BE REMOVED IF IT IS PULLED UP TOO HARD. IF THIS HAPPENS, RE-

INSERT THE LOCK IN THE MEDIA GUIDE.

Locate the media guide bar in the rear of the mechanism, indicated by the arrow in

Figure 2-42 below. The media must be placed under the media guide bar, or media

wandering can occur.

Figure 2-42. C Series Top View of Media Guide from Behind Printer

Device Use

A – Media guide (silver bar) Guides the labels through the printer
