Once the guides are against the sides of the roll, push the roll down in the slot as shown
in Figure 2-46. This locks the media guide in the proper position. The media should look
as shown.

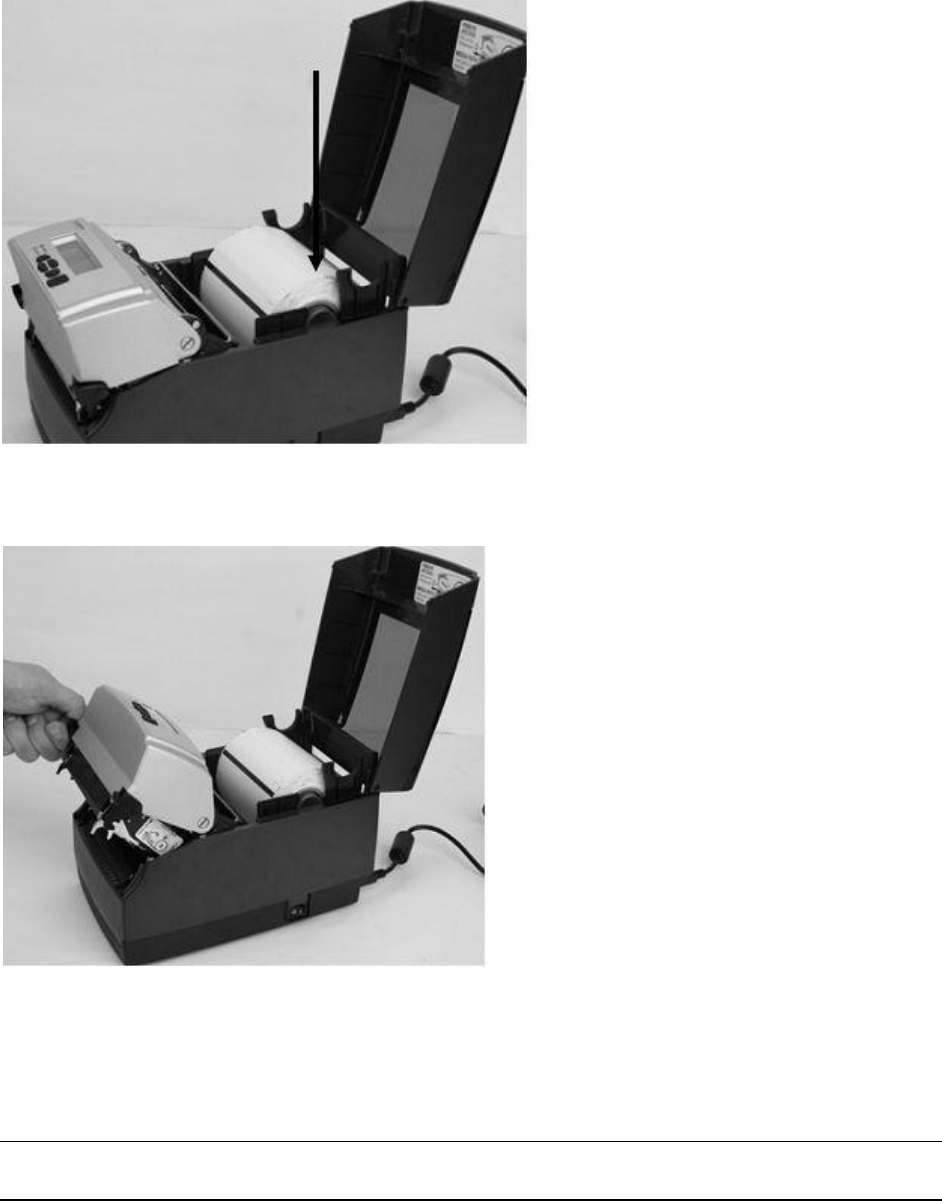

Figure 2-46. Push Down on the Right Side of the Roll to Lock the Media Guide
Lift the mechanism as shown in Figure 2-47.
Figure 2-47. Lift the Mechanism
