If the locking tab is in the locked position, unlock it. Then, place a spindle in the core of

the media roll, and position it in the printer, print side up, as shown in Figure 2-59 and

Figure 2-60.

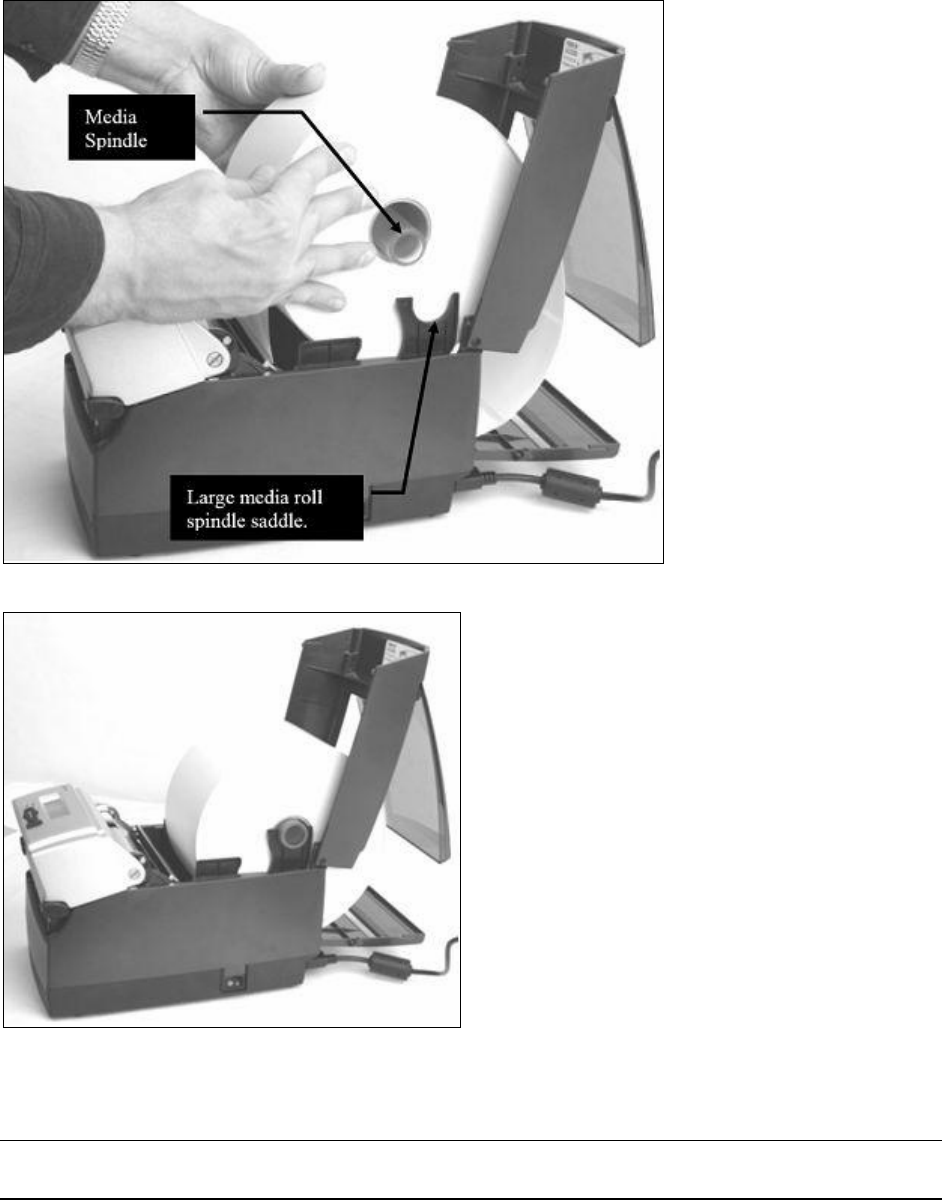

Figure 2-59. Loading Large Media Roll, Print Side Up

Figure 2-60. Large Media Roll in Position
