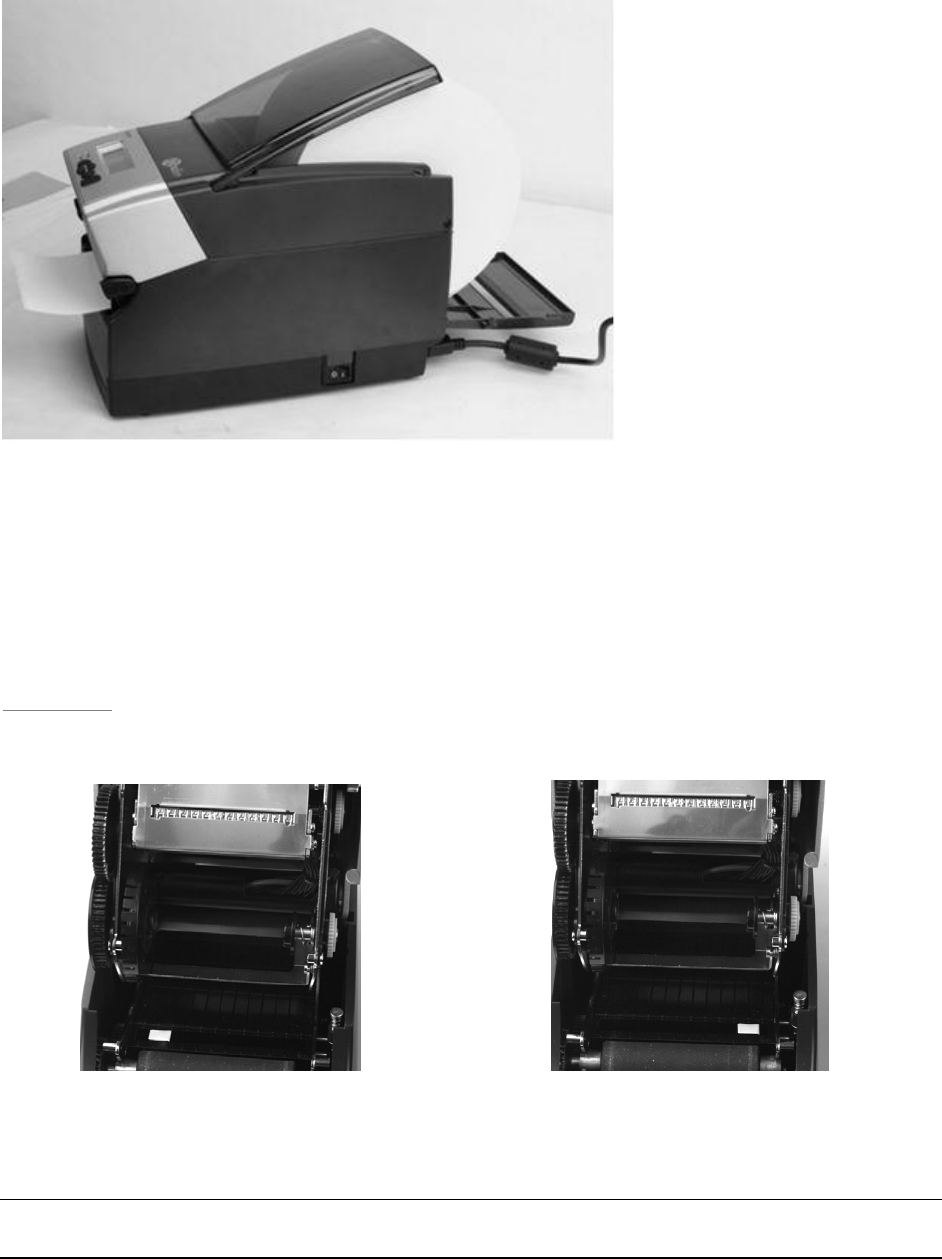

Close the top cover and let the dust cover rest on the large media roll.

Figure 2-61. Closing the Top Cover

User Adjustable Sensor

The C-Series printers have an adjustable index sensor system. By moving the reflective sensor

laterally, shown in the next picture, the sensor system can accommodate a wide range of media

index mark positions. The sensor has a spring detent feature. To adjust it to the position you

require, simply slide it in its channel until it aligns with the feature you are trying to index.

Gap Mode

If you have a 2” wide printer, then the gap sensor is adjustable the entire width of the printer

media path. See both pictures below.

2” Printer with extreme settings of gap sensor positions. Sensor is highlighted with white to better show

position.
