User`s manual

CLEANING AND PREVENTIVE MAINTENANCE

105-169-03

Printhead Assembly Removal and Replacement

NOTE: IF THE C SERIES PRINTER IS WITHIN THE WARRANTY PERIOD, THE USER

MUST SEND THE PRINTER IN TO AN AUTHORIZED REPAIR CENTER. ALL USER’S

MUST NOT REPLACE THE PRINTHEAD ASSEMBLY OR PLATEN ASSEMBLY IF THE

PRINTER IN UNDER WARRANTY.

Printhead Assembly Removal

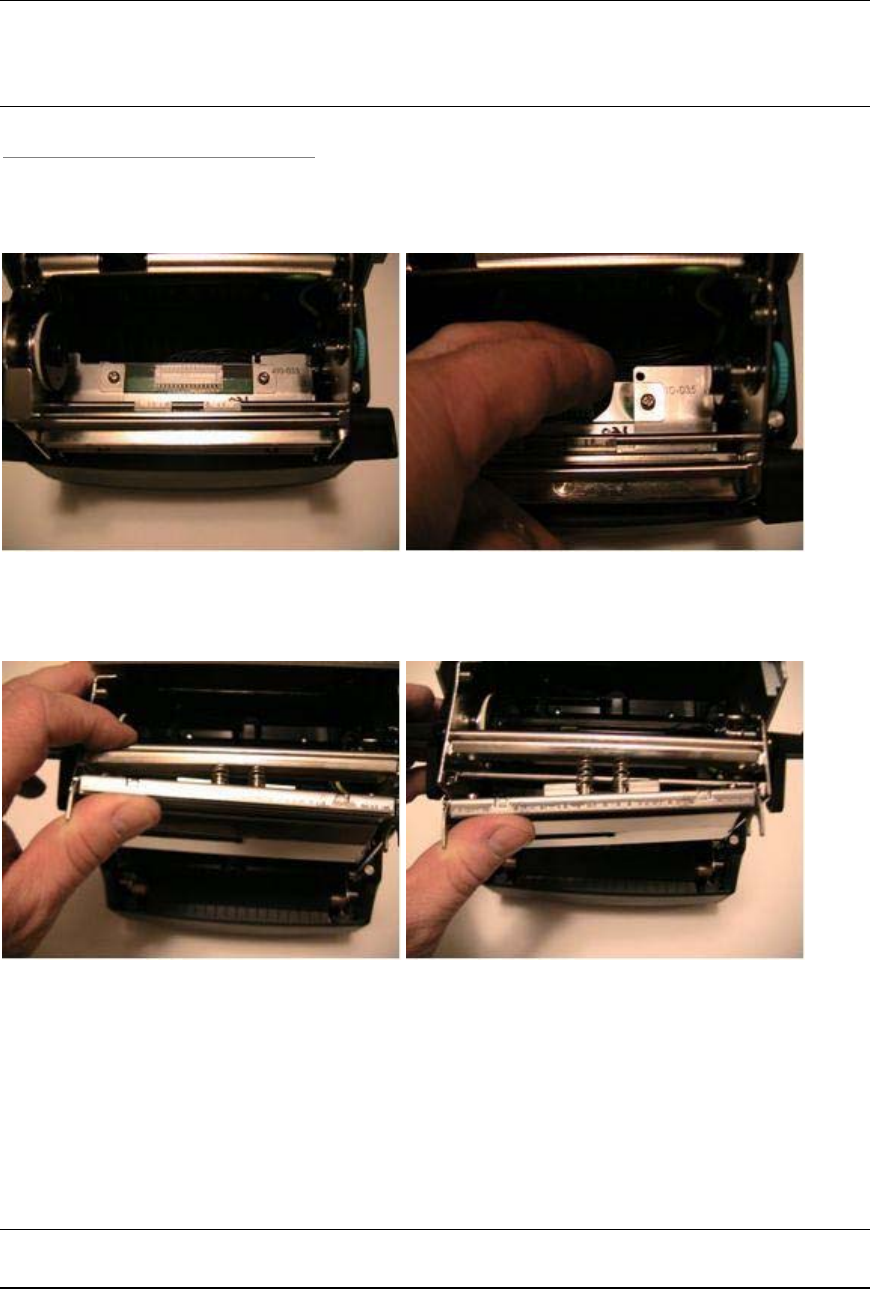

1. Open the User Interface Cover, and carefully cut the cable tie located on the

right hand side of the printhead bracket.

2. Remove the printhead assembly from the mechanism by lifting the left side

printhead bracket tab off of the mechanism platform as shown.
