Controls, Indicators, and Connectors

Controls and indicators for the C Series printer are located on the front panel and

right side of the printer. Cxi printers also have an LCD display on the user

interface.

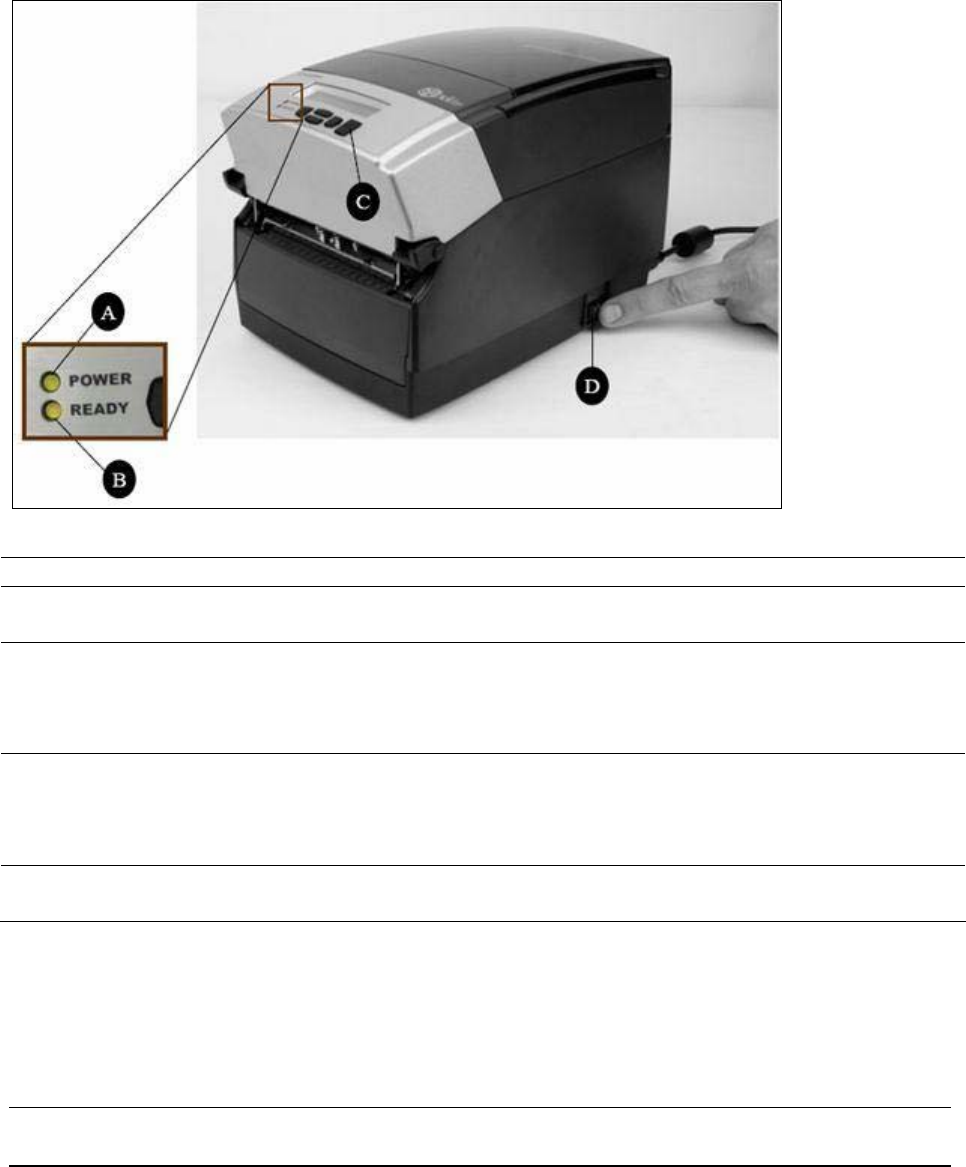

Figure 2-12. C Series Printer Controls and Indicators

Device Primary Function Use

A - POWER

light

Shows power status ON – printer on and ready to print

OFF – no power applied

B - READY

indicator

Shows printer status GREEN – printer ready to accept data

RED – printer error, empty media roll, or paused

operation during batch mode processing

OFF – no power applied

C - FEED

button

Advances print media Press to advance media

Press and hold while turning unit on to initiate self

test and print current configuration

D - ON/OFF

switch

Controls printer power Press to turn printer on and off
