When the ribbon feels secure, gently push and rotate the green supply spindle

clockwise, while holding the supply clutch hug, until the ribbon seats properly.

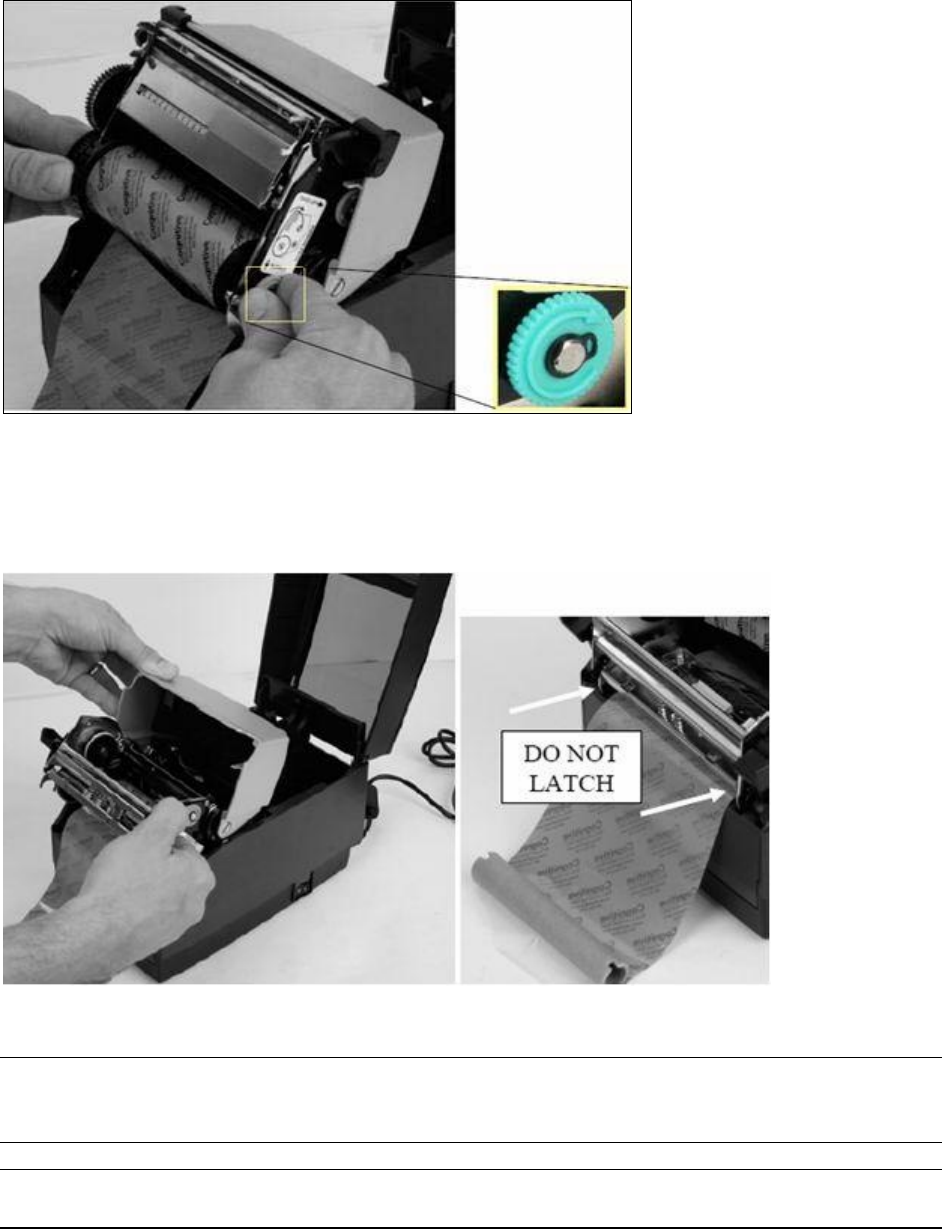

Figure 2-30. Supply spindle Rotation to Secure Supply Roll In Place

Once the ribbon supply roll is loaded, gently lower the printhead mechanism down with

one hand while holding the user interface cover with the other hand. DO NOT LATCH

the printhead mechanism. Refer to Figure 2-31.

Figure 2-31. Separating and Lowering the Printhead Mechanism from the User Interface Without

Latching the Mechanism

NOTE: IF THE PRINTHEAD MECHANISM LATCHES, A CLICKING NOISE WILL SOUND. IF THE

PRINTHEAD MECHANISM IS LATCHED BY MISTAKE, PUSH UP THE BLACK PRINTHEAD

LATCHES TO RELEASE THE PRINTHEAD MECHANISM AS SHOWN IN

FIGURE 2-24.
