To install the wiring for the
in.xe spa control, you'll need a
Phillips screwdriver and a fl at
screwdriver.
Loosen the 2 screws of the Spa
Pack door and open it.
Remove 5 1/2" of cable
insulation.
Connect the bonding conduc-
tor to the bonding lug on the
front of the in.xe Spa Pack
(a grounded electrode conduc-
tor shall be used to connect
the equipment grounding con-
ductors).

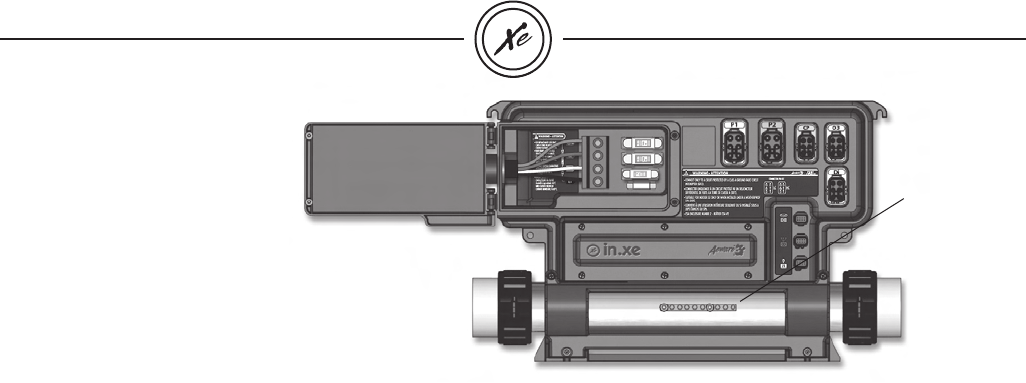

bonding lug
Strip away 1" of each wire
insulation.
Pull the cable through the
cutout of the box and secure it
with a strain relief (1" NPT strain
relief; hole diameter: 1.335").
Make sure that only the uncut
sheathing is clamped at this
opening.
Push the color-coded wires
into the terminals as indicated
on the sticker and use the fl at
screwdriver to tighten the
screws on the terminals.
After making sure wire connec-
tions are secure, push them
back into the box and close the
door. Tighten the 2 screws of
the Spa Pack door.
Electrical wiring
North American model in.xe
Electrical wiring
