Table Of Contents

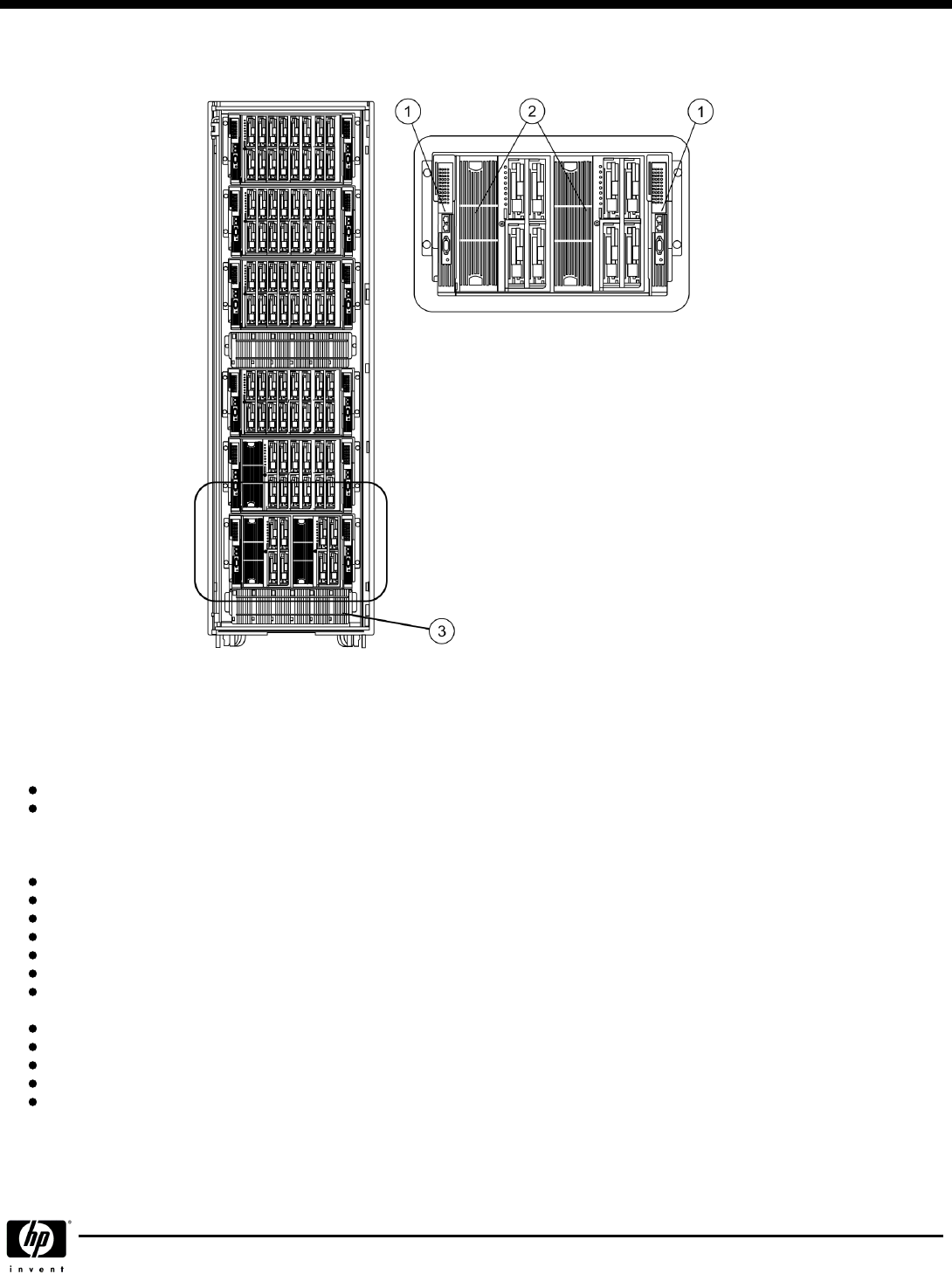

42U Rack with ProLiant BL p-Class System Installed

42U Rack with ProLiant BL p-Class System Installed42U Rack with ProLiant BL p-Class System Installed

42U Rack with ProLiant BL p-Class System Installed

BL p-Class Interconnects (2) in BL p-Class server blade enclosure (interconnect switch shown)

BL40p server blades (2) in BL p-Class server blade enclosure

BL p-Class power enclosure with hot-plug power supplies (6)

What's New

What's NewWhat's New

What's New

Intel® Xeon MP FC-PGA 2.8 GHz\2MB or 2.0 GHz\1MB processor (quad capability)

GbE2 Interconnect Switch option for Gigabit Ethernet network adapter consolidation and future layer 3-7 and 10 Gigabit Ethernet expandability

ProLiant BL40p server blade includes:

ProLiant BL40p server blade includes:ProLiant BL40p server blade includes:

ProLiant BL40p server blade includes:

Intel Xeon MP FC-PGA 2.8GHz\2MB, 2.0GHz\1MB, 2.0 GHz\2MB or 1.50 GHz\1MB processor (quad capability)

ServerWorks GC-LE Chipset

512-MB or 1024 MB of 2-way interleaved PC2100 ECC DDR (2 x 1 Interleaved Memory), expandable to 12 GB

Advanced Memory Protection with Online Spare

Five NC7781 PCI-X Gigabit NICs (embedded) standard

One additional 10/100T NIC dedicated to Integrated Lights-Out (iLO) Management

Smart Array 5i Plus Controller with battery-backed write cache (integrated on system board) standard on 2.8GHz/2M and 2.0GHz/2M models,

optional on 1.5GHz/1M and 2.0GHz/1M models

Wide Ultra3 SCSI Drive Cage standard supports up to four 1" hot plug hard drives

Two PCI-X slots (64b/100MHz capable) for redundant SAN connectivity

Integrated Lights-Out (iLO) Management (ASIC on motherboard)

Plugs vertically into p-Class server enclosure

Up to 12 BL40p blades fit in 42U rack

QuickSpecs

HP ProLiant BL40p Server Blade

HP ProLiant BL40p Server BladeHP ProLiant BL40p Server Blade

HP ProLiant BL40p Server Blade

Overview

DA - 11562 North America — Version 10 — September 8, 2003

Page 1

Summary of content (31 pages)

PAGE 1
QuickSpecs HP ProLiant BL40p Server Blade Overview 42U Rack with ProLiant BL p-Class System Installed 1. BL p-Class Interconnects (2) in BL p-Class server blade enclosure (interconnect switch shown) 2. BL40p server blades (2) in BL p-Class server blade enclosure 3. BL p-Class power enclosure with hot-plug power supplies (6) What's New Intel® Xeon MP FC-PGA 2.8 GHz\2MB or 2.
PAGE 2
QuickSpecs HP ProLiant BL40p Server Blade Overview What's Needed ProLiant BL p-Class Server Blade Enclosure: Server blades and interconnects slide into p-Class server blade enclosures for network connection and power Server blade enclosure is 6U high and 10 bays across. The server blade enclosure bays consist of 2 (outer) interconnect bays and 8 server bays.
PAGE 3
QuickSpecs HP ProLiant BL40p Server Blade Overview BL p-Class Server Blade Enclosure + OR Patch Panel (shown) or Patch Panel 2 GbE Interconnect Switch or GbE2 Interconnect Switch (fiber or copper-based) BL p-Class Interconnects + OR Facility DC BL p-Class power enclosures and power supplies + DA - 11562 North America — Version 10 — September 8, 2003 Page 3
PAGE 4
QuickSpecs HP ProLiant BL40p Server Blade Overview OR Scalable bus bar OR BL p-Class power distribution Bus boxes Configuration Steps For a complete configuration of the ProLiant BL40p, do the following: 1. Select a BL40p server blade: Single Xeon MP 1.5GHz processor, 512-MB RAM (2 x 256MB) (293461-B21) or Two Xeon MP 2.0 GHz processors, 1-GB RAM (2 X 512MB) (293462-B21) (NOTE: NOTE: Additional options include processors, memory, and PCI-X HBAs.) PLUS 2.
PAGE 5
QuickSpecs HP ProLiant BL40p Server Blade Overview BL p-Class C-GbE Interconnect Kit (with 4 RJ-45 10/100/1000 T/TX/T and 4 RJ-45 10/100 T/TX external ports (249655-B21) or BL p-Class F-GbE Interconnect Kit (with 4 LC 1000 SX and 8RJ-45 10/100 T/TX external ports) (279720-B21) PLUS 4. Select BL p-Class power enclosure and power supplies based on configuration. Use p-Class sizing tool to help determine power configuration: http://h30099.www3.hp.com/configurator/powercalcs.
PAGE 6
QuickSpecs HP ProLiant BL40p Server Blade Standard Features (Server Blade) ProLiant BL40p Server Blade Processor One of the following depending on Model: Xeon MP processor 2.8 GHz/2MB Xeon MP processor 2.0 GHz/1MB Xeon MP processor 2.0 GHz/2MB Xeon MP processor 1.50 GHz/1MB Upgradability Upgradable to quad processing Cache Memory 2-MB Level 3 Cache (on the 2.0GHz Models) 1-MB Level 3 Cache (on the 1.
PAGE 7
QuickSpecs HP ProLiant BL40p Server Blade Standard Features (Server Blade Enclosure and Interconnects) ProLiant BL p-Class Server Blade Enclosure and Interconnects Proliant BL p-Class Server 6U (10.5-inch), 19-inch wide Blade Enclosure Holds up to 2 ProLiant BL40p server blades; 8 ProLiant BL20p server blades; or a combination of both.
PAGE 8
QuickSpecs HP ProLiant BL40p Server Blade Standard Features (Server Blade Enclosure and Interconnects) ProLiant BL p-Class Interconnect Switch Option Provides up to a 32 to 1 server networking cable reduction per server enclosure depending on the mix of BL20p, BL20p G2, and BL40p servers. Each interconnect switch (two per enclosure) reduces up to sixteen internal server network (NICs) ports to six external ports (four on a modular rear mounting interconnect module and two on the switch front panel).
PAGE 9
QuickSpecs HP ProLiant BL40p Server Blade Standard Features (Server Blade Enclosure and Interconnects) Required Network Cabling 10Base-T Categories 3, 4 or 5 UTP (100 meters) EIA/TIA-568 100-ohm STP (100 meters) 100Base-TX Category 5 UTP (100 meters) EIA/TIA-568 100-ohm STP (100 meters) 1000Base-T Category 5 UTP (100 meters) EIA/TIA-568 100-ohm STP (100 meters) 1000Base-SX 50/125 µm Multimode Fiber, 400 MHz/Km (500 meters) 50/125 µm Multimode Fiber, 500 MHz/Km (550 meters) 62.
PAGE 10
QuickSpecs HP ProLiant BL40p Server Blade Standard Features (Power System and Rack Information) ProLiant BL p-Class Power NOTE: To determine power configuration please refer to the ProLiant BL p-Class Overview and Planning Whitepaper and System and Rack sizing tool, please see the following URL: information http://h30099.www3.hp.com/configurator/powercalcs.asp NOTE: This Web site is available in English only. ProLiant BL p-Class Power 3U (5.25-inch), 19-inch wide, 29-inch deep (0.48-meter wide, 0.
PAGE 11
QuickSpecs HP ProLiant BL40p Server Blade Standard Features ProLiant Essentials Foundation Pack Software Optional ProLiant Essentials Value Packs Optional software offerings that selectively extend the functionality of an Adaptive Infrastructure to address specific business problems and needs: Rapid Deployment Pack – an automated solution for multi-server deployment and provisioning, enabling companies to quickly and easily adapt to changing business demands.
PAGE 12
QuickSpecs HP ProLiant BL40p Server Blade Standard Features OS Support Microsoft® Windows 2000 Advanced Server Red Hat Linux 8.0 Red Hat Enterprise Linux AS SuSE Linux Enterprise Server 7 United Linux Microsoft Windows Server 2003 NOTE: For a complete and up-to-date listing of supported OSs and versions, please visit our OS Support Matrix at: ftp://ftp.compaq.com/pub/products/servers/os-support-matrix-310.pdf.
PAGE 13
QuickSpecs HP ProLiant BL40p Server Blade Standard Features Availability Power redundancy: Redundant AC feeds into power enclosures, redundant DC feeds from power enclosure to server blade enclosures, 1 + 1 redundant power supplies Four hot-plug SCSI hard drive bays and integrated RAID (Smart Array 5i Plus Controller with 64-MB total Memory on the 5i Plus Memory Module) on every server blade.
PAGE 14
QuickSpecs HP ProLiant BL40p Server Blade Standard Features Rack Airflow Requirements Rack 9000 and 10000 series Cabinets The increasing power of new high-performance processor technology requires increased cooling efficiency for rackmounted servers. The 9000 and 10000 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.
PAGE 15
QuickSpecs HP ProLiant BL40p Server Blade Models ProLiant BL40p P2.82MB, 1GB (2P) 336119-B21 ProLiant BL40p P2.01MB, 512MB (1P) 336118-B21 ProLiant BL40p P1.51MB, 512MB (1P) 293461-B21 ProLiant BL40p P2.02MB, 1GB (2P) 293462-B21 Processor(s) (2) Xeon MP 2.
PAGE 16
QuickSpecs HP ProLiant BL40p Server Blade Options ProLiant BL40p Unique Options ProLiant Essentials Value Pack Software Xeon MP 2.8GHz 2M Processor Option Kit 336121-B21 Xeon MP 2.0GHz 1M Processor Option Kit 336120-B21 Xeon MP 1.5GHz 1M Processor Option Kit 309330-B21 Xeon MP 2.0GHz 2M Processor Option Kit 309331-B21 ProLiant p-Class Diagnostic Station Upgrade Kit for the BL40p 309329-B21 Rapid Deployment Pack, 10 User, V1.
PAGE 17
QuickSpecs HP ProLiant BL40p Server Blade Options Hard Drives Wide Ultra320 – Universal Hot Plug 146.8-GB 10,000 rpm U320 Universal Hard Drive (1") 286716-B22 72.8-GB 10,000 rpm U320 Universal Hard Drive (1") 286714-B22 36.4-GB 10,000 rpm U320 Universal Hard Drive (1") 286713-B22 72.8-GB 15,000 rpm U320 Universal Hard Drive (1") 286778-B22 36.4-GB 15,000 rpm U320 Universal Hard Drive (1") 286776-B22 18.
PAGE 18
QuickSpecs HP ProLiant BL40p Server Blade Options BL p-Class Power options NOTE NOTE: Use p-Class sizing tool to help determine power configuration: http://www.hp.com/products/configurator NOTE: This Web site is available in English only.
PAGE 19
QuickSpecs HP ProLiant BL40p Server Blade Options Cluster Options ProLiant Cluster HA/F100 for MSA1000 v2 252408-B23 NOTE: For additional information regarding the ProLiant Cluster for HA/F100, HA/F200 for MSA1000 please see the following QuickSpecs at: http://www5.compaq.com/products/quickspecs/11035_na/11035_na.
PAGE 20
QuickSpecs HP ProLiant BL40p Server Blade Options HP Rack 10000 Series (Graphite Metallic) HP S10614 (14U) Rack Cabinet - Shock Pallet 292302-B22 HP 10647 (47U) Rack Cabinet - Pallet 245160-B21 HP 10647 (47U) Rack Cabinet - Crated 245160-B23 HP 10642 (42U) Rack Cabinet - Pallet 245161-B21 HP 10642 (42U) Rack Cabinet - Shock Pallet 245161-B22 HP 10642 (42U) Rack Cabinet - Crated 245161-B23 HP 10636 (36U) Rack Cabinet - Pallet 245162-B21 HP 10636 (36U) Rack Cabinet - Shock Pallet 245162-B22
PAGE 21
QuickSpecs HP ProLiant BL40p Server Blade Options Rack Options for HP Rack Rack Blanking Panels – Graphite (Multi) 10000 Series NOTE: Contains one each of 1U, 2U, 4U and 8U. Rack Blanking Panels – Graphite (1U) 253214-B26 253214-B21 NOTE: The Rack Blanking Panels (PN 253214-B21) contains 10 each of (1U). Rack Blanking Panels – Graphite (2U) 253214-B22 NOTE: The Rack Blanking Panels (PN 253214-B22) contains 10 each of (2U).
PAGE 22
QuickSpecs HP ProLiant BL40p Server Blade Options Rack Options for Rack 9000 Series Rack Options for Rack 7000 Series and Telco racks Baying/Coupling Kit 120669-B21 42U Side Panel NOTE: The 42U Side Panel (PN 120670-B21) supports the HP Rack 9142 and HP Rack 9842. 120670-B21 36U Side Panel NOTE: The 36U Side Panel (PN 120671-B21) supports the HP Rack 9136.
PAGE 23
QuickSpecs HP ProLiant BL40p Server Blade Options Rack Options for Rack 10000, 9000 and 7000 Series Monitor Utility Shelf 303606-B21 Ballast Option Kit 120672-B21 100kg Sliding Shelf 234672-B21 Rack Rail Adapter Kit (25"depth) 120675-B21 Monitor/Utility Shelf - Graphite 253449-B21 Depth Adjustable Fixed Rail 332558-B21 Cable Management D-Rings Kit 168233-B21 Console Management Controller (CMC) Option Kit 203039-B21 Console Management Controller (CMC) Sensors Option Kit 203039-B22 Consol
PAGE 24
QuickSpecs HP ProLiant BL40p Server Blade Memory ProLiant BL40p Server Blade (2P Model) Standard Memory 1024-MB of 2-way interleaved PC2100 ECC DDR installed (2 x 512-MB SDRAM DIMM) Standard Memory Plus Optional Memory Up to 9216-MB of 2-way interleaved PC2100 ECC DDR memory is available with the installation of optional DDR DIMM memory expansion kits.
PAGE 25
QuickSpecs HP ProLiant BL40p Server Blade TechSpecs HP ProLiant BL p-Class Server Blade Enclosure Dimensions Height 10.5 in (26.67 cm) Width 17.60 in (44.70 cm) Depth 28.86 in (73.30 cm) Rated input voltage -43 VDC to -53 VDC Nominal -48 VDC Rated input current 62.5 A at -48 VDC Rated input Power 3000 W Rated input voltage -43 VDC to -53 VDC Nominal -48 VDC Rated input current 6.
PAGE 26
QuickSpecs HP ProLiant BL40p Server Blade TechSpecs Operating and Performance Specifications for RJ-45 Patch panel 2 with Fibre Channel pass through Dimensions Height 10.405 in (26.43 cm) Width 1.535 in (3.899 cm) Depth 27.697 in (70.35 cm) Capability IEEE 802.2, 802.3, 802.
PAGE 27
QuickSpecs HP ProLiant BL40p Server Blade TechSpecs Operating and Performance Specifications for RJ-45 Patch Panel Dimensions Height 10.405 in (26.43 cm) Width 1.535 in (3.899 cm) Depth 27.697 in (70.35 cm) Capability IEEE 802.2, 802.3, 802.
PAGE 28
QuickSpecs HP ProLiant BL40p Server Blade TechSpecs Operating and Performance Specifications for GbE Interconnect Switch Dimensions Height 10.41 in (26.43 cm) Width 1.54 in (3.9 cm) Depth 27.7 in (70.35 cm) Weight 11.5 lb/5.2 kg per interconnect switch Performance 9.6 Gbps external port bandwidth per server blade enclosure (full duplex) Forwarding rate 0.15 million pps per 10/100 port, 1.
PAGE 29
QuickSpecs HP ProLiant BL40p Server Blade TechSpecs Operating and Performance Specifications for Power Enclosures Single-Phase Model Three-Phase Model Height 5.25 in (13.34 cm) 5.25 in (13.34 cm) Width 27.15 in (68.96 cm) 27.15 in (68.96 cm) Depth 17.60 in (44.7 cm) 17.60 in (44.7 cm) No hot-plug power supplies 47.5 lb (21.55 kg) 47.5 lb (21.55 kg) All hot-plug power supplies 99.5 lb (45.13 kg) 125.5 lb (56.
PAGE 30
QuickSpecs HP ProLiant BL40p Server Blade TechSpecs Operating and Performance Specifications for Power Distribution Devices Power Bus Box Mini Bus Bar Scalable Bus Bar Power enclosures or facility DC feeds supported (3U each) 1 1 2 Server blade enclosures supported (6U each) 1 3 5 Total rack height of supported enclosures 9U 21U 36U Height 5.1 in (12.95 cm) 19.45 in (49.40 cm) 48.57 in (123.37 cm) Width 3.6 in (9.14 cm) each 19.74 in (50.14 cm) 19.74 in (50.
PAGE 31
QuickSpecs HP ProLiant BL40p Server Blade TechSpecs Operating and Voltage Performance Specifications for Facility DC Current Nominal input voltage -48 VDC Operating voltage range -48VDC ± 10% or -43.2 VDC to -52.8 VDC Max Input voltage slew rate 0.
