4–2 User’s Guide
Operating the Monitor

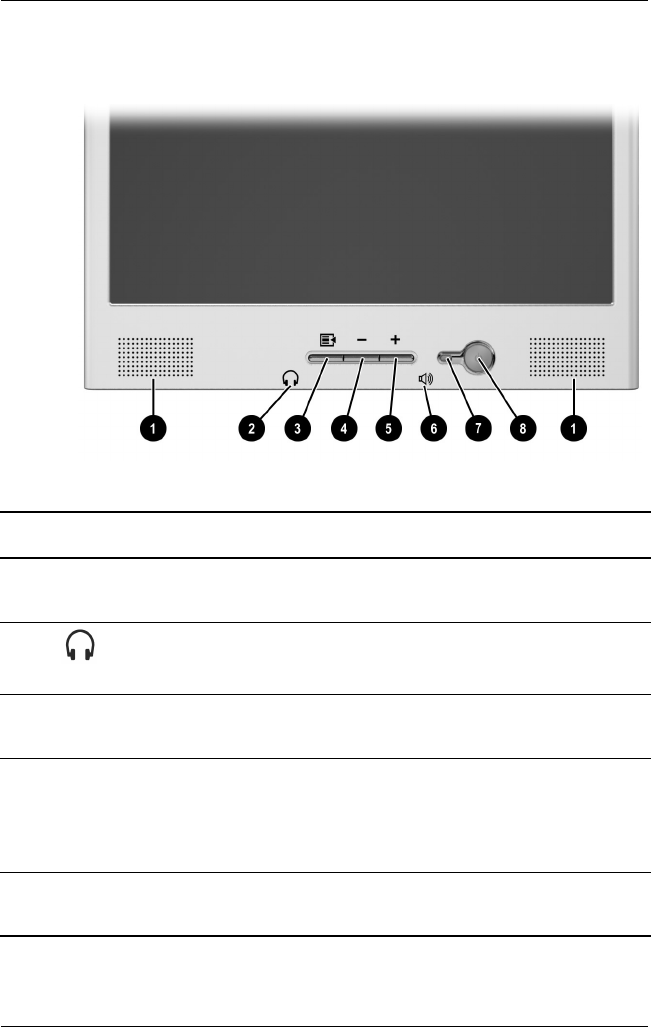

Front Panel Components
L1502m, L1702m, f1523, f1723, FP5315, and FP7317 Monitors
‘
No. Control Function
1 Speakers Audio feature for music, alarms, etc.
(multimedia models only)
2
(Headphone jack)
Connects a headphone set to the monitor.
3 Menu button Launches the On-Screen Display (OSD) menu and
selects functions.
4
– (Minus button) • When OSD is inactive, auto-adjusts the screen
image.
• When OSD is active, navigates in reverse
through the OSD and adjusts OSD scale settings.
5
+ (Plus button) When the OSD is active, navigates through the OSD
and adjusts OSD scale settings.
