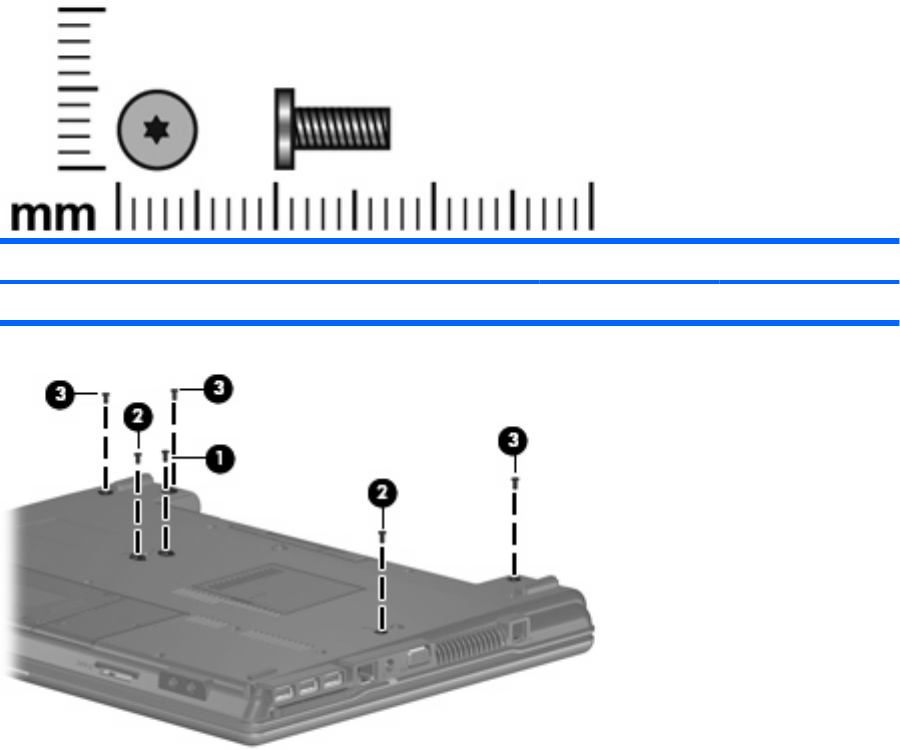

Torx T8M2.5×7.0 screw
Color Quantity Length Thread Head diameter
Black 23 7.0 mm 2.5 mm 5.0 mm
Where used:
(1) One screw that secures the optical drive to the computer
(2) Two screws that secure the keyboard to the computer
(3) Three screws that secure the switch cover to the computer
Torx T8M2.5×7.0 screw 95
