Plastics Kit
Item Description Spare part number
Plastics Kit: 456614-001

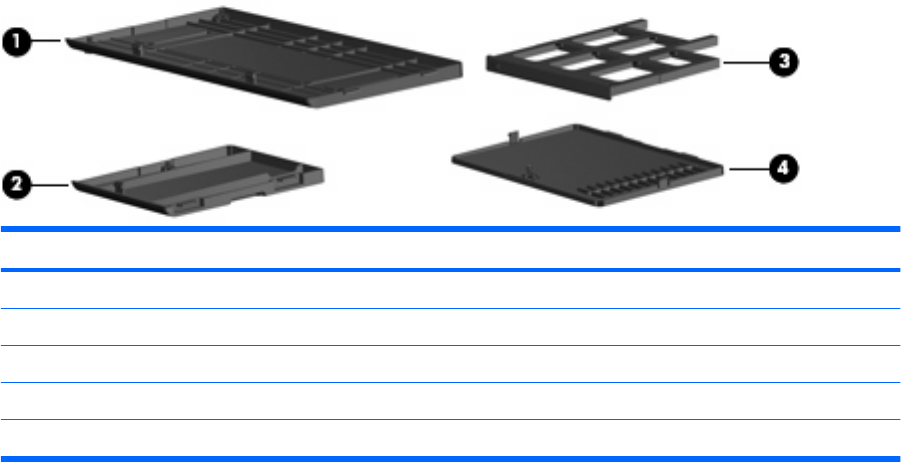

(1) Hard drive bay cover (includes 2 captive screws, secured by C-clips)
(2) WLAN module compartment cover (includes one captive screw, secured by a C-clip)
(3) ExpressCard slot bezel
(4) Memory module compartment cover (includes one captive screw, secured by a C-clip)
