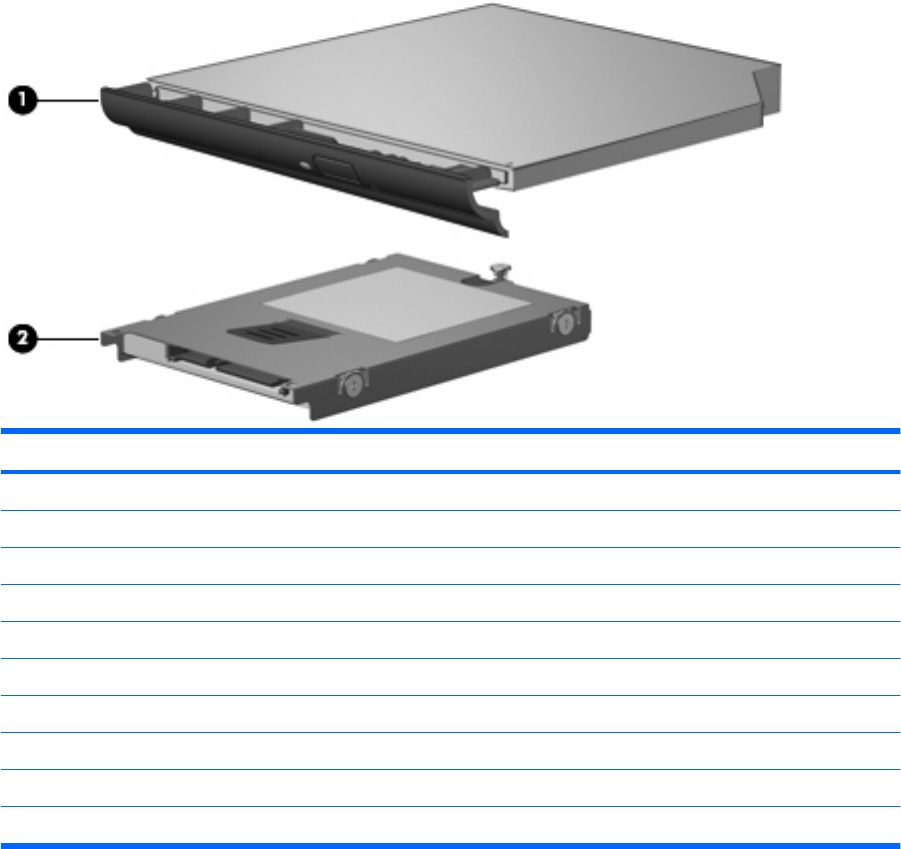

Mass storage devices
Item Description Spare part number
(1) Optical drives (include bezel and bracket)
DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with LightScribe 456799-001
DVD±RW and CD-RW Super Multi Double-Layer Combo Drive 456798-001
Blu-ray Disc ROM and SuperMulti DVD±R/RW Double-Layer Drive 456580-001
DVD/CD-RW Combo Drive 456797-001
(2) Hard drives (include bracket)
250-GB, 5400-rpm 457613-001
160-GB, 5400-rpm 457014-001
120-GB, 5400-rpm 457013-001
80-GB, 5400-rpm 457012-001
20 Chapter 3 Illustrated parts catalog
