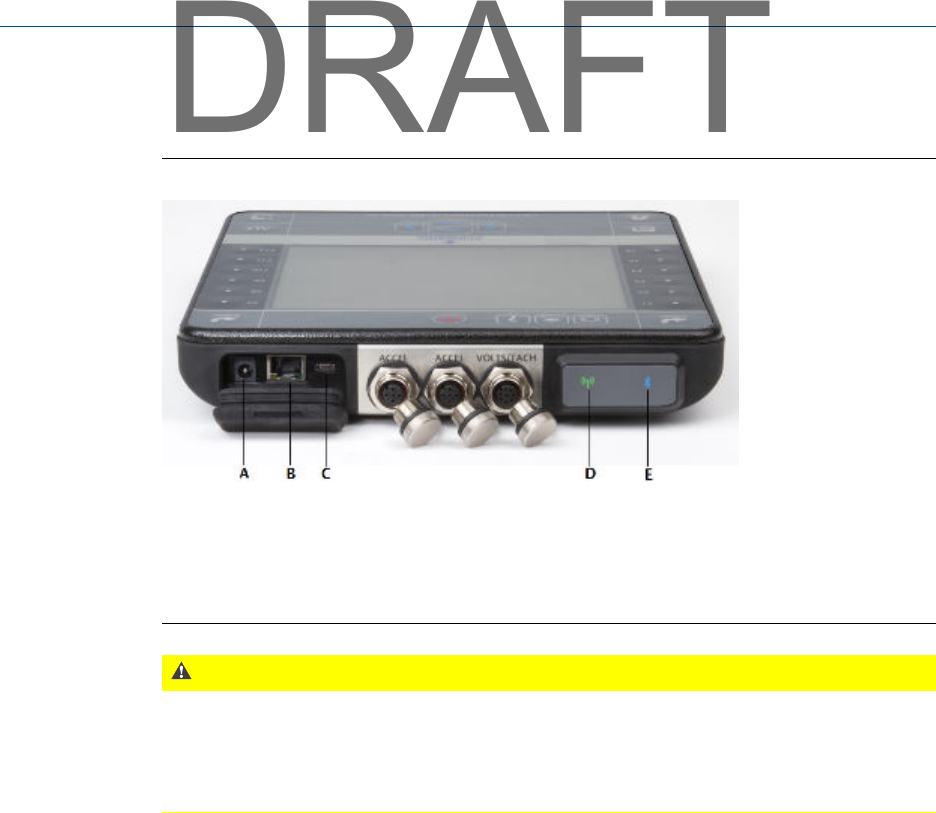

2.2.1 Top view
ConnectorsFigure 2-2:
A. Power supply connector.
B. Ethernet port.
C. Micro USB port.
D. Wireless LED.
E. Bluetooth
®
LED.
CAUTION!
To prevent damage to the analyzer:
• Do not connect a signal larger than 0 to 24 volts into the Accel input of the CSI 2140.
• Do not connect a signal larger than +/- 24 volts into the Volts / Tach input of the CSI
2140.
2.3 Using the stand
1. To put the stand in the upright position, grab the stand and pull up until the stand
locks.
2.
To release the stand, place the analyzer face down, grab the base of the stand, and
gently pull.
The lock releases, and you can push the stand toward the analyzer.
Introduction to the analyzer
7
