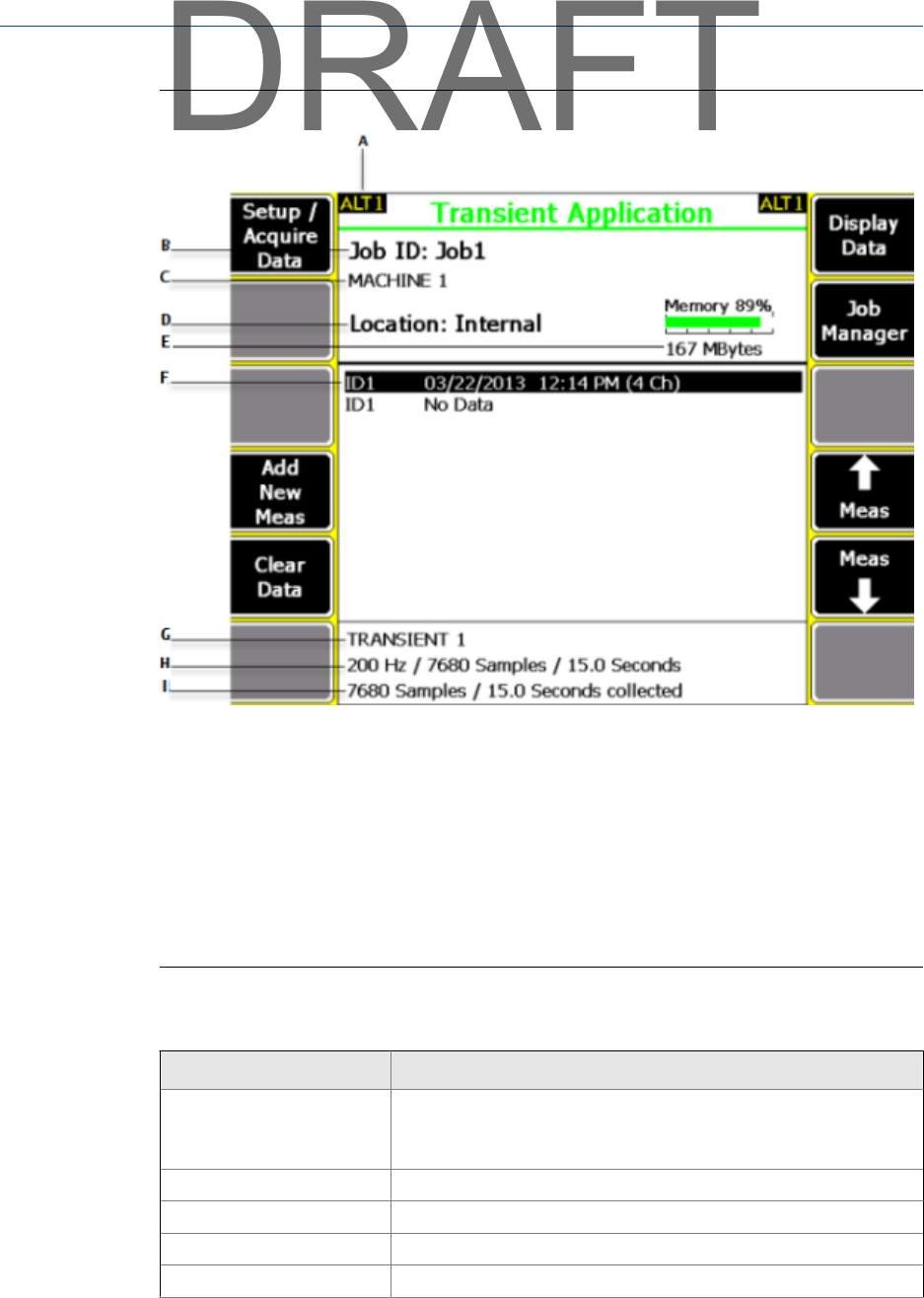

Transient main menuFigure 7-1:
A. Alternate (ALT2) screen includes additional options.
B.
The identifier for the job.
C. The equipment description.
D. Where the job file is in the analyzer. If you saved the job to a memory card, "Card" appears.
E. Available internal memory or memory card. The graph uses the option you select in F8 Job
Manager.
F. The measurements and their completion dates.
G. The measurement description.
H. The acquisition parameters (Fmax, number of samples, sample time) for a measurement.
I. The number of samples acquired and time of acquisition.
ALT1 keys
Option Description
F1 Setup / Acquire Data Set the data collection parameters, including fmax, sample rate,
number of samples, PeakVue and demodulation, and overload
conditions.
F2 Intentionally blank.
F3 Intentionally blank.
F4 Add New Meas Add a new measurement to the job.
F5 Clear Data Delete all collected data from a job.
Advanced Transient
145
