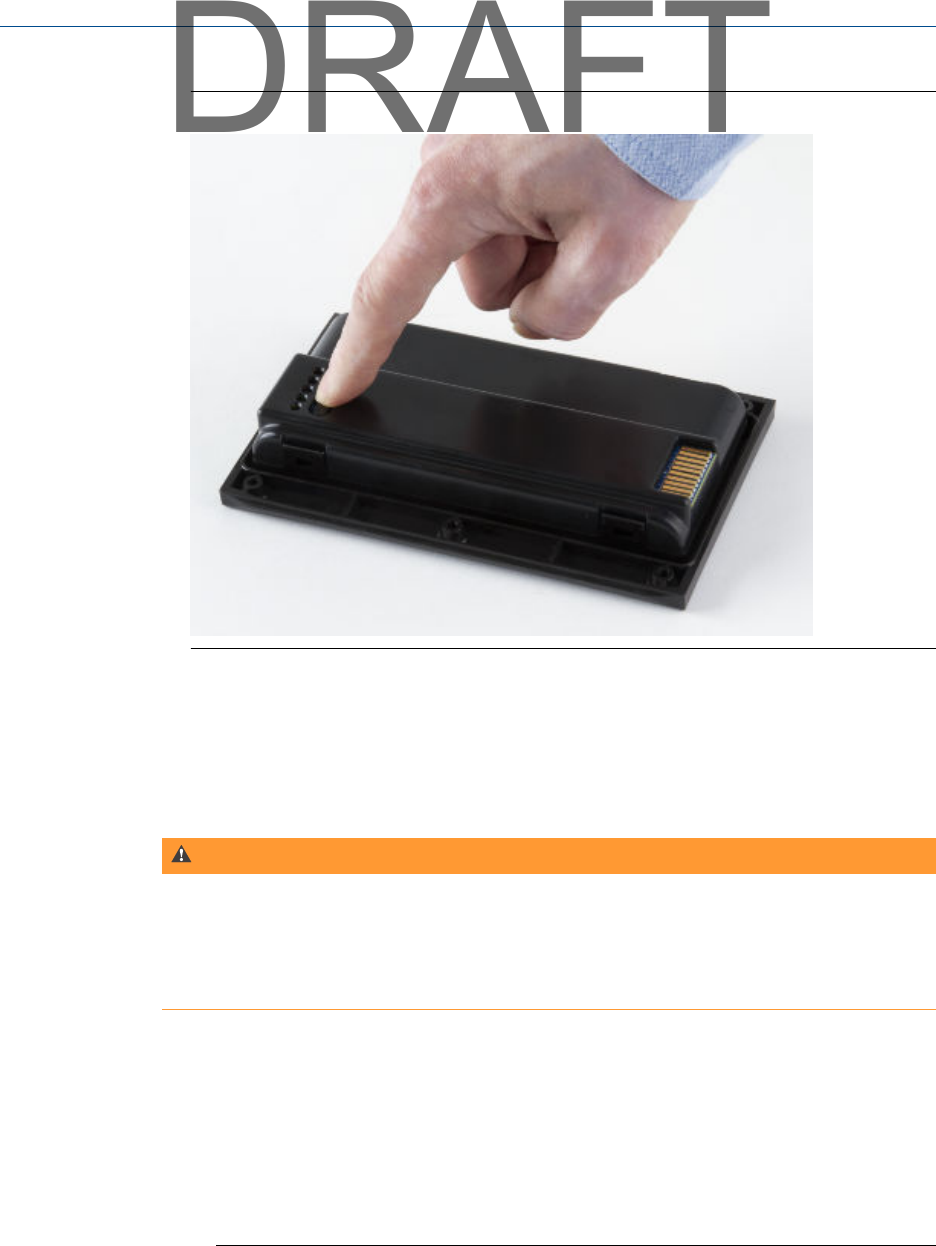

Check the remaining charge from the battery packFigure 2-5:
2.5.4 Charge the battery pack
The analyzer is fully operational during charging. As a best practice, charge the battery
pack frequently. Emerson recommends you charge the battery pack the night before you
intend to use it.
WARNING!
• Use only Emerson-supplied power supplies and chargers approved for use with the CSI
2140 and Emerson battery packs. Using any power supplies and chargers other than
approved Emerson power supplies and battery packs could not only void the warranty,
but will also most likely damage the analyzer or the battery pack.
• Charge the battery pack only in a non-hazardous area.
Procedure
1.
Remove the rubber plug on the top of the analyzer.
2. Insert the power supply connector into the analyzer. The analyzer can be powered
on or off.
3. Plug the AC connector on the power supply into a standard AC outlet, ranging from
100 VAC to 250 VAC, 50-60 Hz. A full recharge may take four hours.
Note
• The power supply can remain connected to the analyzer after charging completes. You
cannot overcharge the battery pack.
