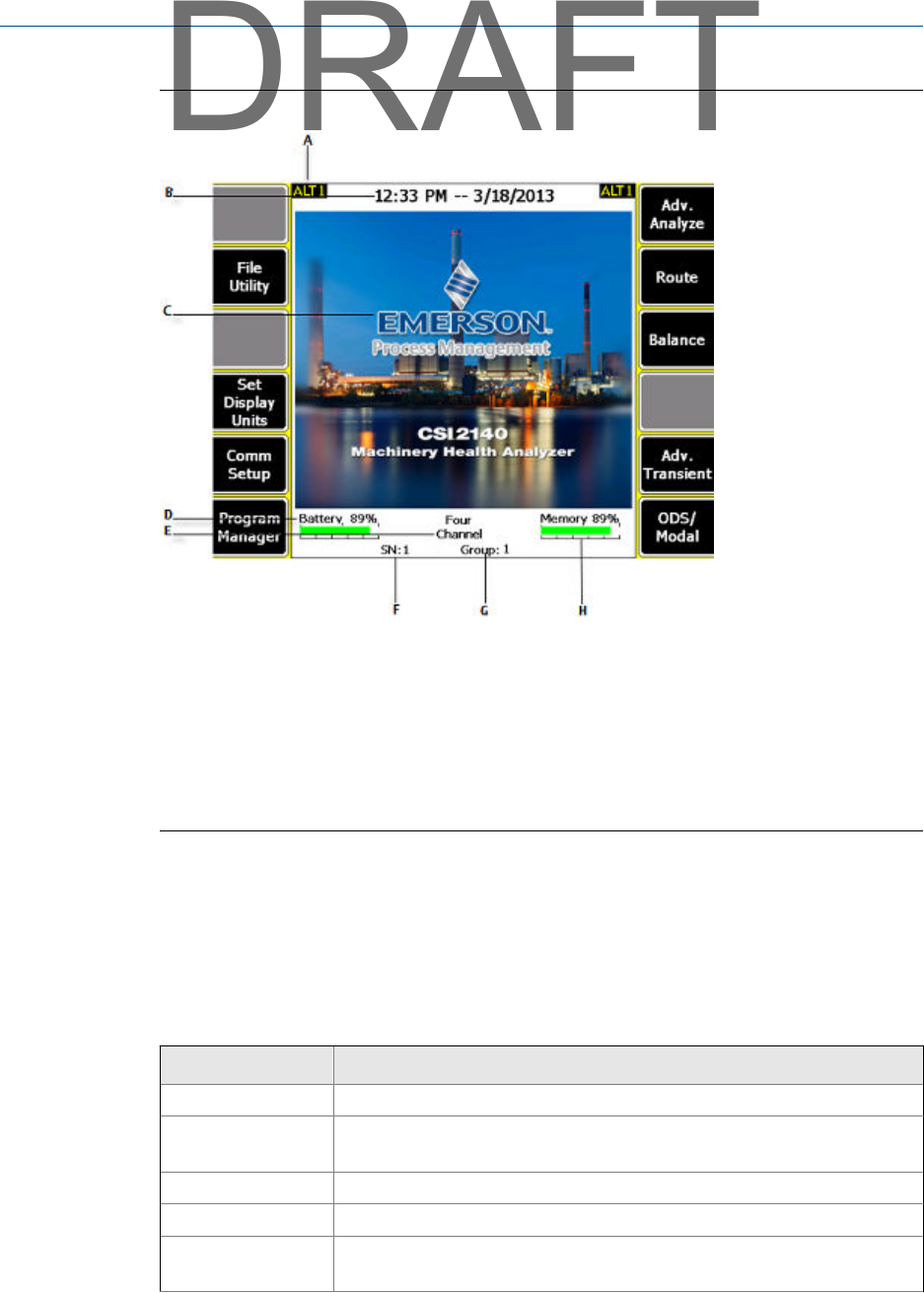

Home screenFigure 2-6:
A. An alternate screen (ALT) includes additional options.
B.
Current time and date.
C. Default splash screen.
D. Remaining battery pack charge.
E. Number of supported channels for the analyzer.
F. Serial number.
G. Group number for updating multiple analyzers at one site.
H. Available internal memory.
Home screen programs and settings
The Home screen has two alternate screens that display programs and settings. ALT1 or
ALT2 appears at the top of the screen and the function keys are outlined in yellow. To
switch ALT screens, press the ALT key or the ALT text on the touchscreen.
ALT1 keys
Option Description
F1 Intentionally blank.
F2 File Utility Copy, delete, or move routes or jobs saved in the analyzer internal memory
or a memory card.
F3 Intentionally blank.
F4 Set Display Units Set the default display units for the measurement values and plots.
F5 Comm Setup Set the communication options to connect the analyzer to AMS Machinery
Manager.
Introduction to the analyzer
15
