ContaminationSensor CS 1000 CS1000 hydraulic installation
HYDAC FILTER SYSTEMS GMBH
en(us)
Page 21/112
BeWa CS1000 3764916 300 en-us 2012-08-29.doc 2012-08-29

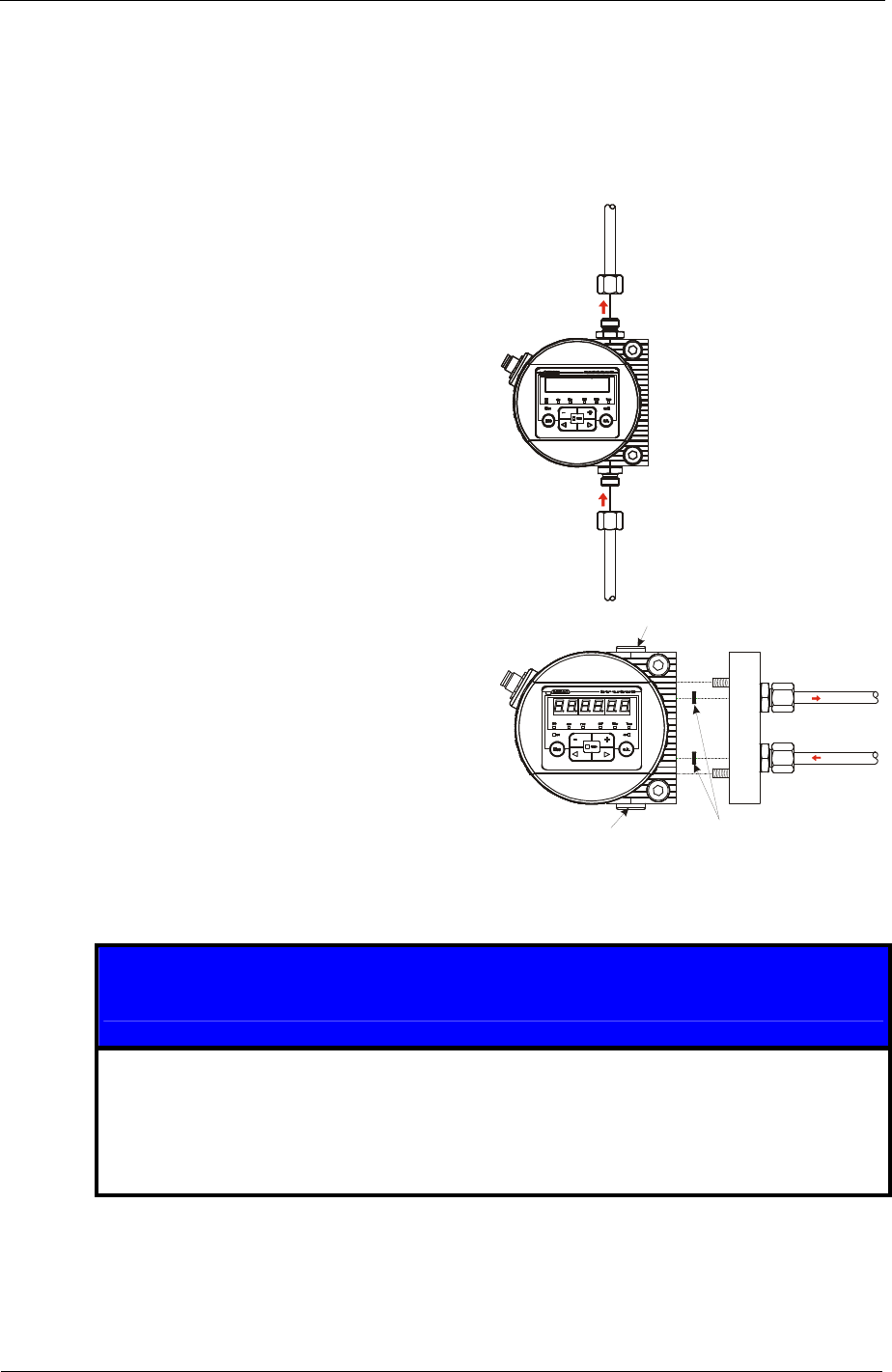

CS1000 hydraulic installation
Install the CS in such a way that the flow runs from bottom to top. Use port A / C as
the INLET and B / D as the OUTLET.
Depending on your order, the CS features the following hydraulic connection types:
Pipe/hose connection
The CS is connected to the hydraulic
system via ports A and B using a pipe or
hose.
A
B
Flange connection
The CS is screwed to a flange,
connecting plate, manifold mount or
control block, with flow through the unit
via ports C and D on the bottom.
Ports A and B exist but are sealed with
a screw plug.
[1] [2]
[1]
C
A
B
D
Determine the operating pressure of the hydraulic system and see whether it is
within the permissible flow range for the CS inlet.
NOTICE
Excessive operating pressure
The ContaminationSensor will be destroyed.
► Note the maximum operating pressure of 350 bar / 5075 psi.
