ContaminationSensor CS 1000 Overview of menu structure
HYDAC FILTER SYSTEMS GMBH
en(us)
Page 48/112
BeWa CS1000 3764916 300 en-us 2012-08-29.doc 2012-08-29

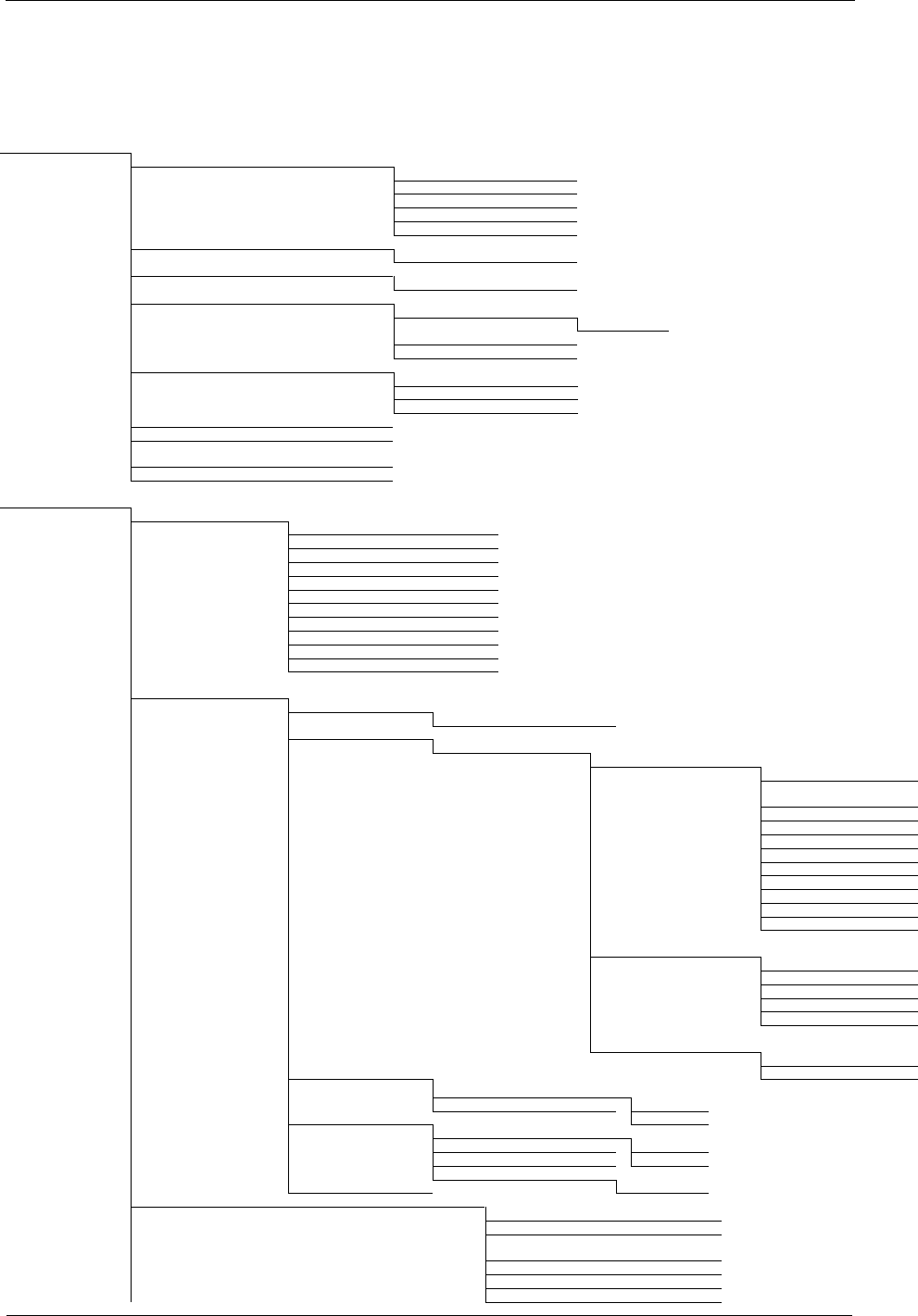

Overview of menu structure
Menu CS 12xx (ISO 4406:1999 and SAE)
PowerUp menu
MODE
Measurement mode
M1
Mode 1
M2
Mode 2
M3
Mode 3
M4
Mode 4
SINGLE
Single Mode
mTIME
Measuring time
60
Change value
pPRTC
Pump protection time
0
ADRESS
Bus address
HECOM
HECOM3b address
A
IP
Reserved
MODBUS
Reserved
FREEZE
Display Freeze
OFF
OFF
MANUAL
Manual
TIMOUT
Automatic
DFAULT
Factory setting
CANCEL
Cancel
SAVE
Save changes and exit PowerUp
menu
CODE
For internal use only
Measuring menu
DSPLAY
Display
ISO
ISO Code
SAE A
SAE class A
SAE B
SAE class B
SAE C
SAE class C
SAE D
SAE class D
SAeMAX
SAE A-D
FLOW
Flow rate range
ANaOUT
Analogue output
DRIVE
LED current in %
TEMP C
Fluid temperature in °C
TEMP F
Fluid temperature in °F
SWtOUT
Switching
output
M1
Mode 1
NO SET
M2
Mode 2
SP1
Switching point
MEAsCH
Test channel
SAeMAX
SAE A-D
SAE
SAE class
A/B/C/D
ISO 4
ISO class 4µm
ISO 6
ISO class 6µm
ISO 14
ISO class 14µm
ISO
ISO Code
TEMP
Temperature
SAE A
SAE class A
SAE B
SAE class B
SAE C
SAE class C
SAE D
SAE class D
SwFNCT
Switching function
BEYOND
Above limit
BELOW
Below limit
WITHIN
Within
OUTSDE
Outside
OFF
OFF
LIMITS
LIMITS
LOWER
Below limit
M3
Mode 3
UPPER
Above limit
MEAsCH
Test channel
TARGET
Target cleanliness
ISO
ISO
M4
Mode 4
SAE
SAE
MEAsCH
Test channel
TARGET
Target cleanliness
ISO
ISO)
RSTART
Above limit
SAE
SAE
CYCLE
Test cycle
SINGLE
Single Mode
60
ANaOUT
Analogue output
SAeMAX
SAE A-D
SAE
SAE class A/B/C/D
SAE+T
SAE class A/B/C/D +
temperature
TEMP
Temperature
HDaISO
HDA+ISO
HDaSAE
HDA+SAE
