Datasheet

DATE REVISION APPROVAL BY
DIMENSION
DRAW BY
APPROVAL BY
DATE
mm ±0.5
Oscar Wong
Rikki So
3-08-2011
1
2
3
4
5
6
A
B C D E F G H
SUGO INDUSTRIAL CO., LTD.
TEL : [phone] FAX : [phone]
Email : [e-mail]

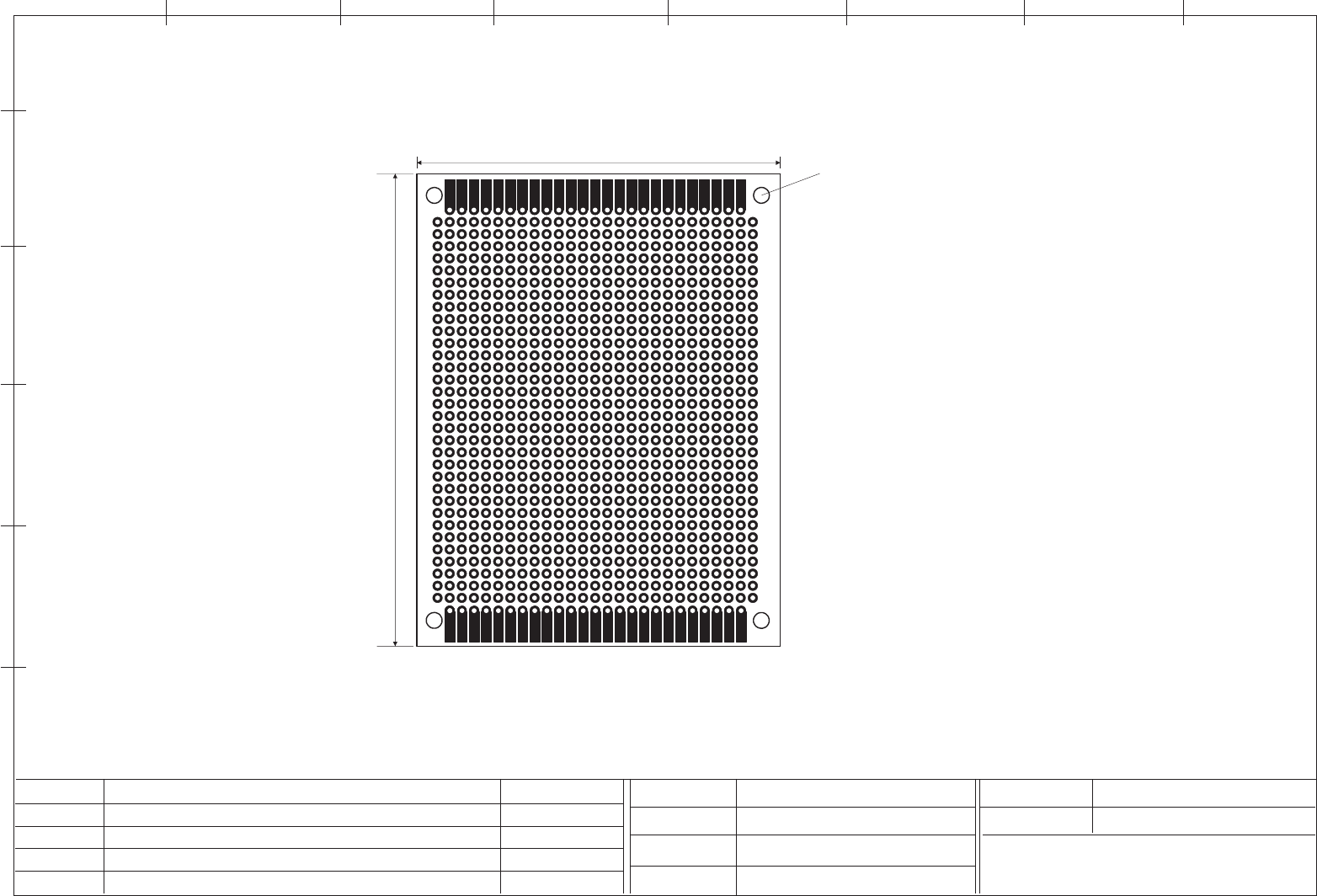

Product
SUPCB001
PC BROAD
Model no.
Material
Plating
Layer : Single
Thickness
76.5
98.0
Hole
: ø1.0
ø3.0
Pitch
: 2.54
: 1.6
: Tin
: FR4 Epoxy
