INSTALLATION INSTRUCTIONS

For Ceramic Metal Halide and Compact Fluorescent Stemlight Pendant Series:

CM12, CA12, CA16, CAF12 and CAF16

www.con-techlighting.com1-847-559-5500 CMHSTMLT INST

All speciﬁcations subject to change without notice.

WIRING INSTRUCTIONS

Track Mount:

Connect the socket leads (Blue-to-Blue, Red-to-Red) to the ballast

compartment socket leads; cap the green lead. Push the wire connec-

tors into the ballast housing. Tighten all Allen Screws to the maximum.

Line up the mounting slots, turn the bicycle cable connector clockwise

until it locks into place. A turning tool is supplied with the ﬁxture.

Mono-Point Mount:

Connect the socket leads (Blue-to-Blue, Red-to-Red) and the Green

Ground Lead. Connect the primary leads (Black-to-Black, White-

to-White, Green-to-Green). Take the ballast plate and attach the

(4) Brass Screws through the slots into the threaded brackets.

Connect the primary leads from the junction box to the primary

leads of the ﬁxture (Black-to-Black, White-to-White, Green-to-

Green). Attach the top round wiring compartment to the junction

box and tighten the (2) Philips/Straight Blade screws.

SHADE ASSEMBLY INSTRUCTIONS

Metal Shade: Open the bottom lens assembly by loosening the (3) thumb screws.

Insert the proper wattage lamp into the E26 Medium Base Socket.

Close the bottom lens assembly and tighten the (3) thumb screws.

Acrylic Shade: Remove the reﬂector assembly from the shade/hood/socket assem-

bly by removing the (3) brass screws attached to the metal housing

plate. Place the acrylic shade onto the housing so it sits on the

metal housing plate. From the inside of the acrylic shade, place the

white shade retaining plate onto the metal housing plate. Align the

(3) three holes in the white shade retaining plate with the metal

housing plate, and tighten the plates together with the (3) three

screws. When tightened, this will secure the acrylic shade to the

ﬁxture housing. Insert the proper wattage lamp into the E26 Medium

Base socket. The socket is adjustable vertically, however, the lamp

position from the factory is in the proper wide distribution setting.

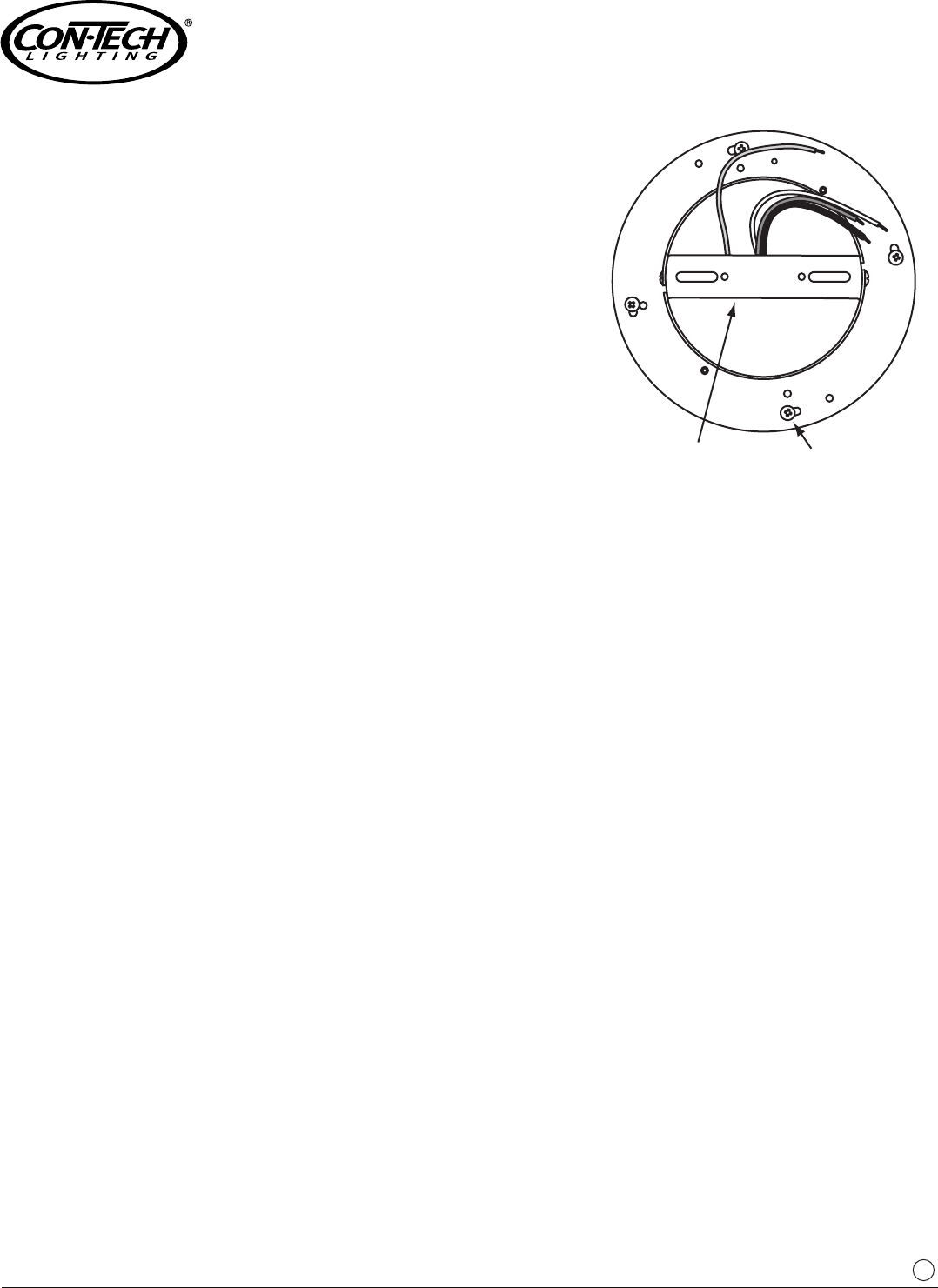

Top of Canopy

Brass Screws

on Ballast Plate

Mounting Plate
