Instruction Manual

®
NOTICE: The information and specifications printed in this manual are current at the time of publication. However,
the SECO-LARM policy is one of continual development and improvement. For this reason, SECO-LARM reserves the right
to change specifications without notice. SECO-LARM is also not responsible for misprints or typographical errors.
Copyright © 2011 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be reproduced or copied, in whole
or in part, without the written permission of SECO-LARM.
SECO-LARM
®
U.S.A., Inc., 16842 Millikan Avenue, Irvine, CA 92606 Tel: [phone]
Fax: [phone] Website: www.seco-larm.com E-mail: [e-mail]
WARRANTY: ENFORCER Photobeam Sensors are warranted against defects in material and workmanship while
used in normal service for a period of one (1) year from the date of sale to the original customer. Our obligation is
limited to the repair or replacement of any defective part if the unit is returned, transportation pre-paid, to SECO-LARM.
MiE931S45RRQ_1110.pmd

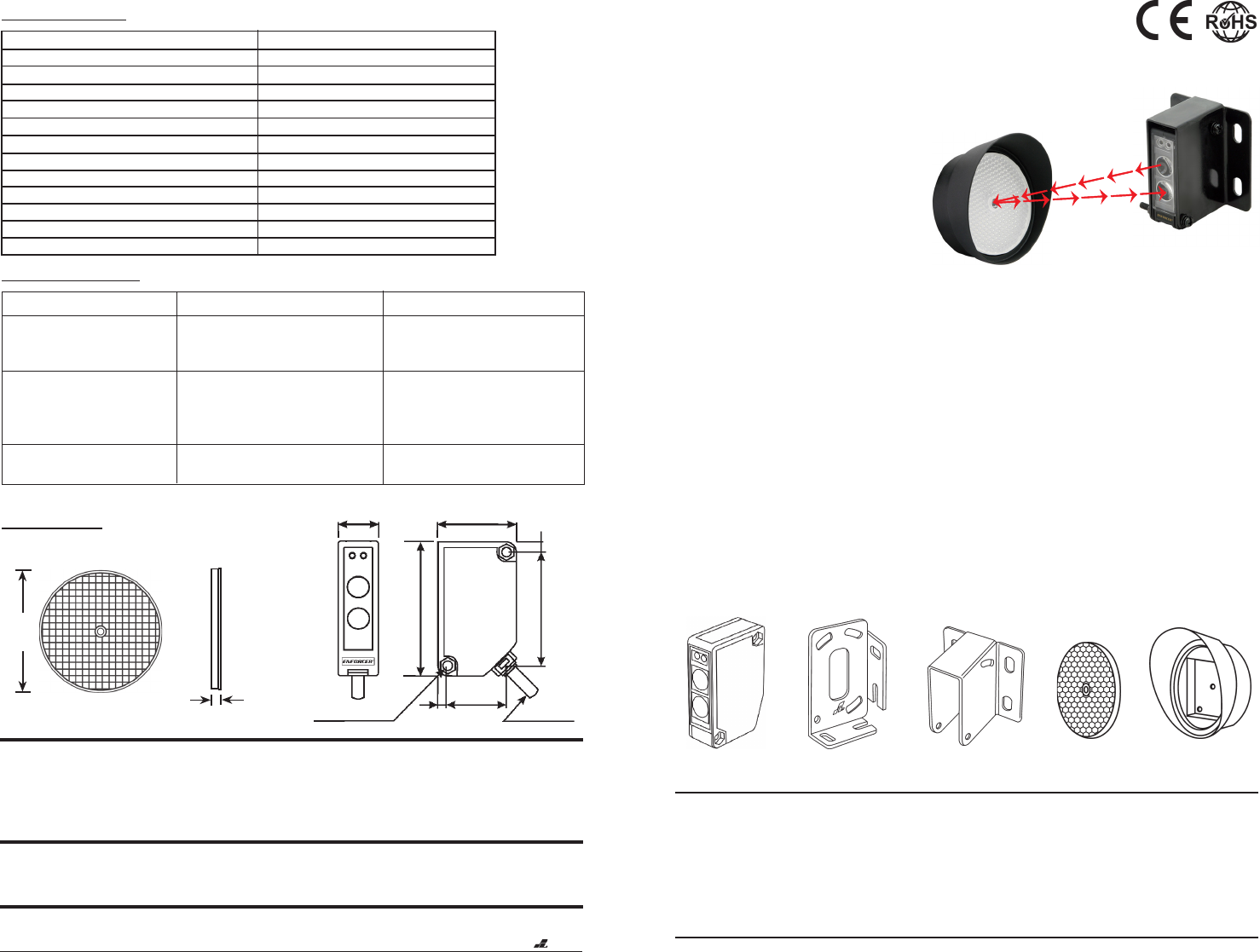

PITSW3
Retro-Reflective
Photoelectric
Beam Sensor
E-931-S45RRQ
Range: 45ft. (14m)
Note: Products with model numbers that end with "Q" or that have a round green "Q" sticker are RoHS compliant.
ENFORCER
Caution:
Included:
E-931ACC-RC1Q
Round Reflector
E-931-S45RRQ
Transmitter/Receiver
®
• This sensor was not designed to prevent bodily
injury or loss of life.
• This sensor was not designed for use in
environments where there may be explosive
gasses present.
INSTALLATION MANUAL
Features: Typical Applications:
••
••
• 12~250 VAC/VDC.
••
••
• Weatherproof (IP66) construction for
indoor/outdoor usage.
••
••
• Pre-wired 6-foot cord.
••
••
• Bracket and mounting hardware included for
both sensor and reflector.
••
••
• Adjustable response time and sensing range.
••
••
• Compact size.
• Safety sensor for garage doors or outdoor gates.
• Overhead door security sensor.
• Industrial automation - Detect small objects on
manufacturing line.
• Entry detection for store fronts.
• Assist in measuring parking distance.
• Alarm sensor.
• Use of this sensor in certain security
applications may be regulated by local laws or
codes. SECO-LARM is not responsible for
compliance with such laws or codes.
Specifications:
Troubleshooting:
Dimensions:
E-931-S45RRQ
Retro-Reflective
0.5' to 45' (0.2 - 14 m)
12-250 VDC or VAC
70mA@12VDC
5ms~100ms (Adjustable)
IR LED
Yellow LED (Alignment), Red LED (trigger)
SPDT Relay output (NO/NC/COM
3A@120VAC / 3A@30VDC
IP 66 Weatherproof
-4
0
~131
0
F (-20
0
~55
0
C)
Included
Model Number:
Type
Sensing Range
Voltage Supply
Current Drain
Response Time
Light Source
LEDs
Trigger Output
Switching Capacity
Enclosure
Ambient Temperature
Mounting Brackets for Sensor and Reflector
Yellow LED does not turn on.
••
••
•
Dirty sensor and/or reflector.
••
••
•
Reflector and/or sensor is misaligned.
••
••
•
Clean the sensor and reflector with a
damp (not wet) cloth.
••
••
•
Adjust the reflector and/or sensor for
proper alignment.
Red LED lights when object is
detected, but no output.
••
••
•
No continuity between sensor and
alarm device.
••
••
•
Check cable from sensor to alarm
device. Test sensor.
Sensor does not detect the object.
••
••
•
Sensor sensitivity is not properly set.
••
••
•
Object may have a reflective surface
which confuses sensor.
••
••
•
Change the angle of the sensor or
readjust the sensitivity setting.
Trouble Remedy(s)
Possible Origin(s)
E-931ACC-HR1Q
Reflector Hood for
Round/Square Reflector
E-931ACC-BLS5Q
Sensor Mounting Bracket
E-931ACC-BLS1Q
Sensor Mounting Bracket
0.35" (9mm)
(82mm)
(39mm)
(20.5mm)
(29mm)
2.48"(63mm)
2" (51mm)
(5mm)
2-Ø 0.18" (4.5mm) thru hole
Ø 0.24" (6mm)
cable 6.5' (2m)
0.81"
1.54"
3.23"
1.14"
0.20"
