User Manual

PCB Size Min: 2.0”x 4.0”
Max: 16.0”x 18.0”
PCB Heigh
t 37.5 Inches + 2”
Air Requir
ement 1.5 cfm @ 100 PSI
P
ower Requirement 110 VAC, 15A
C
ycle Time 11 - 16 Seconds
STANDARD SPECIFICATIONS:
3
PN: BBL-I

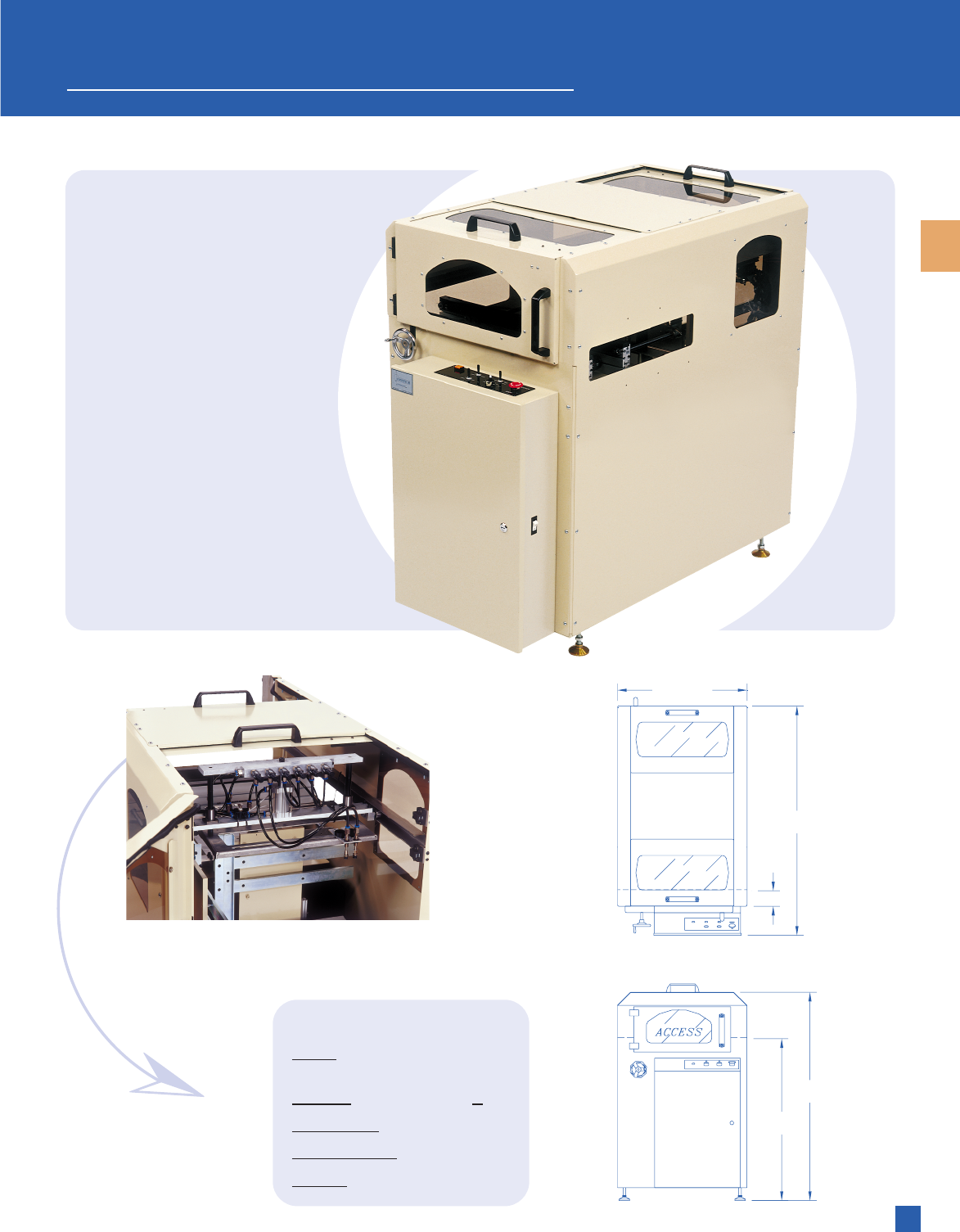

BARE BOARD LOADER I SMTS
STANDARD FEATURES:
• Auto/Manual/Pass-Through Switch
• 6 Independent Vacuum Generators
• Totally Enclosed for Safety with
Interlocked Doors
• Access Doors on Front,Back and Top
• PLC Controls with SMEMA Cables
• Board Edge Clearance = .100”(.060”min)
• Hand Crank Width Adjust = 2.0”- 16.0”
• 1/2”Steel Welded Frame
OPTIONS:
• 18”x 20”,21”x 24”,24”x 28”PCB Capability
• Light Tower for Indicating Operating Status
• Restacker Configuration (BBL-I-RS)
• Optional Suction Cups from 6-14 mm
• 8 Independent Vacuum Generators
• Auto Width Adjust
37.500"
48.250"
3.500"
53.150"
30.000"
