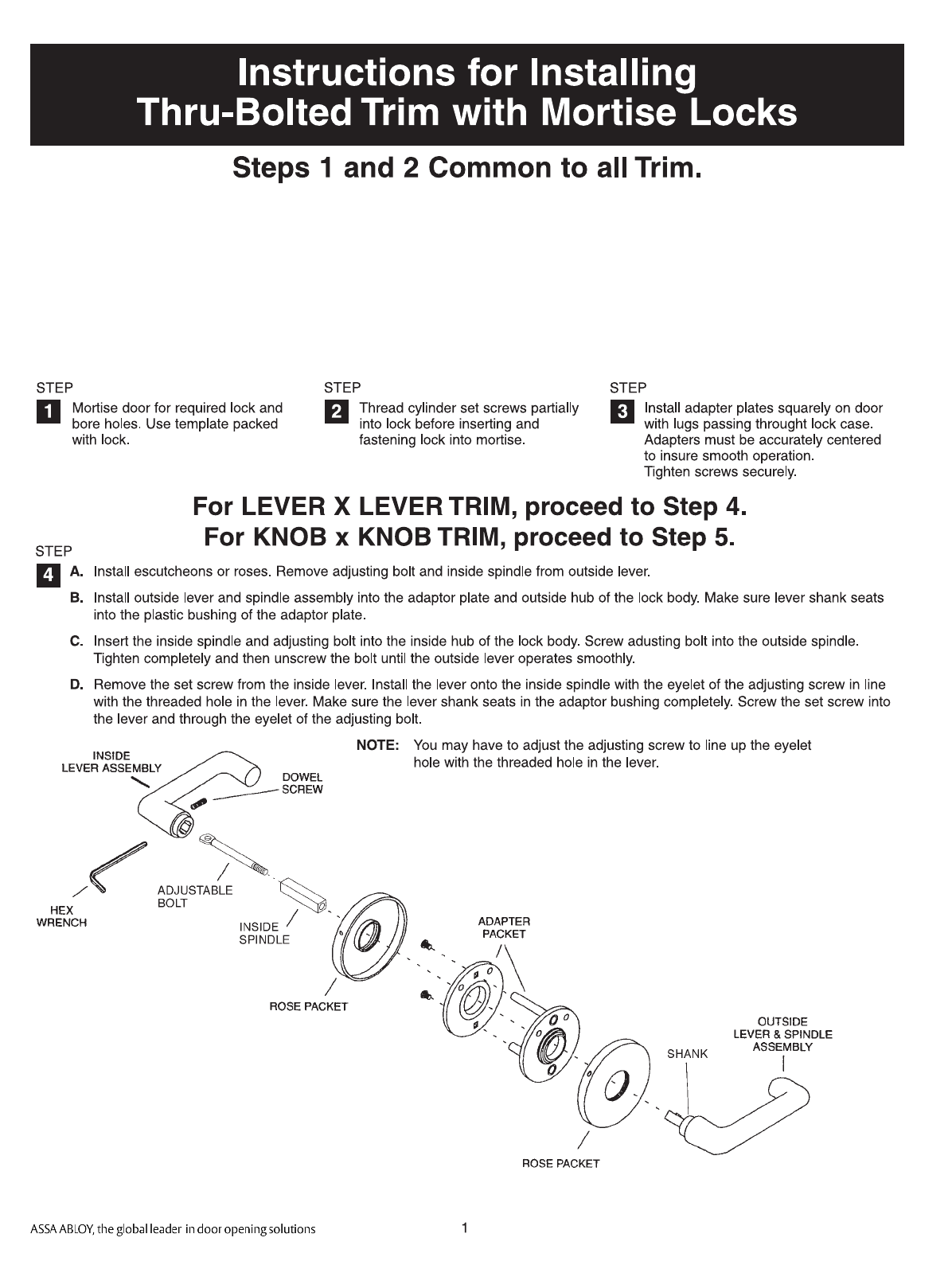

Installation Sheet

ManualsBrandsCorbin Russwin ManualsDoor LeversCorbin Russwin Fire Rated Grade 1 Single Dummy Lever with NSA Trim

RED Locking Screw

Step 1) Move the Red locking screw to

side of lock-body being locked (Fig. 1)

Step 2) Push in latch then depress catch

plate with screw driver (Fig. 1)

Catch Plate

Step 3) Pull latch out of lock-body

and turn latch over (Fig. 2)

Figure 1

Figure 2

Figure 3

Step 4) Push in latch while holding

screw driver behind latch tail (Fig. 3)

Note: Push in latch until catch plate is

no longer depressed (Fig. 4)

Figure 5

Step 5) Rotate lock front to match

bevel of door as shown (Fig. 5)

MAKE SURE CATCH PLATE IS

EVEN W/ TOP SURFACE

GOOD

BAD

Figure 4

WARNING:

LOCK-IN CAN

OCCUR IF LATCH

IS NOT PROPERLY

INSTALLED

Instructions for reversing the hand of the ML2000

In U.S.: In Canada:

Corbin Russwin, Inc. ASSA ABLOY Door Security Solutions Canada

225 Episcopal Road 160 Four Valley Drive

Berlin, CT 06037 USA Vaughan, Ontario, Canada L4K 4T9

Phone: 860-225-7411 Phone: 800-461-3007

FM1030E Rev. 5/10

Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.
