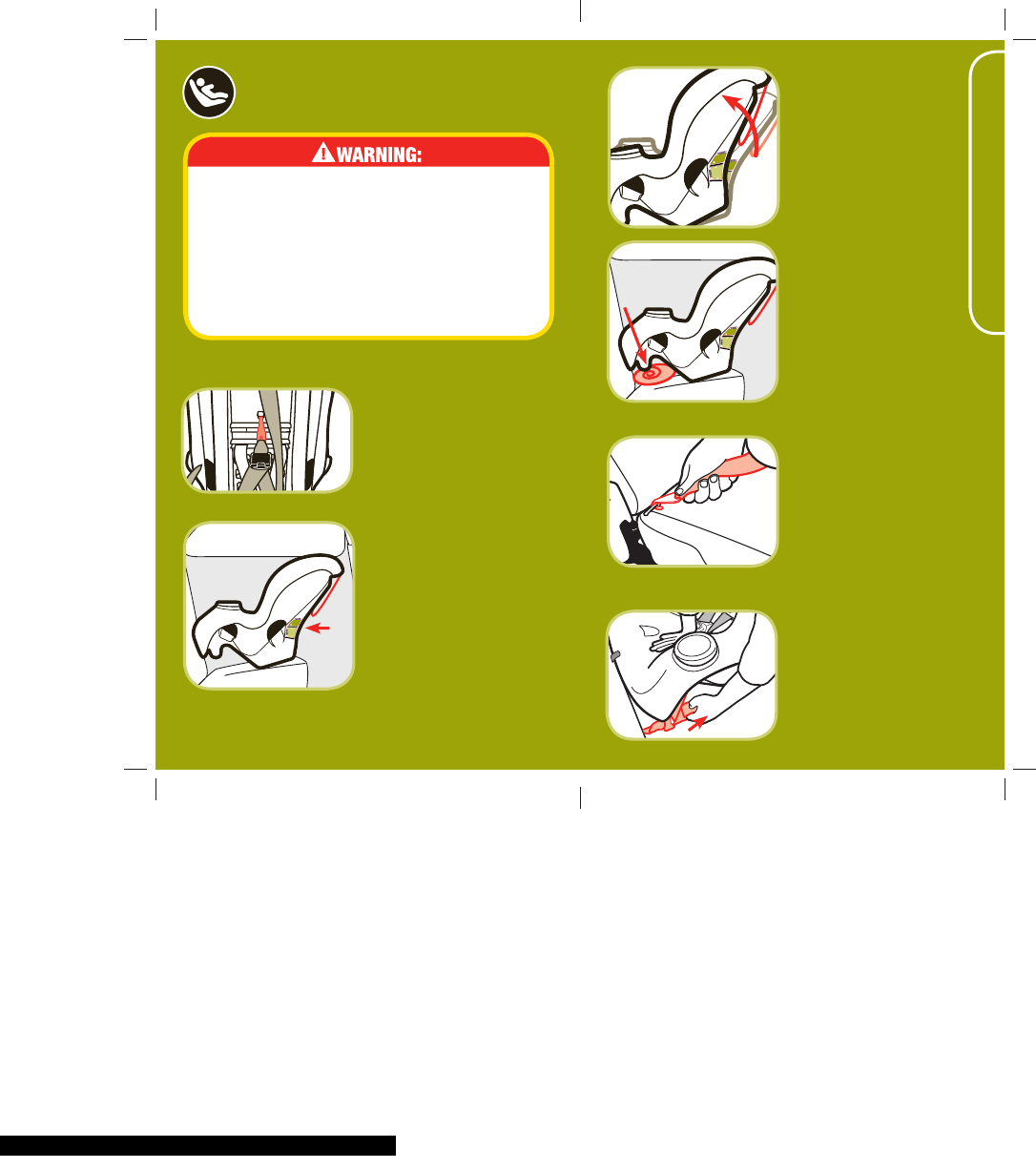

E-3 Install Rear-Facing with LATCH
Note: Review your vehicle’s owner manual for LATCH belt use.
Store Top Anchorage
Hook (Tether)
Attach the top anchorage
hook (tether) to the back
of shell as shown. Tighten
tether to remove the slack.
1.
E. Installing Rear-Facing
continued on next page.
Do not use the LATCH system along with the
vehicle lap or lap/shoulder belt.
Check LATCH belt before each use. Use only if
the belt can be tightened properly and securely.
Attach the top anchorage hook (tether) to the
child restraint’s seat back when used rear-facing.
Failure to follow these warnings can result in
serious injury or death.
Place Child Restraint
in the Back Seat Rear-
Facing
Move the front seats forward
to give you room to install the
child restraint.
For children between 5-22
lbs (2.3-10 kg), the top
level to ground line MUST be
level to the ground. Rotate
the child restraint to make the
line level.
Rear-Facing
For
Children 5-22 lbs
(2.3-10 kg)
Top L
ine MUST
Be
Level with
the
Ground.
43
60-2
155
Rear-Facing
For Children 22-40 lbs
(10.1-18 kg)
AND can sit
up unassist
ed
Recline range
is betwee
n
the 2
level to
ground
lines.
Re
v
i
ew instr
u
ction manual.
43
60-21
54
2.
For children 22-40 lbs
(10.1-18 kg) and can sit
up unassisted, rotate the
child restraint between the
2 level to ground lines. Start
by making the bottom level to
ground line level, then rotate
seat up. DO NOT rotate past
the top most upright level to
ground line.
Adjust child restraint if
needed.
You may need to place a
large rolled towel(s) or foam
pool noodle(s) (A) under the
front of the child restraint
to help achieve the correct
recline. Check often to be
sure padding is still in place
and the LATCH belt is tight.
Rear-Facing
For Children 5-22 lbs
(2.3-10 kg)
Top Line MUST Be
Level with the Ground.
4360-2155
Rear-Facing
For Children 22-40 lbs
(10.1-18 kg)
AND can sit
up unassisted
Recline range is between
the 2 level to ground
lines.
Review instruction manual.
4360-2154
Rear-Facing
For Children 5-22 lbs
(2.3-10 kg)
Top Line MUST Be
Level with the Ground.
4360-2155
Rear-Facing
For Children 22-40 lbs
(10.1-18 kg)
AND can sit
up unassisted
Recline range is between
the 2 level to ground
lines.
Review instruction manual.
4360-2154
Rear-Facing
For Children 5-22 lbs
(2.3-10 kg)
Top Line MUST Be
Level with the Ground.
4360-2155
Rear-Facing
For Children 22-40 lbs
(10.1-18 kg)
AND can sit
up unassisted
Recline range is between
the 2 level to ground
lines.
Review instruction manual.
4360-2154
A
3.
Hook LATCH to Vehicle
Anchor
Fasten one LATCH belt hook
to the anchor in the vehicle
seat located in the vehicle
seat bight. Repeat for other
side of child restraint.
Tighten LATCH Belt
Push down firmly on the
child restraint and pull up
on the free end of LATCH
belt to tighten.
6.
