User Manual

16

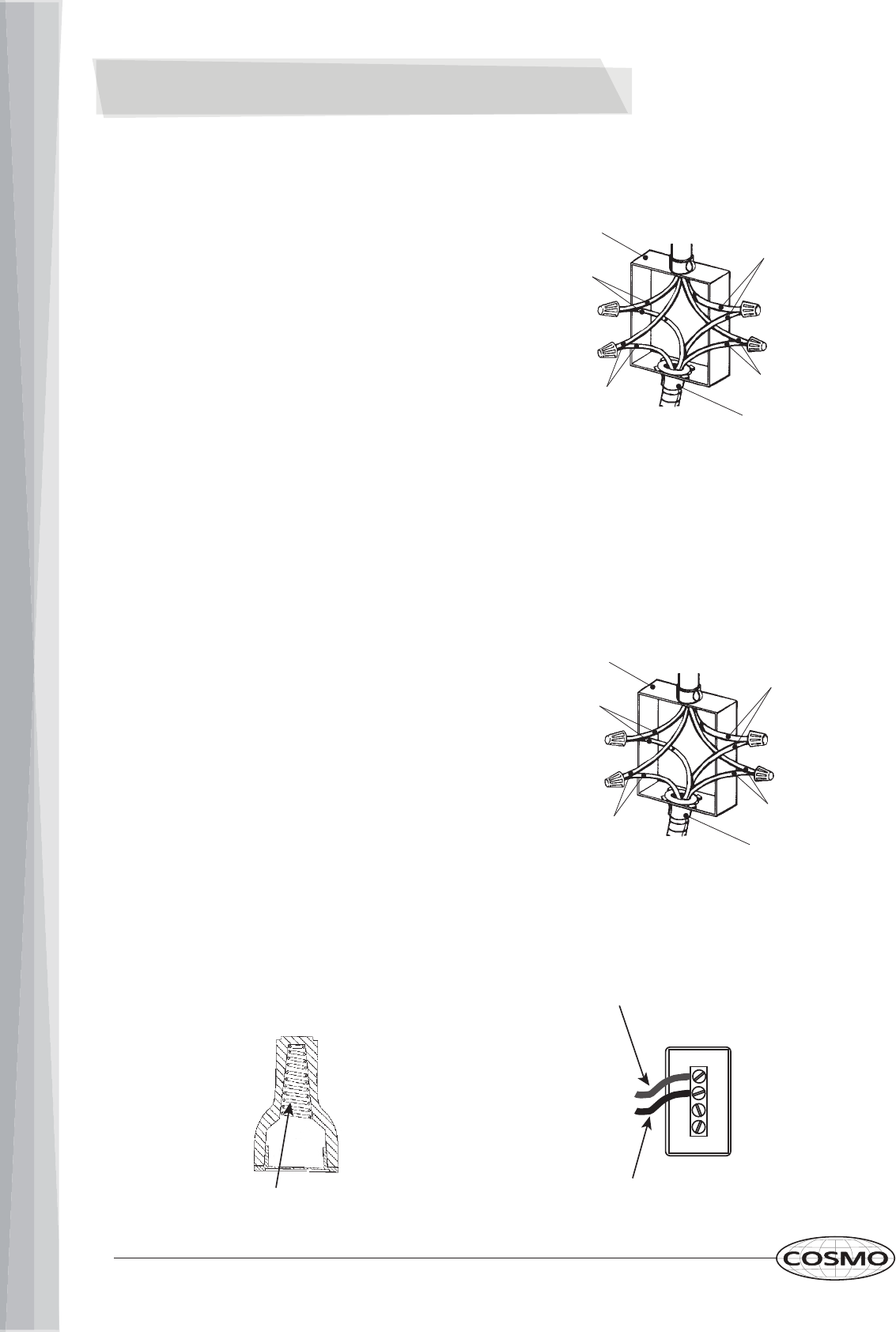

INSTALLATION
Wire Branch Circuit
Refer to Figure 1:
• Disconnect ground from neutral at free end
of conduit.
• Connect the green GROUND wire from the
oven to the GROUND wire in the junction
box (bare or green colored wire).
• Connect the red and black leads from the
oven to the corresponding HOT Wires in the
junction box.
• Connect the white wire from the oven to
the NEUTRAL (gray or white) wire in the
junction box.
• Follow all local codes and regulations while
installing the appliance.
Wire Branch Circuit
Refer to Figure 2:
• Disconnect ground from neutral at free end
of conduit.
• Connect the green GROUND wire from the
oven to the GROUND wire in the junction
box (bare or green colored wire).
• Connect the red and black leads from the
oven to the corresponding HOT Wires in the
junction box.
• Connect the white wire from the oven to
the NEUTRAL (gray or white) wire in the
junction box.
• Follow all local codes and regulations while
installing the appliance.
Ungrounded Neutral
Cable from
power supply
Cable
from oven
Junction box
Red wires
Black wires
White wires
Bare or
green wire
U.L.-listed conduit
connector
Figure 1
Ungrounded Neutral
Cable from
power supply
Cable
from oven
Junction box
Red wires
White wires
Bare or
green wire
Black wires
U.L.-listed conduit
connector
Figure 2
Important: Use twist-on connector
with square-wire spring
Square-wire spring
OR
From the oven
Terminal Block
From power supply
