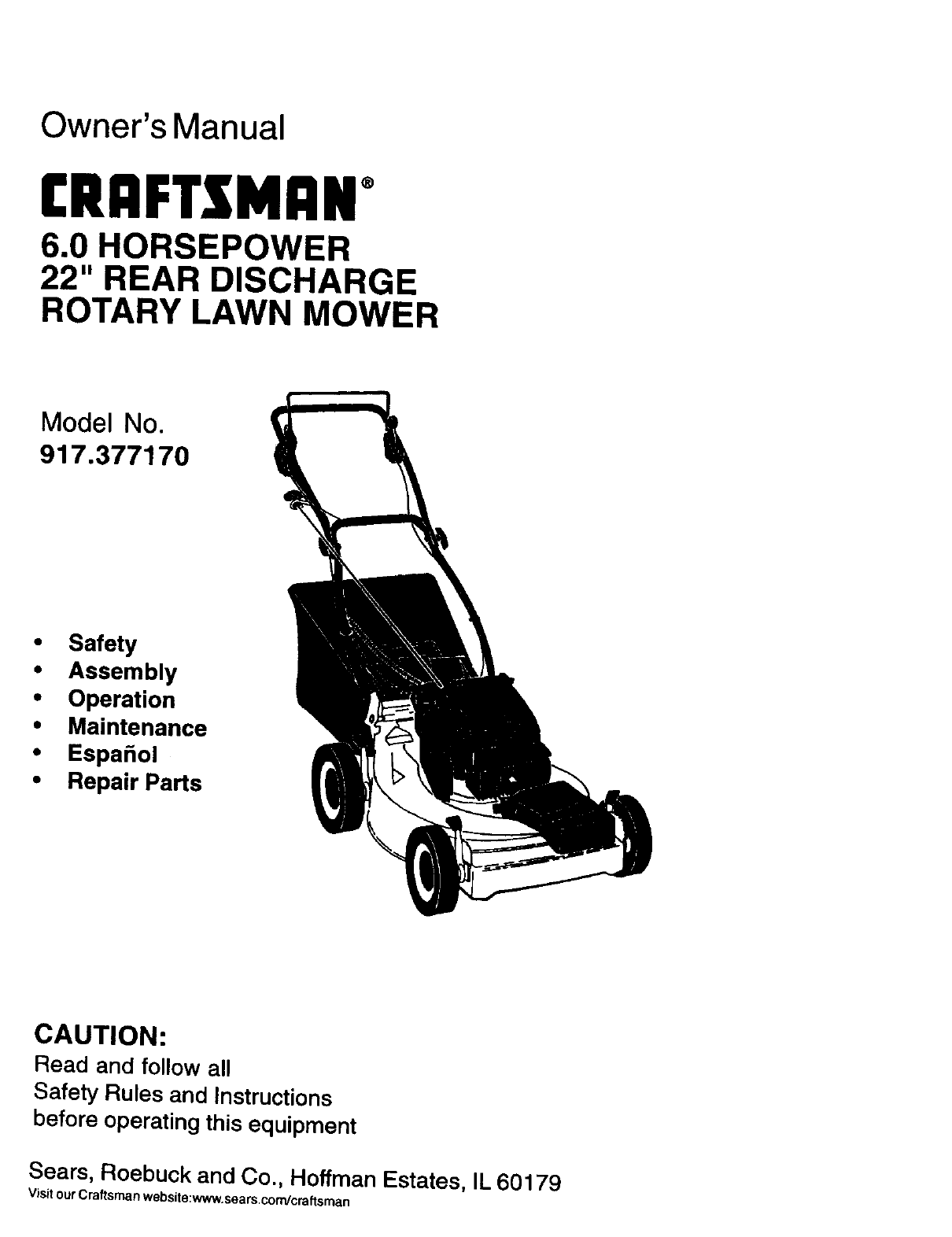

Owner's Manual (RI FT][MRN 60 HORSEPOWER 22 REAR DISCHARGE ROTARY LAWN MOWER Model No. 917.377170 • • • • • • Safety Assembly Operation Maintenance Espa_ol Repair Parts CAUTION: Read and follow all Safety Rules and Instructions before operating this equipment Sears, Roebuck and Co., Hoffman Estates, IL 60179 Visit our Craftsman website:www.sears.
Warranty .............................................. Safety Rules ........................................ Assembly ............................................. Operation ............................................. Maintenance Schedule ....................... Maintenance ........................................ LIMITED TWO YEAR WARRANTY 2 2 4 6 10 10 Product Specifications ......................... 11 Service and Adjustments ..................... 14 Storage .........................................
• Dress properly. Do not operate mower when barefoot or wearing open sandals. Wear only solid shoes with good traction when mowing. • Check fuel tank before starting engine. Do not fill gas tank indoors, when the engine is running or when the engine is hot. Allow the engine to cool for several minutes before filling the gas tank. Clean off any spilled gasoline before starting the engine. • Always make wheel height adjustments before starting your mower. Never attempt to do this while the engine is running.
These accessodss were available when this lawn mower was produced. They are not shipped with your mower. They are also available at most Sears retail outlets and service centers. Most Sears stores can also order repair parts for you, when you provide the model number of your lawn mower. Some of these accessories may not apply to your lawn mower.
HOWTO sEr UP YOUR LAWN MOWER TO UNFOLD HANDLE IMPORTANT: Unfold handles carefully so as not to pinch or damage control cables • Raise handles until lower handle section locks into place in mowing pasitlen. • Remove protective padding, raise upper handle section into place on lower handle and tighten both handle knobs. • Remove handle padding holding operator presence control bar to upper handle. • Your lawn mower handle can be adjusted for your mowing comfort.
KNOW YOUR LAWN MOWER READ THIS OWNER'S LAWN MOWER. with the location MANUALAND SAFETY RULES BEFORE OPERATING YOUR Compare the illustrations with your lawn mower to familiarize yourself of various controls and adjustments. Save this manual for future These symbols may appear on your lawn mower or in literature product. Learn and understand their meaning. A supplied with the i'.
Lower Wheels for High Cut The operation of any lawn mower can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields while operating your lawn mower or performing any adjustments or repairs. We recommend a wide vision safety mask over spectacles or standard safety glasses. TO ATTACH GRASS CATCHER • Lift the rear door of the lawn mower and place the grass catcher frame hooks onto the door pivot pins.
DRIVECONTROL ADD GASOLINE • Self-propelling is controlled by holding the operator presence control bar down to the handle and pushing the drive control lever forward until it dicks; then release the drive control lever. • Forward motion will stop when the operator presence control bar is released. To stop forward motion without stopping engine, release the operator presence control bar slightly until the drive control disengages.
IMPORTANT: Do not crank engine more thatn five continous seconds between each time you try to start. Wait 5 to 10 seconds between each attempt. • To start engine using the auxiliary starter handle, follow the steps above. Exchange the use of the start key for starter handle. Pull starter handle quickly. Do not allow starter rope to snap back. • To stop engine, release operator presence control bar. NOTE: In cooler weather it may be necessary to repeat priming steps.
MAINTENANCE SCHEDULE FILL IN DATES AS YOU COMPLETE REGULAR SERVICE SERVICE DATES Check for Loose Fasteners t_' Clean/Inspect Grass Catcher (,f Equipped) _ _ i_ M Clean Under Lawn Mower Drive Cover (Power-Propelled Mowers) _ Check drive beWpulleys (Power-Propelled Mowers) I/' R ChecldSharpen/Replace 1_3 Blade Lubrication Chart Clean Battery/Recharge IElectric Start Mowers I E Check Engine O11Level i N Change Engine Oil N V' I_ 1_4 _# I/t,2 G I I_ Inspect Muffler Clean or Replace
PRODUCT SERIAL SPECIFICATIONS NUMBER DATE OF PURCHASE GASOLINE CAPACITY/TYPE: JNLEADED OILTYPE 1.6 QUARTS REGULAR (API-SF/SG/SH): SAE 30 (ABOVE 32°F) SAE 5W-30 (BELOW 32°F) 20 OZS. OIL CAPACITY: SPARK VALVE PLUG/GAP: .030") CLEARANCE: 3OLID STATE AIR GAP: CHAMPIONR INTAKE: EXHAUST: IGNITION .010 IN. BLADE BOLT TORQUE: , The model and serial numbers will be found lawn mower housing.Record provided above. both serial LAWN MOWER Always observe safety rules when performing any maintenance.
IMPORTANT: treated. Blade bolt is grade 8 heat TO SHARPEN BLADE NOTE: We do not recommend sharpening blade - but if you do, be sure the blade is balanced. Care should be taken to keep the blade balanced. An unbalanced blade will cause eventual damage to lawn mower or engine. • The blade can be sharpened with a file or on a grinding wheel. Do not attempt to sharpen while on the mower. • To check blade balance, drive a nail into a beam or wall. Leave about one inch of the straight nail exposed.
TO CHANGE ENGINE OIL Cover tabs NOTE: Before tipping lawn mower to drain oil, drain fuel tank by running engine until fuel tank is empty. • • • plate Li • Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with spark plug. • Remove engine oil cap; lay aside on a clean surface. • Tip lawn mower on its side as shown and drain oil into a suitable container. Rock • Back Slots Cover Cartridge lawn mower back and forth to remove any oil trapped inside of engine.
ACAUTION: Before performing anyservice or adjustments. TO ADJUST The handle can be mounted in a high or low position. The mounting holes in the bottom of lower handle are off center for raising or lowering the handle. • Remove upper handle and all parts attached to lower handle. • Release control bar and stop engine. • Make sure the blade and all moving parts have completely stopped. • Disconnect spark plug wire from spark plug and place where it cannot come in contact with plug.
TO ASSEMBLE GRASS CATCHER • Put grass catcher frame into grass bag with rigid part of bag on the bottom. Make sure the frame handle is outside of the bag top. • Slip vinyl bindings over frame. NOTE: If vinyl bindings are too stiff, hold them in warm water for a few minutes. If bag gets wet, let it dry before using. &CAUTION: Do not run your lawn mower without clipping deflector or approved grass catcher in place. Never attempt to operate the lawn mower with the rear door removed or propped open.
Immediately prepare your lawn mower for storage at the end of the season or if the unit will not be used for 30 days or more. LAWN Operator presence control bar Upper Handle -_ x;/_'_ MOWER When lawn mower is to be stored for a period of time, clean it thoroughly, remove all dirt, grease, leaves, etc. Store in a clean, dry area. • Clean entire lawn mower (See "CLEANING" in the Maintenance section of this manual). • Lubricate as shown in the Maintenance section of this manual.
BA'I-rERY Disconnectthe battery from the engine connector and charge battery 48 hours. OTHER • Cover your unit with a suitable protective cover that does not retain moisture. Do not use plastic. Plastic cannot breathe which allows condensation to • Do not store gasoline from one season to another. form and will cause your unit to rust. IMPORTANT: Never cover mower while engine and exhaust areas are still warm. • Replace your gasoline can if your can starts to rust.
TROUBLESHOOTING CHART PROBLEM CAUSE Excessive CORRECTION 1. Wom, bent or loose blade. 1. 2. Bent engine crankshaft. 2. vibration Starter rope hard to pull , Engine flywheel brake is on 1. when controlbar is released. 2. Bent engine crankshaft. 2. 3. Blade adapter broken. 4. Blade dragging in grass. 3. 4. Replace blade. Tighten blade bolt. Contact an authorized service center. Depress control bar to upper handle before pulling starter rope. Contact an authorized service center.
ROTARY LAWN MOWER -- MODEL NO. 917.377170 BA'I'FERY 3 \ %. 2 KEY NO. PART NO, 1 2 3 157553 75O9O9 17411312 4 5 86353 111549X DESCRIPTION Battery Bracket Battery Hex Washer Head Screw 13 x .
ROTARY LAWN MOWER -- MODEL NO. 917.377170 GEAR CASE ASSEMBLY PART NUMBER 702511 17 14 KEY NO. PART NO. 17490416 2 3 4 6 137055X004 137053 57072 48373 7 8 9 77881 137051 137074 DESCRIPTION KEY NO. Tapping Screw 1/4-20 x 1-1/4 Engagement Bracket Shifter Seal Gear Case Halves Kit (includes Key Nos, 4, and7) Buaring Worm Shaft Drive Shaft 10 11 12 13 14 15 16 17 18 19 PART NO.
ROTARY LAWN MOWER MODEL NUMBER 917.
ROTARY LAWN MOWER MODEL NUMBER 917.377170 KEY NO. PART NO.
ROTARY LAWN MOWER MODEL NUMBER 917.
ROTARY LAWN MOWER MO DEL NUMBER 917.377170 KEY NO. 2 4 5 6 8 9 11 12 13 14 15 16 17 18 27 PART NO. 145755 158755 146527 150495 774OO 145212 151156 12(XXX)58 137054 88080 88118 67725 145793 701037 1436O3 DESCRIPTION DriveControl Hex Washer Head Screw 1/4-20 x 2-1/8 V-Belt SpdngRetainer Hubcap Hex Nut Wheel & Tire Assembly E-Ring Pinion DustCover FeltWasher Washer 1/2 x 1-1/2 x .134 ControlBar Selector Knob Hex Washer Head Screw #10-24 x 3/4 KEY NO. 28 31 32 35 36 37 38 40 41 52 54 55 56 PART NO.
BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NO. 12H807 TYPE NO. 2632-B1 I 1019 LABEL KIT I ,25_ 857 '_ l 51 ° 5251 lO87_ ;07 24 1005 VALVE OVERHAUL GASKET SET 741 331 27 O 45< 1102 Q 15_ 43 lit REQUIRES SPECIALTOOLS TO INSTALL.
BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NO. 12H807 TYPE NO.
BRIGGS & STRA'FTON 4-CYCLE ENGINE MODEL NO. 12H807 TYPE NO. 2632-B1 363 455 332_ 304 3osI_ 670 1,o 60e] 66_' 55 373 _ 58 ....
BRIGGS & STRATTON 4-CYCLE ENGINE 5101 MODEL NO. 12H807 TYPE NO. 2632-B1 615A_ 937 544 782 0 784 785 5131 3101803 < ss'_ .....
BRIGGS & STRATTON 4-CYCLE ENGINE KEY PART NO. NO.
BRIGGS & STRATTON 4-CYCLE ENGINE KEY NO. PART NO.
