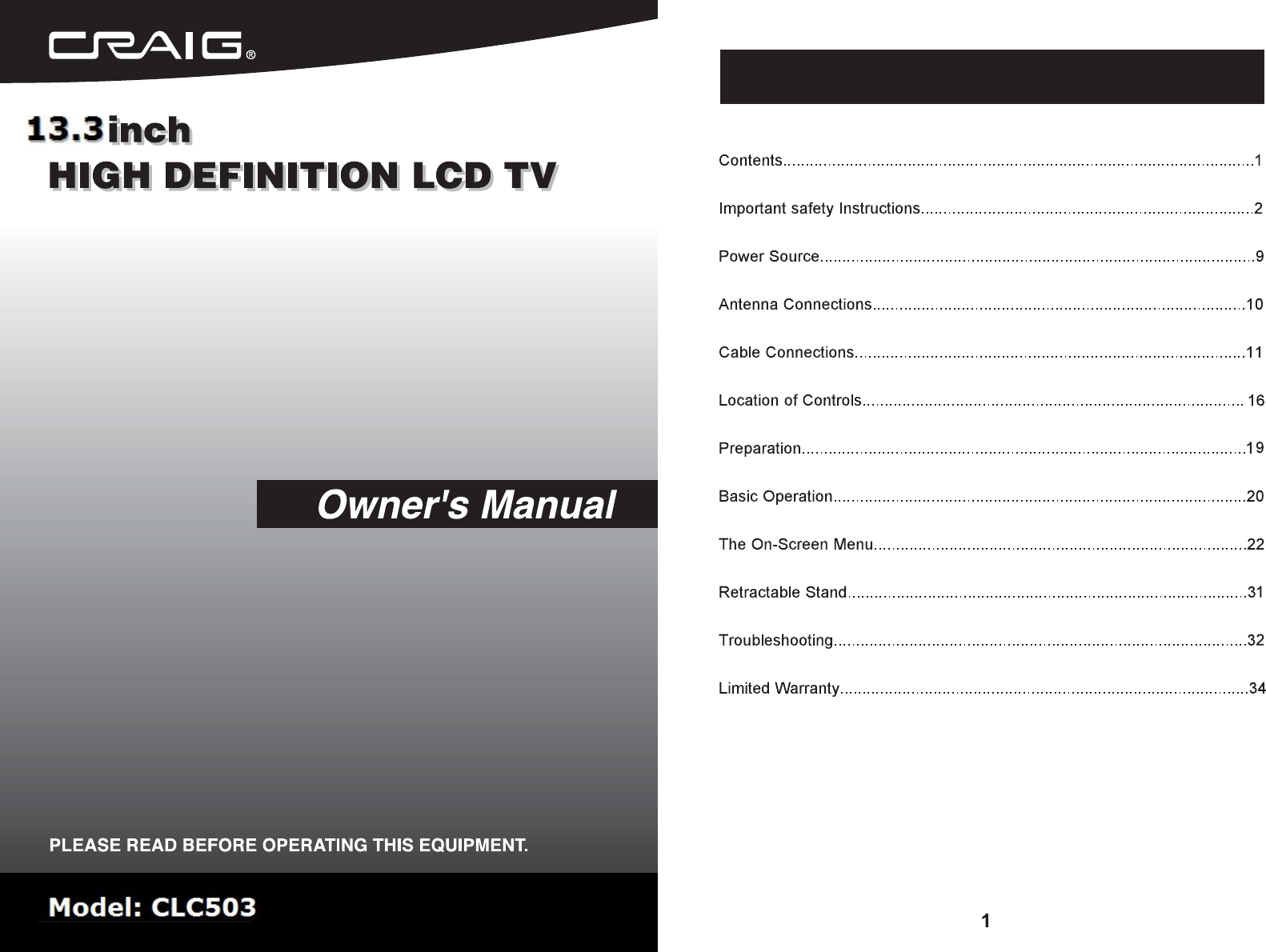

CONTENTS
IMPORTANT SAFETY INSTRUCTIONS FCC STATEMENT
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS ANTENNA LEAD IN WIRE GROUND CLAMP ANTENNA DISCHARGE UNT (NEC SECTION 810-20) GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS NEC-NATIONAL ELECTRICAL CODE POWER SERVICE GROUNDING ELECTRODE SYSTEM (NECART 250, PARTH) IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS POWER SOURCE 1. Insert the DC plug on supplied AC/DC adaptor to the DC IN Jack on the Right side of TV. 2. Insert the AC/DC adaptor into a conveniently located AC outlet having AC~ 100-240V, 50/60Hz in Vertical or Horizontal directions. (Never insert the AC/DC Adaptor the outlet on ceiling.
ANTENNA CONNECTIONS CABLE CONNECTIONS
CABLE CONNECTIONS CABLE CONNECTIONS CONNECTION USING HDMI(CABLE NOT INCLUDED): 1. Connect the HDMI cable (not included) from the HDMI of the TV to the HDMI of external unit as the figure below. 2. Set the SOURCE of the TV to HDMI mode.
CABLE CONNECTIONS CABLE CONNECTIONS Y/Pb/Pr Video In L-Audio In-R Video In Phones L-Audio In-R 1. Using component video connection cables (not included) to connect the external device's Y/Pb/Pr output jacks to the Y/Pb/Pr jacks on the TV. 2. Connect the left and right audio connection cable from the external unit's AUDIO OUTPUT jacks to the Audio In jacks on the TV. 3. Set the SOURCE of TV to COMP (Component) mode.
LOCATION OF CONTROLS 1. VOL- (Volume down) button 2. VOL+ (Volume up) button 3. CH- (Channel down) button 4. CH+ (Channel up) button 5. MENU button 6. SOURCE button HDMI 7. POWER button 8. DC IN jack 9. HDMI Port VGA 10. VGA Port 11. PC Audio In jack 12. Y input jack PC-Audio In 13. Pb (U/Cb) input jack 14. Pr (V/Cr) input jack 15. S-VIDEO Input jack 16. Video In jack 17/18. L- Audio In - R (Audio Left and Right channel input) jacks Video In L-Audio In-R Phones 19. Phones jack 20.
PREPARATION LOCATION OF CONTROLS 11. CC: Press repeatedly to turn CCD (Closed Caption) On/Off. 1. Open the battery door by lift up. 2. 12. INFO: Press to display the information; settings and the status of current mode on the screen. 13. PICTURE: Press repeatedly to select the preset picture modes. 3. 1. 2. 3. 4. or the device is not to be used for a long period of time, remove the batteries to prevent 5. 6. 13 4 15 15 14.
BASIC OPERATION BASIC OPERATION AUTO SEARCHING top of TV or remote control TV (Green LED indicator will light). Press again to power OFF (Standby) the TV (Red LED indicator will light). CHANNEL SETTING CH + or CH - control, a few seconds later, the selected channel will apper on screen. VOL + or VOL - 1. Press the SOURCE button on the remote control. The list of sources will appear on the screen. 2.
THE ON-SCREEN MENU THE ON-SCREEN MENU SETTING Menus Press the MENU button to enter to the setting menu (press again to exit). Press the Navigator or button to select and highlight the function within the menu you want to adjust. Press the (enter) button to go to the sub-menu to confirm the selection. Press the Navigator or button to adjust. During setting, press the EXIT button to return to previous menu.
THE ON-SCREEN MENU THE ON-SCREEN MENU PC ( VGA ) SETTINGS Menu ( Operation in VGA mode only .) In VGA mode. Enter to the PC settings menu as previously procedures. The PC SETTINGS menu will appear on the screen and Auto Adjust will be highlighted. Press and hold the (enter) button one second then release the button. The TV will adjust the best picture quality automatically. When finished, press the MENU button to save the settings and exit.
THE ON-SCREEN MENU Channel List Menu PARENTAL CONTROL Menu Enter to the channel setting menu as previously procedures, the CHANNEL setting menu will appear on the screen and Channel List will be highlighted. Press the (enter) button, the channel list of the stored channels will appear on the screen. Press the Navigator or button to select the desired channel then press the (enter) button. A few seconds later, the selected channel will appear on the screen.
THE ON-SCREEN MENU CHANGE PASSWORD Menu If Change Password is selected, press (enter) button to enter. The CHANGE PASSWORD menu will appear and Old PIN will be highlight. Enter the preset 4 digit passwords (or the super password 1506 ) by pressing the numeric buttons. New PIN will be highlighted automatically. Enter the new 4 digit password. Confirm will be highlighted, re-enter the new password then press the MENU button to save the new password and exit.
RETRACTABLE STAND THE ON-SCREEN MENU Notes: Enter to others setting menu as previously procedures, the OTHERS menu will appear on the screen and ATV blue Back will be highlighted. Press the (enter) to turn it On (If no signal received, background of screen will turn to Blue) or Off. 1. The 15 for backward and 5 for foreward If No Signal Power Off is selected, press the (enter) button to turn it On or Off.
TROUBLESHOOTING Power source: Power source of the supplied AC/DC adaptor: AC 100-240V~, 60/50 HZ, 1.2A Output of the supplied AC/DC adaptor: Audio output 3 Watts X 2 Remote Control Remote Control batteries (AAA SIZE) Check and make sure the Video output from the connected device is set to HD (High Definition) and the Audio output is set to PMC (Plus Code Modulation). For details, refer to the Instruction Manual of the connected device. The TV turn off automatically.
LIMITED WARRANTY CLC501_IB E0CR2_B0CV 34
