Assembly Instruction

ManualsBrandsCrate & Barrel ManualsChairsCrate & Barrel Infinity 24" Dark Stain Barstool

Customer Service 800-967-6696 | http://www.crateandbarrel.com

HARDWARE

TOOLS REQUIRED

Allen wrench (included)

1 Loosely insert two 1-3/8"L screws and two split washers

through holes in upper leg, then through two leg mounts and

into seat. Important: Make sure arrow on leg points toward

seat front, and leg is fastened into holes adjacent to circular

labels. Do not fully tighten.

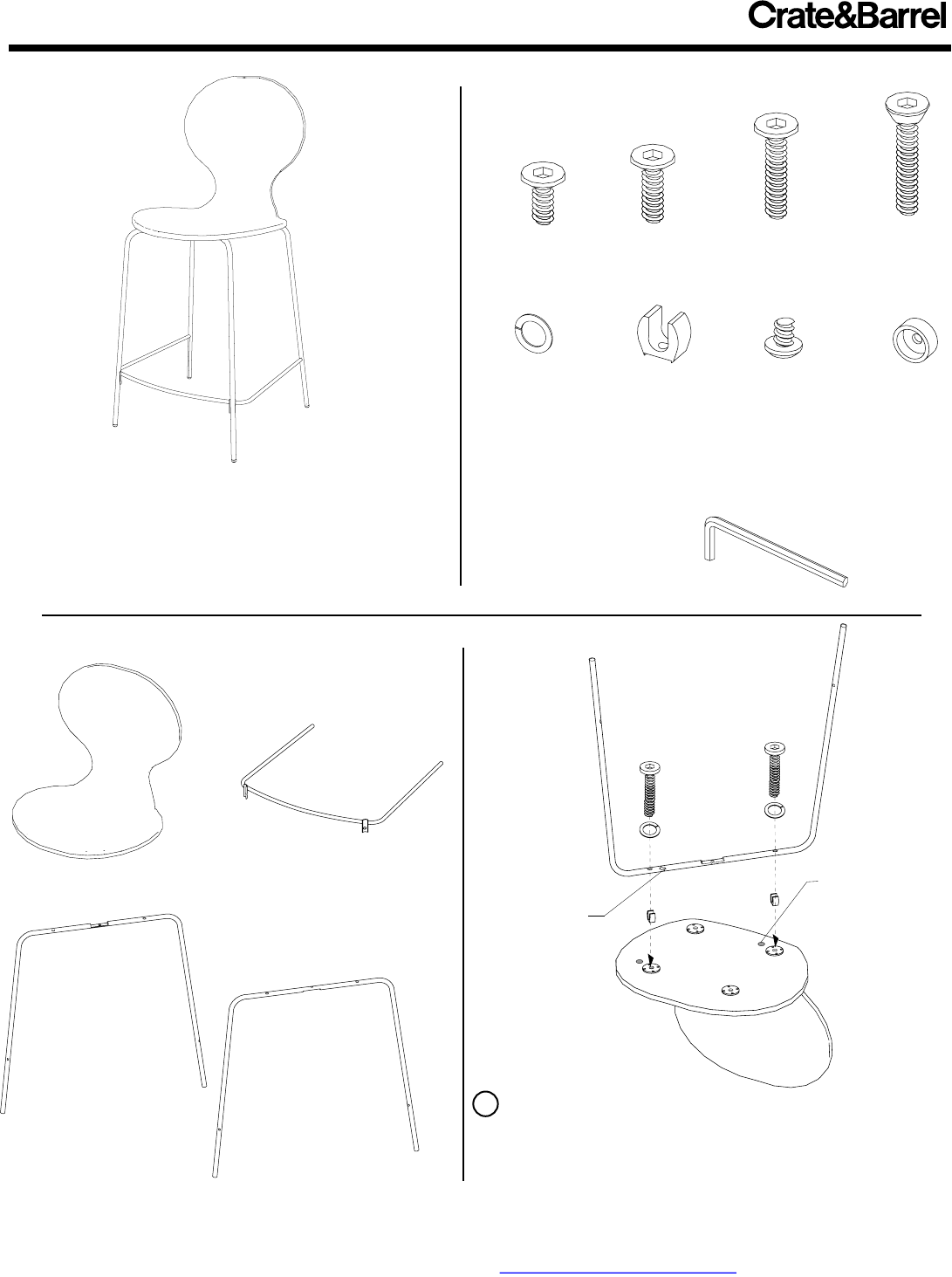

Thank you for purchasing the Infinity Barstool. This

page lists all the contents included in the box. Please

take time to identify the hardware as well as the

individual components of this product. As you unpack

and prepare for assembly, place the contents on a

carpeted or padded area to protect them from damage.

COMPONENTS

1 - seat

1 - lower leg

2 - 5/8"L

screw

1 - upper leg

1 - footrest

Note the

orientation

of arrows

Missing hardware? Please call 800.606.6387 for replacements.

INFINITY 24" & 30" BARSTOOL

Page 1 of 2

Made in Taiwan

5 - split

washers

4 - feet

2 - footrest

caps

4 - 1-3/8"L

screws

4 - leg

mounts

1 - 3/4"L

screw

2 - 1-1/2"L

screws

Note: Arrow on

leg points

towards

front of seat

Circular labels

indicate which holes

receive upper leg

Summary of content (2 pages)

PAGE 1
INFINITY 24" & 30" BARSTOOL HARDWARE 2 - 5/8"L screw 5 - split washers 1 - 3/4"L screw 4 - 1-3/8"L screws 4 - leg mounts 4 - feet 2 - 1-1/2"L screws 2 - footrest caps Missing hardware? Please call 800.606.6387 for replacements. Thank you for purchasing the Infinity Barstool. This page lists all the contents included in the box. Please take time to identify the hardware as well as the individual components of this product.
PAGE 2
INFINITY 24" & 30" BARSTOOL B A A Note: Arrows on legs point towards front of seat 2 A. Loosely insert two 1-3/8"L screws and two split washers through lower leg, through 2 leg mounts and into seat. Do not fully tighten. B. Loosely secure legs at center with one 3/4"L screw & one split washer. Do not fully tighten. B 3 A. Fit two footrest caps onto ends of footrest. B. Align holes in footrest with corresponding holes in the legs.
