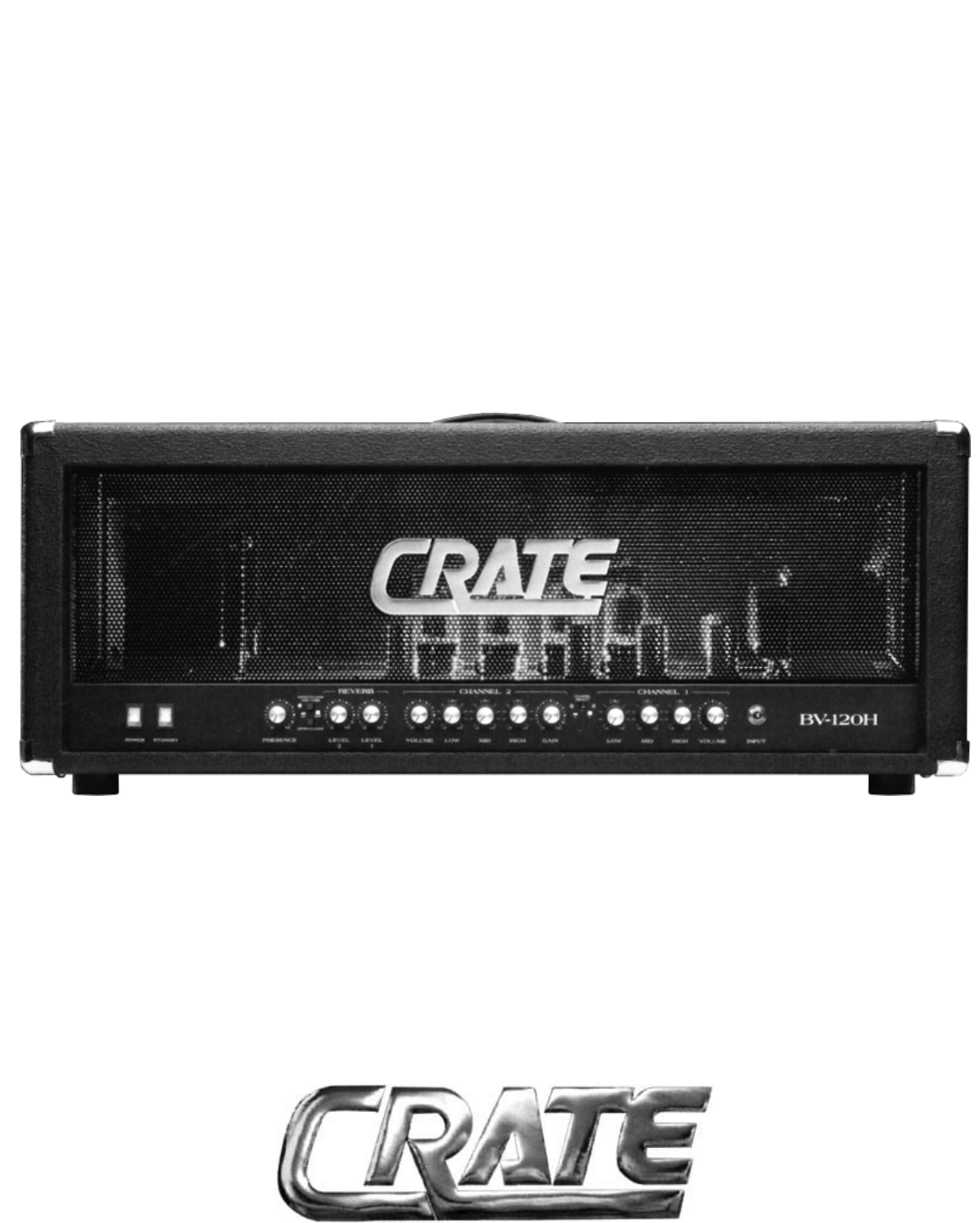

User’s Guide for the BV-60H / BV-120H All Tube Guitar Amplifiers by Musician-Made in the U.S.A.
BV-60H / BV-120H All Tube Guitar Amplifiers Congratulations! Your love of performing and driving ambition to be the best have brought you to a turning point in your musical career: the incredible BV-60H/BV-120H Professional Series guitar amplifier. An all-tube powerhouse of an amplifier designed to take you to the top and keep you there. We know something about you: we know you were never impressed with those "toys" that some of your friends called amplifiers.
BV-60H / BV-120H All Tube Guitar Amplifiers Introduction: The BV-60H/120H are all-tube, feature-packed professional stage performers' amplifiers. Rugged construction, reliable American craftsmanship and two powerful channels of pure tube power are some of the trademarks of these new and impressive pieces of musician's equipment.
BV-60H / BV-120H REVERB 4 5 EFFECTS LOOP PAD AD (12dB) 6 3 7 2 8 ON OFF 9 1 O 1O POWER STANDBY PRESENCE 1 2 3 4 5 6 3 2 4 5 CHANNEL 2 6 4 7 9 O 8 9 1 1O O 1O 5 O 6 3 O CHANNEL 1 O 4 7 2 8 O 1O CHANNEL SELECT +5 -5 +5 -5 +5 O O 4 7 8 O VOLUME LOW MID HIGH GAIN 6 7 8 9 10 11 12 6 7 2 1 8 9 1 1O LEVEL 1 5 3 2 9 1 -5 O 6 2 9 1 5 3 LEVEL 2 -5 13 +5 -5 +5 -5 +5 O 1O LOW MID HIGH VOLUME INPUT 14 15 16 17 18 Th
BV-60H / BV-120H IMPEDANCE SELECTOR SPEAKERS 100 WATTS RMS All Tube Guitar Amplifiers EFFECTS LOOP 125VAC, 50/60Hz 250VAC, 50/60Hz CAUTION FOOTSWITCH T5A SLO-BLO T2.5A SLO-BLO RISK OF ELECTRIC SHOCK DO NOT OPEN RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR AVIS: WARNING: 8 TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, SO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. 16 MAIN (USE FIRST) EXT.
BV-60H / BV-120H All Tube Guitar Amplifiers Important Information About Tubes And Tube Products: A Brief History Of The Tube: In 1883, Edison discovered that electrons would flow from a suspended filament when enclosed in an evacuated lamp. Years later, in 1905, Fleming expanded on Edison's discovery and created the "Fleming Valve". Then, in 1907, Dr. Lee de Forest added a third component – the grid – to the "Fleming's Valve" and the vacuum tube was a fact of life.
BV-60H / BV-120H All Tube Guitar Amplifiers Important Information About Tubes And Tube Products (Continued): The Nature Of Tubes: Why (And When) To Replace Them: Tubes are made up of a number of fragile mechanical components that are vacuum-sealed in a glass envelope or bubble. The tube's longevity is based on a number of factors which include how hard and often the amplifier is played, vibration from the speakers, road travel, repeated set up and tear down, etc.
BV-60H / BV-120H All Tube Guitar Amplifiers Important Information About Tubes And Tube Products (Continued): Survival Tips For Tube Amplifiers: To prolong tube life, observe these tips and recommendations: • Match the impedance of your speaker cabinet(s) to your amplifier. Improper impedance matching will contribute to early tube degradation and may cause premature tube failure. • Make sure the speaker(s) are properly connected prior to turning on the amplifier.
BV-60H / BV-120H All Tube Guitar Amplifiers Some Suggested Settings: CRUNCHY EDGE: REVERB 4 5 EFFECTS LOOP PAD AD (12dB) 6 3 7 8 2 O 1O 5 6 3 ON OFF 9 1 4 7 9 1 O EFFECTS LOOP 5 CHANNEL 2 6 3 8 9 1 1O 4 7 8 2 2 PRESENCE 4 O 5 O 6 3 O CHANNEL 1 O 4 7 O +5 -5 LOW +5 MID -5 +5 8 O O 4 2 3 7 2 8 1 1O 5 6 3 ON OFF 2 EFFECTS LOOP 5 1O -5 GAIN +5 LOW -5 +5 MID -5 +5 HIGH 3 9 7 8 1 1O 4 9 O O 6 3 O 4 VOLUME +5 -5 LOW +5
BV-60H / BV-120H All Tube Guitar Amplifiers System Block Diagram: CH.1 TUBE STAGE INPUT CHANNEL SWITCHING LOW MID HIGH VOLUME TUBE STAGE CH.2 GAIN TUBE STAGE TUBE STAGE TUBE STAGE TUBE STAGE LOW MID HIGH VOLUME PAD SWITCHING SEND MAIN SPKR OUT RETURN POWER AMP REVERB LEVEL 1 EFFECTS LOOP EFFECTS SWITCHING IMPEDANCE SELECTOR EXT.
BV-60H / BV-120H All Tube Guitar Amplifiers 11
BV-60H / BV-120H All Tube Guitar Amplifiers Technical Specifications: Output Power Rating BV-60H BV-120H Gain 50 watts RMS @ 5% THD 8 or 16 ohm load, 120 VAC 100 watts RMS @ 5% THD 8 or 16 ohm load, 120 VAC Channel 1 Channel 2 66dB, tones at “10” @ 1kHz 101dB, tones @ “10” @ 1kHz Tone Control Range Channel 1 Low Mid High 16dB @ 100Hz 20dB @ 300Hz 10dB @ 10kHz Low Mid High 15dB @ 100Hz 13dB @ 500Hz 10dB @ 10kHz 5dB @ 10kHz Channel 2 Presence Input Impedance 1M ohm Maximum Signal Accepted 2.
