Crestron BB-4L Wall Mount Back Box
Wall Mount Back Box: BB-4L
Description
The BB-4L is a UL
®
-listed pre-construction mounting option for the Crestron Isys
®
TPS-4L and TPMC-4L wall mounted touchpanels. The table below lists all parts
included with the BB-4L.
Supplied Components
DESCRIPTION PART NUMBER QUANTITY
Back Box Mounting Enclosure Assembly 4008078 1
Mounting Bracket 2004218 2
Cover Plate 2013239 1
Screw, 06-32, 1/4” L, pan phillips 2007213 4
Screw, 08-8B, 1/4” L, pan phillips, self-tapping 2007277 1
Screw, 04-40, 1 1/2" L, pan phillips 2007254 4

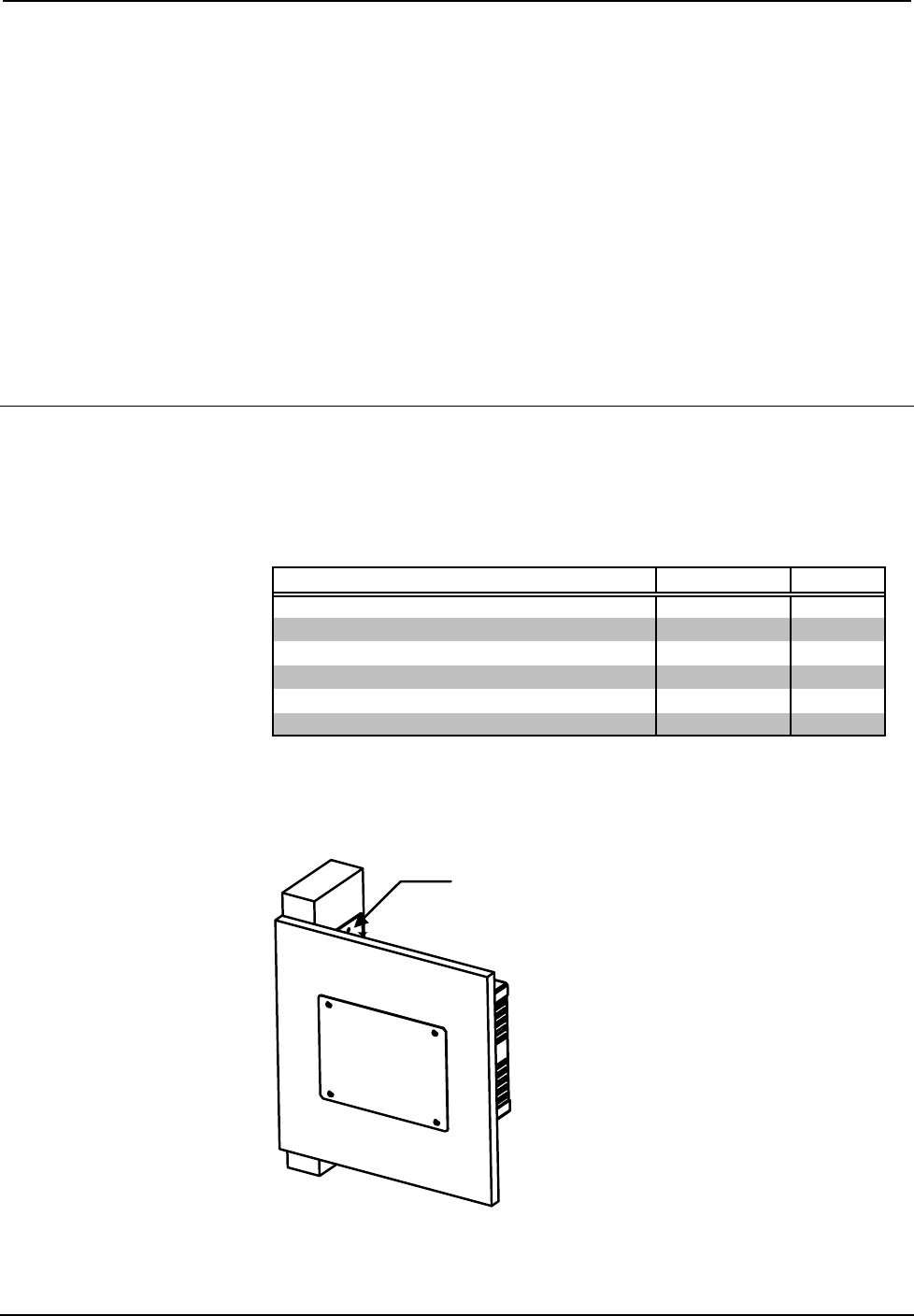

The mounted view of the BB-4L is shown in the following diagram.
BB-4L Mounted View (Optional Cover Plate Attached)
HOLES FOR STANDARD
DRYWALL SCREWS OR
NAILS TO MOUNT BACK BOX
Installation Guide - DOC. 6387 Wall Mount Back Box: BB-4L • 1
