User Guide

Integrated Control System Crestron CNMSX

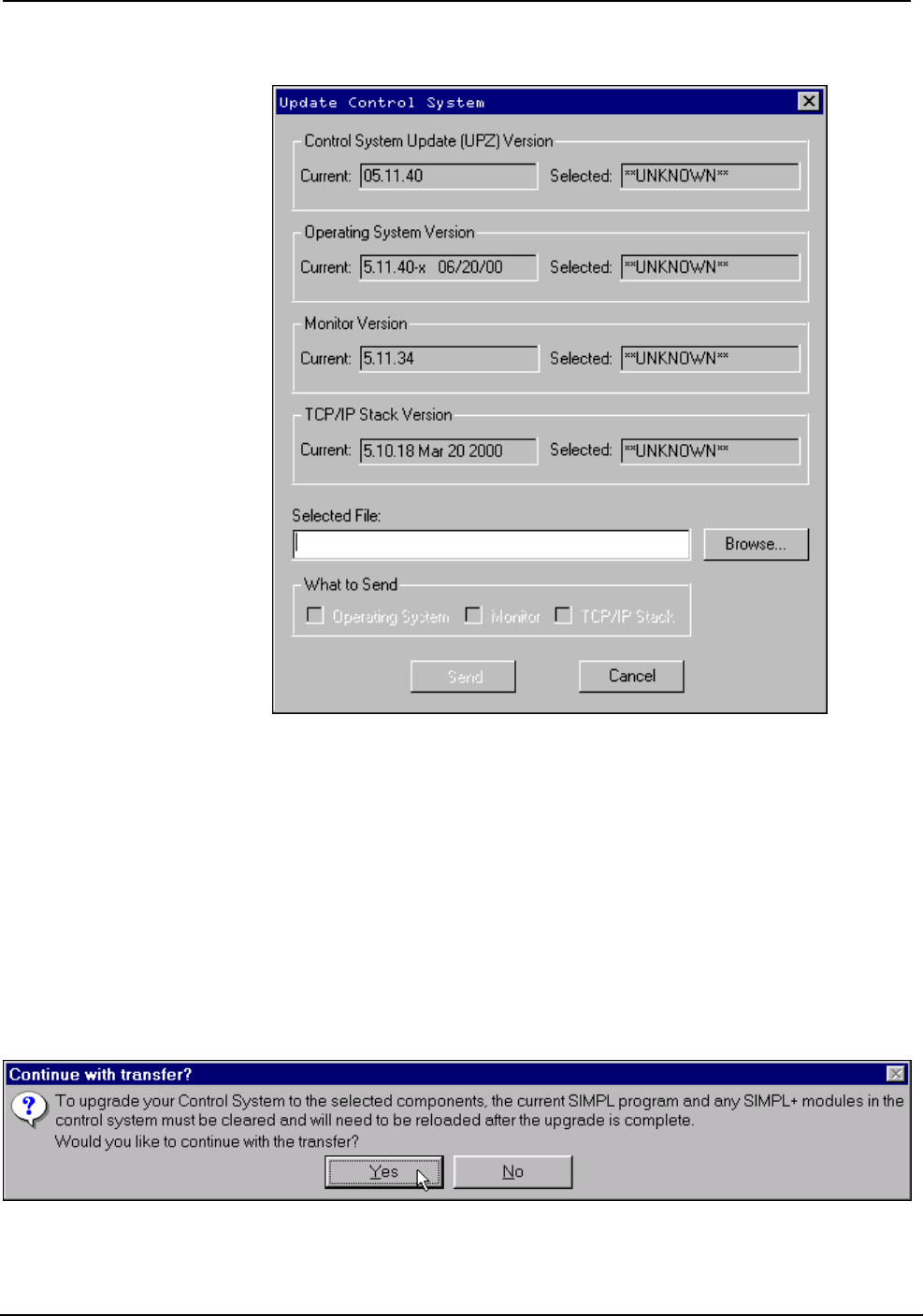

"Update Control System" Dialog Box
4. After a file is selected, the Send button and What to Send portion of the
"Update Control System" dialog box become active so that the user can
determine which versions of the Operating system, Monitor ROM, and
TCP/IP Stack to update.
5. If the CNMSX does not have the optional CNX Ethernet expansion
card, uncheck the TCP/IP Stack option to transfer faster (transferring the
stack will not cause any problems). Otherwise, send all of the checked
components. To start the transfer, click the Send button. The transfer
dialog will inform you of the progress in updating the selected
components.
6. As a result of the update, a dialog box similar to below may open and
the SIMPL program (and possibly SIMPL+ modules) must be cleared.
"Continue with transfer?" Selection Box
7. Upload the SIMPL program and SIMPL+ modules after the transfer is
complete.
32 • Integrated Control System: CNMSX Operations Guide - DOC. 8118B
