116 NetVision Plus/Elite and Micro DVR v2.3 SP2 User's Guide 21-0400E v2.3.3
25.3.2
I/O Wiring—NetVision Plus
Cards
Pin Function Ext. Wire Colour
Pin 1 Alarm input 1 Black
Pin 2 Alarm input 3 White
Pin 3 Ground Red
Pin 4 Alarm output 2 Green
Pin 5 Not used Orange
Pin 6 Alarm input 5 Blue
Pin 7 Alarm input 7 Black/White
Pin 8 Ground Black/Red
Pin 9 Alarm input 10 Black/Green
Pin 10 Alarm input 12 Black/Orange
Pin 11 Alarm input 13 Black/Blue
Pin 12 Alarm input 15 White/Black
Pin 13 Ground White/Red
Pin 14 Alarm input 2 White/Green
Pin 15 Alarm input 4 White/Blue
Pin 16 Alarm output 1 Red/Black
Pin 17 Alarm output 3 Red/White
Pin 18 Ground Red/Orange
Pin 19 Alarm input 6 Red/Blue
Pin 20 Alarm input 8 Green/Red
Pin 21 Alarm input 9 Green/Orange
Pin 22 Alarm input 11 White/Red/Black
Pin 23 Ground Red/Black/White
Pin 24 Alarm input 14 Black/White/Red
Pin 25 Alarm input 16 Black/White/Green

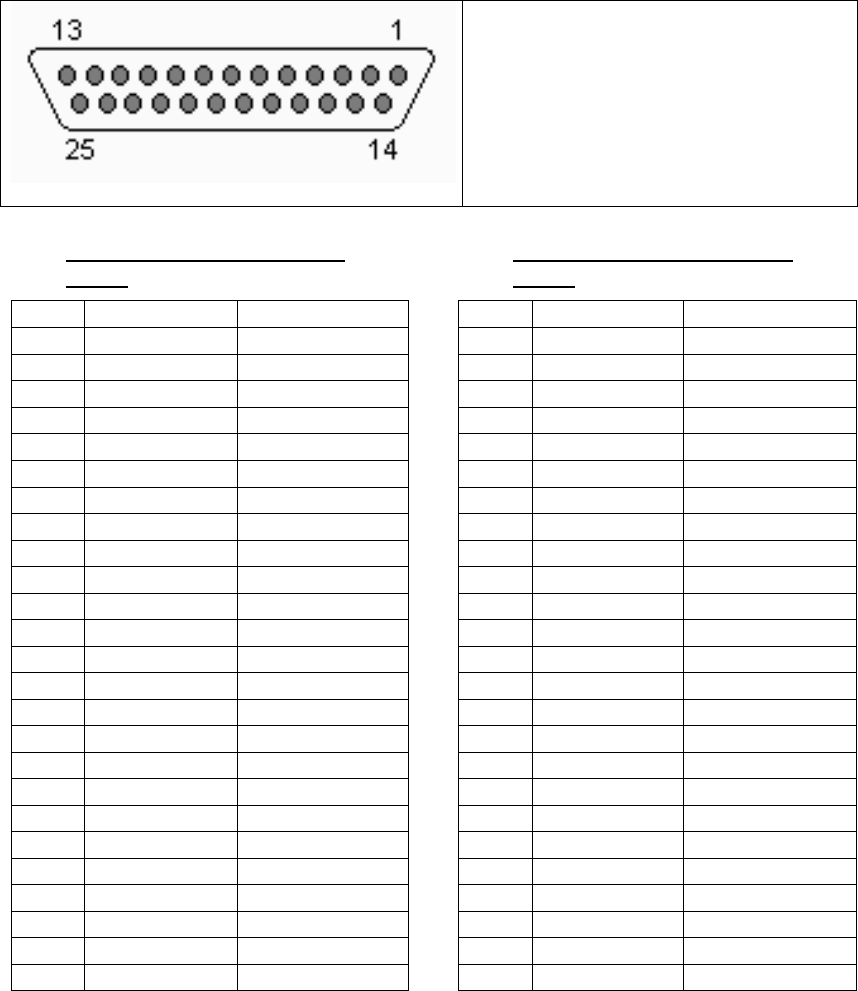

25.3.3
I/O Wiring—NetVision Elite
Cards
Pin Function Ext. Wire Colour
Pin 1 Alarm input 1 Black
Pin 2 Alarm input 3 White
Pin 3 Alarm input 5 Red
Pin 4 Alarm input 7 Green
Pin 5 Alarm input 9 Orange
Pin 6 Alarm input 11 Blue
Pin 7 Alarm input 13 Black/White
Pin 8 Alarm input 15 Black/Red
Pin 9 Ground Black/Green
Pin 10 Ground Black/Orange
Pin 11 Alarm output 1 Black/Blue
Pin 12 Alarm output 3 White/Black
Pin 13 Not used White/Red
Pin 14 Alarm input 2 White/Green
Pin 15 Alarm input 4 White/Blue
Pin 16 Alarm input 6 Red/Black
Pin 17 Alarm input 8 Red/White
Pin 18 Alarm input 10 Red/Orange
Pin 19 Alarm input 12 Red/Blue
Pin 20 Alarm input 14 Green/Red
Pin 21 Alarm input 16 Green/Orange
Pin 22 Ground White/Red/Black
Pin 23 Ground Red/Black/White
Pin 24 Alarm output 2 Black/White/Red
Pin 25 Not used Black/White/Green
This is a 25-PIN connector that is NOT
close to the regular PC connectors
(monitor, network, etc.).
Output Specifications:
• Open collector output
• High impedance at normal
• Sink current at alarm
