Control Panel IP / NVS
Settings
Locator: Open the Windows Control Panel,
and double-click DSR Configuration.
Desktop Link: There should also be a link to this on
your desktop called "NetVision Configuration".
Login as a supervisor using a valid name and
password. Then, double-click "Video Source
Manager" in the list.
Note: This may be at the top or other location in the
list rather than appearing in alphabetical order.
30.5.1
Video Source Manager
For each camera
:
1) Select the camera in this list.
2) Select [Source], select the type of video
source, and click [OK].
Video Sources Supported:
UCC Video Capture Card
: Select this for each
camera that is connected directly to the back of the
NetVision Server PC.
NetVision NVS
: Our 4-camera IP network video
server.
Axis Server
: Axis IP cameras and/or video
servers.
Elmo Server
: Elmo IP cameras and/or video
servers.
Sony Server
: Sony IP cameras and/or video
servers.
AIRL Server
: AIRL IP cameras and/or video
servers.
Tip: Various models are supported in each case
(which you will identify in the next step),
3) With the camera still selected in the list,
click [Setup]. Then, enter your desired
settings, and click [OK].
30.5.2

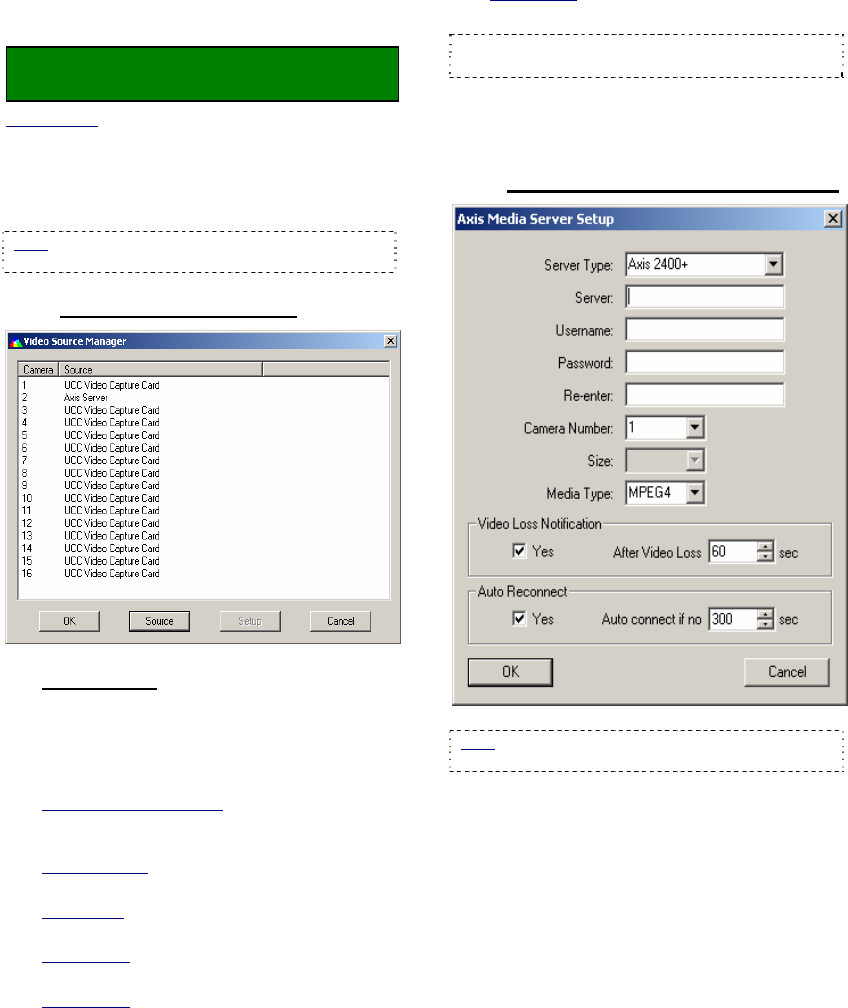

The Video Source Setup Screen
Note: This is a sample screen. Other models will
have similar settings.
- Server Type: Select your model of IP camera
or video server here.
- Server: Enter the IP address for the IP camera
or network video server module.
- Username: Enter a valid username (as set up
at the IP camera or video server) to allow
connecting with this camera.
- Password: This is the password associated
with the username above.
