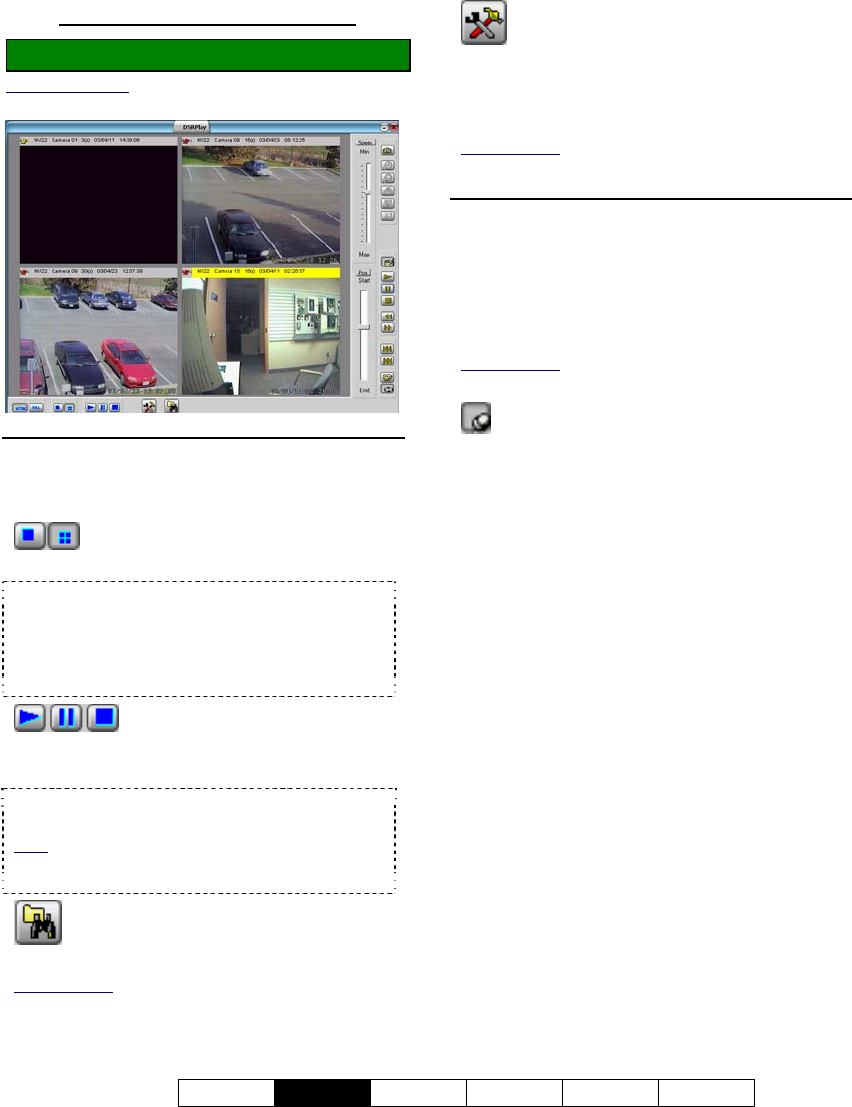

The (Quad) Playback Screen
Locator: [Playback], Ö[Quad Playback].
Remote Software: Click the coloured 'Play' button, then
select [Quad Playback].
Bottom of the Screen
- NTSC and PAL: Select the type of video you
are working with.
-
: This sets the screen format (1 or 4
videos at a time--'quad' playback mode).
'Quad' playback mode: The video will appear in the
last-selected playback window, and playback
controls pertain to the selected playback window
only (click the title-bar for the desired one first).
Exception: See [Play All], [Pause All], and [Stop
All], to follow/below.
- (Play, Pause, Stop): These
buttons allow you to start playing, pause, or stop
all videos that are on-screen.
Tip: To apply these functions to one video at a
time, use the playback controls on the right.
Note: Starting files at the same time should not be
confused with synchronous playback. The 4 videos
selected may be from completely different times.
- Search: This opens the (quad) Search
screen where you can search for video files.
Related Topic: "The (Quad) Search Screen",
previous/above.
- Utility: This opens the Utility screen
where you can set playback options, view
properties for a selected file (quadrant), and set
the file type for all snapshots saved using Quad
Playback.
Related Topic: "The Utility Screen (Quad Playback)",
to follow/below.
Upper-Right
- Speed 'slider': This allows setting the playback
speed (drag the slider and watch for your
desired speed--from 0.1x up to 10x).
- Top-Right Buttons: These allow grabbing a
video frame (snapshot).
Related Topic:
7.7 Viewing and Printing 'Snapshots'
- Always on Top: When selected (pin
stuck in), this stops the quad playback screen
from being hidden by any other programs.
--------------------------------------------------
- Position 'slider': This shows your relative
position within a video. You can drag the slider
to quickly skim through a video.
- Buttons Near the Bottom Right: These allow
replaying or resuming a video, plus pausing,
stopping, and jumping to the next or previous
file. These buttons appear yellow when
available.
