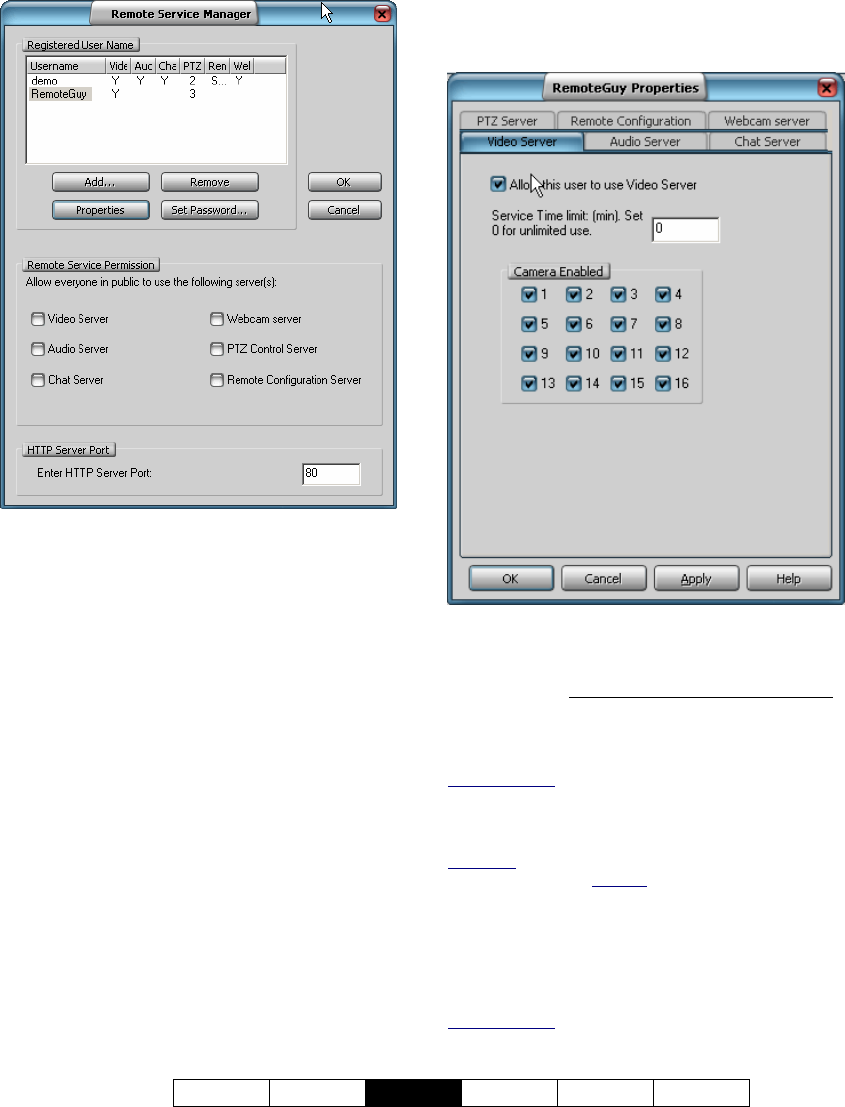

Top of the Screen
This window shows a list of remote users that
have been set up.
Buttons in the Middle of the
Screen
[Add]: Select this to create a new remote
user. Enter the name and password (twice)
when prompted, and click [Next]. You will be
advanced to [Properties] automatically (to
follow / below).
[Remove]: To delete a remote user, select the
user in the list, and click [Remove]. When
asked to confirm, click [OK].
[Set Password]: Select this to change the
password for a remote user. (Enter the new
password (twice) when prompted, and click
[OK].
--------------------------------------------------
[Properties]: Select this to set up permissions
for a remote user. (Select the user in the list,
click here, and then make your selections).
Video Server (+ playback)
This allows setting the selected user's ability to
view cameras and play any associated videos
remotely. You can also limit the maximum
duration for viewing sessions, and limit them to
specific cameras if desired.
Related Topics:
7 Playing or Downloading Video Recordings
8 Viewing Live Cameras
28.1 The Video Playback Feature (Micro DVR)
WebView
: The ‘WebView’ feature also requires access
to the video server. Related
: 29 Viewing Cameras
through a Web Browser
Audio Server
This allows setting the selected user's ability to
remotely monitor audio, and set an optional
time-limit for sessions.
Related Topics: 16.7 Remote Audio Monitoring
