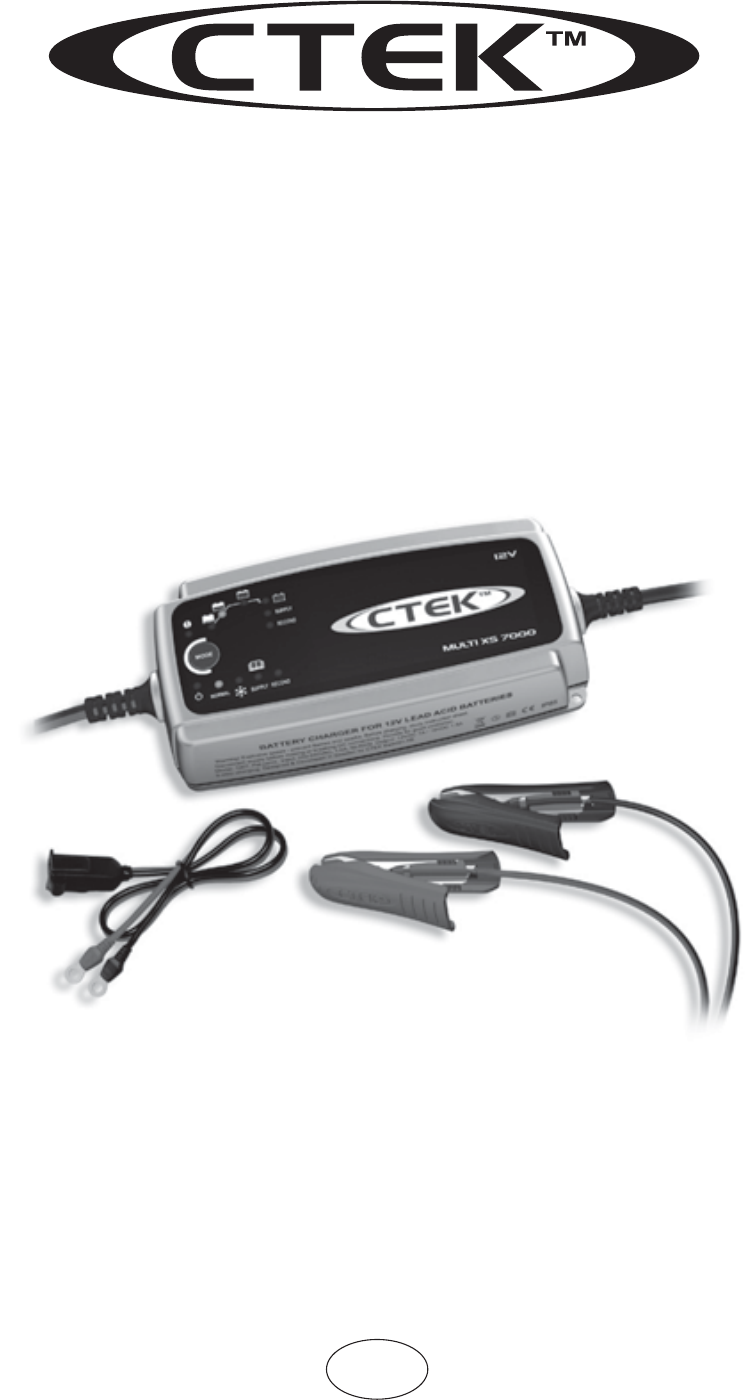

MULTI XS 7000 Battery charger For lead-acid batteries 14–225Ah User Manual and guide to professional battery charging for Starter and Deep Cycle batteries.
INTRODUCTION Congratulations on your purchase of your new professional MULTI XS 7000 Switch Mode Charger with Pulse Maintenance, Float, Analysis and Recond. MULTI XS 7000 is a member of a family of professional chargers from CTEK SWEDEN AB. It represents the state-of-the-art technology for battery charging. A MULTI XS 7000 will prolong the lifetime of your battery. Read this user manual and follow the instructions carefully before using the charger.
MODE ”NORMAL” (14.4V) Normal setting for wet batteries, MF and for most Gel batteries. Mode ”SNOWFLAKE” (14.7V) This setting is recommended for batteries at temperatures below 5°C. It is also recommended for many AGM batteries. This setting is not recommended for maintenance charging when the temperature at times exceeds +5°C. In this case, the NORMAL mode is recommended. Mode ”SUPPLY” (13.6V) In this mode, the charger provides a constant voltage of 13.6V.
Start charging 1. Connect the power cord to the power outlet. 2. Set the proper charging mode for the battery by pushing the Mode button until the correct setting is lit. Choosing settings for your battery is described under ”BATTERY TYPES AND SETTINGS”. 3. The lamp for Deep Discharged battery (1) will indicate if the battery voltage is low. If lamp 1 blinks, this indicates that the battery is lightly sulphated. Read more under ”CHARGING PHASES” 4.
Analysis (Lamp 3) Charging is suspended for a short period and the battery voltage measured. If it falls too quickly, the battery is probably faulty. Charging is suspended and an error is indicated (lamp 0). Maintenance charging - float (Lamp 4) During the first 10 days of maintenance charging the battery is maintained with constant voltage, 13.6V. Float-maintenance is indicated by lamp 4. Maintenance charging - pulse (Lamp 4) The state of charge varies between 95% and 100%.
MAINTENANCE The charger is maintenance free. Note that disassembly of the charger is not permitted and will void the warranty. If the power cord is damaged, the charger must be left to the reseller for maintenance. The case can be cleaned with a soft damp cloth and mild cleanser. The charger should be disconnected from the power supply while cleaning. EQUIPMENT MULTI XS 7000 is delivered with a set of battery cables with battery pole clamps and a set of battery cables with eyelet terminals.
MANUFACTURER’S DECLARATION CTEK SWEDEN AB, Rostugnsvägen 3, 776 70 VIKMANSHYTTAN, SWEDEN. Declares under sole responsibility that the battery charger MULTI XS 7000, to which this declaration relates is in conformity with the following LVD standards: EN 60335-1, EN 60335-2-29 according to the terms of directive 73/23/EEC with the addition of 93/68/EEC.
INDICATIONS Indication Description 0 Error mode, the charger suspends the charging / voltage maintenance. See further description below. 1 Start mode. 2 Bulk charging, maximum voltage. 3 Absorption charging, voltage limited to chosen voltage. 4 Pulse maintenance charging 5 Supply mode, fixed output voltage, no counter voltage requirement. 6 Recond charging A B C D E STANDBY Mode ”NORMAL” (14.4V) Mode ”SNOWFLAKE” (14.7V) Mode ”SUPPLY” (13.6V) Mode ”RECOND” (15.7V, 1.5A 0.
