Installation Guide

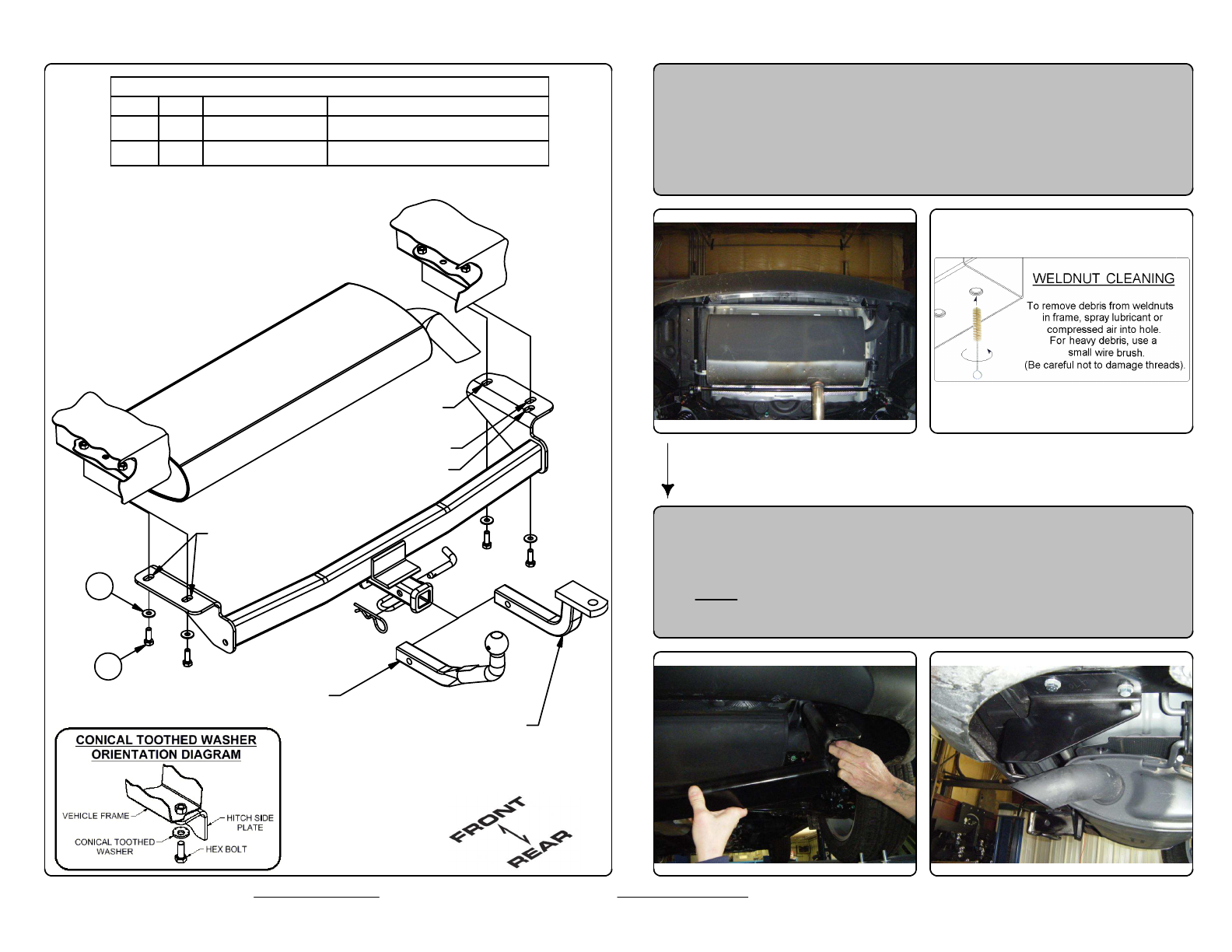

INSTALLATION WALKTHROUGH:

For more information log onto www.curtmfg.com, & for helpful towing tips log onto www.hitchinfo.com

Parts List

DESCRIPTIONPART NUMBERQTYITEM

HEX BOLTM10 - 1.25 x 3041

CONICAL TOOTHED WASHER3/8"42

2. Raise hitch into position aligning holes in side plates with

weldnuts and secure using M10-1.25 x 30mm bolts and

3/8" conical toothed washers.

Note: For ease of installation, raise passenger side first

then driver side.

1. Locate weldnuts in frame rails.

TUCSON / SPORTAGE

TUCSON /

SPORTAGE

TUCSON

SPORTAGE

DESIGNED FOR USE WITH

BALLMOUNT # 45520

EURO MOUNT OPTIONS AVAILABLE

# 45561 (1-7/8" BALL) & # 45562 (2" BALL)
