Table Of Contents

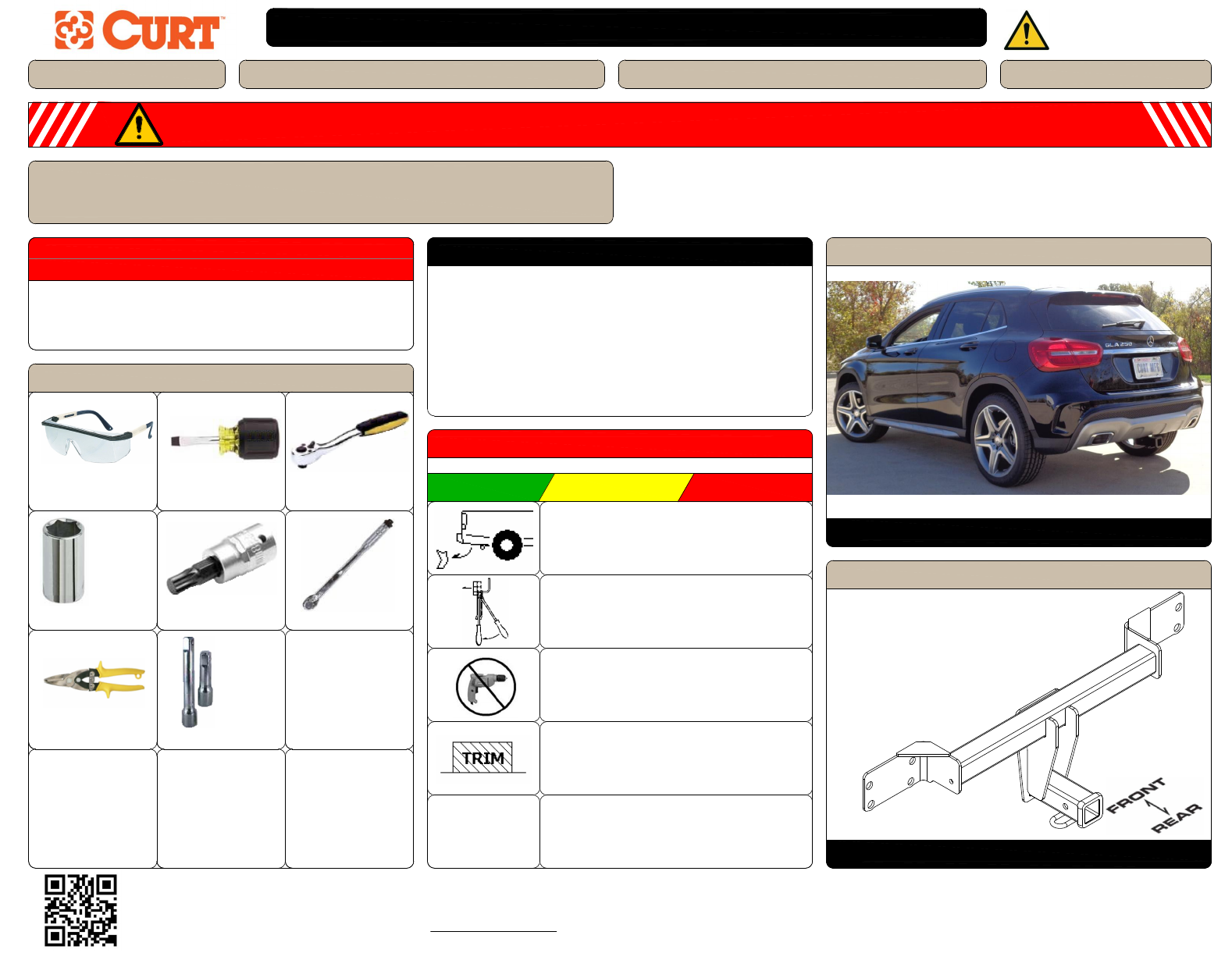

MAKE: STYLE:

WARNING: NEVER EXCEED YOUR VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY

For more information log onto www.curtmfg.com & for helpful towing tips log onto www.hitchinfo.com

WEIGHT CARRYING:

INSTALLATION TIPS:

INSTALLATION REQUIRES:

VEHICLE PHOTO:

HITCH ILLUSTRATION:

REPRESENTATIVE PHOTO

MAKE SURE YOUR HITCH MATCHES

LEVEL OF DIFFICULTY: CHALLENGING

MODERATE CHALLENGING

1. BEFORE YOU BEGIN INSTALLATION, READ ALL

INSTRUCTIONS THOROUGHLY.

2. TO EASE INSTALLATION, 2 PEOPLE MAY BE

REQUIRED.

3. USING PROPER TOOLS WILL GREATLY IMPROVE

THE QUALITY OF THE INSTALL AND REDUCE THE

TIME REQUIRED.

4. NEED HELP OR HAVE SOME QUESTIONS?

CALL TECHNICAL SUPPORT AT 877.287.8634

Safety glasses should be

worn at all times while

installing this product.

YEARS: 2015-PRESENT

MERCEDES / INFINITI

MODEL:

GLA250 / QX30

SUV

4,000

600

TRAILER WEIGHT:

TONGUE WEIGHT:

13197 INSTALLATION INSTRUCTIONS

LBS.

MIN.

MIN.120

IF YOU ARE HESITANT TO UNDERTAKE

THIS TASK ON YOUR OWN, CONTACT AN AUTHORIZED

CURT INSTALLER FOR ADDITIONAL ASSISTANCE.

NOVICE INSTALL TIME:

PRO INSTALL TIME:

SCAN FOR

MORE INFO

PERIODICALLY CHECK THIS RECEIVER HITCH TO ENSURE ALL FASTENERS ARE TIGHT AND ALL STRUCTURAL COMPONENTS ARE SOUND

CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective,

CURT Manufacturing LLC. may repair or replace the product at their option, when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of this product

voids the warranty. CURT Manufacturing LLC.'s liability is limited to repair or replacement of products found to be defective, and specifically excludes liability for incidental or consequential loss or damage.

For more information log onto www.curtmfg.com

This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C.Regulation V-5 and SAE J684.

6/29/2020

EASY

SAFETY

GLASSES

SCREW

DRIVER

TORQUE

WRENCH

RATCHET

SOCKETS

6mm

8mm

10mm

16mm

TORXBIT

SOCKETS

T30

T40

PART REMOVAL

LOWER EXHAUST

NO DRILLING REQUIRED

AVIATION

SHEARS

EXHAUST HEAT SHIELD

AND REAR FASCIA

TRIMMING IS REQUIRED

SOCKET

EXTENSION

INCORRECT BOLT AND TORQUE WAS INITIALLY IN INS. M16 WITH 161 LB-FT CHANGED TO M10 WITH 37 LB-FT

02/27/2015 ASC

ADDED NOTE FOR OTHER MODELS TO EXTEND COVERAGE ON INFINITI QX30

4/27/2017 DAM

ADDED NOTE FOR SOME MODELS; CREATED TRIM DIAGRAM TO EXTEND COVERAGE FOR 2015-2017 GL45 AMG45

4/27/2017 DAM

4 UPDATED PHONE NUMBER 6/29/2020 CJW

REVISION HISTORY

REV DESCRIPTION DATE APPROVED

Summary of content (8 pages)

PAGE 1
3197 MAKE: MERCEDES / INFINITI YEARS: 2015-PRESENT Safety glasses should be worn at all times while installing this product . INSTALLATION INSTRUCTIONS MODEL: GLA250 / QX30 STYLE: SUV WARNING: NEVER EXCEED YOUR VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY For more information log onto www.curtmfg.com & for helpful towing tips log onto www.hitchinfo.com WEIGHT CARRYING: PRO INSTALL TIME: NOVICE INSTALL TIME: TRAILER WEIGHT: TONGUE WEIGHT: 60 MIN. 120 MIN.
PAGE 2
INSTALLATION WALKTHROUGH: NOTE: REUSE EXISTING FACTORY HARDWARE 1) Remove exhaust tips by removing (4) Torx T40 bolts, (2) per side. Set aside for reassembly. NOTE: For other models remove (4) Torx T30 bolts. REAR VEHICLE FASCIA USE EXISTING VEHICLE MOUNTING HARDWARE 2) Lower exhaust hanger bracket, by removing (2) M10 bolts, (1) per side. VEHICLE BUMPER BEAM VEHICLE HEAT SHIELD (TRIMMED) For more information log onto www.curtmfg.com, & for helpful towing tips log onto www.hitchinfo.
PAGE 3
INSTALLATION WALKTHROUGH: 3) Remove (2) tail lights, (1) per side, by removing plastic wing nut on the interior panel. Set aside for reassembly. NOTE: For other models remove (2) M10 per light, gently pull sideways away from vehicle. 4) Remove (4) M10 bolts for plastic brackets which support the rear fascia, (2) per side. Set aside for reassembly. 5) Remove (6) M6 bolts from exhaust heat shield. Do not remove heat shield, leave in place. Lower and lay on exhaust.
PAGE 4
INSTALLATION WALKTHROUGH: 7) Temperarily remove rear fascia by releasing press in tabs all along top portion of facia. NOTE: For other models unclip (4) rear sensor plugs prior to removing rear fascia. 8) Remove (8) M10 nuts on inner panel to remove the bumper, (4) per side. Remove bumper. Set aside bumper and hardware for reassembly. 9) Align hitch on bumper through the weld on bolts. 10) Place bumper/hitch on rear of vehicle through original bumper mounting holes.
PAGE 5
INSTALLATION WALKTHROUGH: 11) Torque all M10 bolts to 37 lb-ft. Reattach heat shield and fasten (6) M6 bolts, removed in step 5. 13) Reinstall rear facia and secure press in tabs. NOTE: Some models will require trim as shown in the trim diagram using aviation shears. All dimensions are approximate, confirm fit prior to trimming. REAR FASCIA TRIM DIAGRAM 2.75 in 3.25 in 12) Trim heat shield with shears around lower portion of hitch to avoid any contact. Approx. dimensions of cut out should be 1.25" x 4.
PAGE 6
PAGE 7
MERCEDES GLA250 / INFINITI QX30 13197 6/29/2020 PAGE 1 of 2 GROSS LOAD CAPACITY WHEN USED AS A WEIGHT CARRYING HITCH: 4,000 LBS. TRAILER WEIGHT & 600 LBS. TONGUE WEIGHT. ***DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY.*** WARNING: ALL NON-TRAILER LOADS APPLIED TO THIS PRODUCT MUST BE SUPPORTED BY 18050 STABILIZING STRAPS.
PAGE 8
MERCEDES GLA250 / INFINITI QX30 13197 6/29/2020 PAGE 2 of 2 HAVING INSTALLATION QUESTIONS? CALL TECHNICAL SUPPORT AT 877-287-8634 HEAT SHIELD TRIM DIAGRAM REAR FASCIA TRIM DIAGRAM 3.25 in APPROXIMATE 2.75 in APPROXIMATE 4.50 in 1.25 in APPROXIMATE APPROXIMATE INSTALLATION STEPS 1) Remove exhaust tips by removing (4) Torx T40 bolts, 2 per side. Set aside for reassembly. NOTE: For other models remove (4) Torx T30 bolts. 2) Lower exhaust hanger bracket, by removing (2) M10 bolts, 1 per side.
