Installation Guide

INSTALLATION WALKTHROUGH:
For more information log onto www.curtmfg.com, & for helpful towing tips log onto www.hitchinfo.com

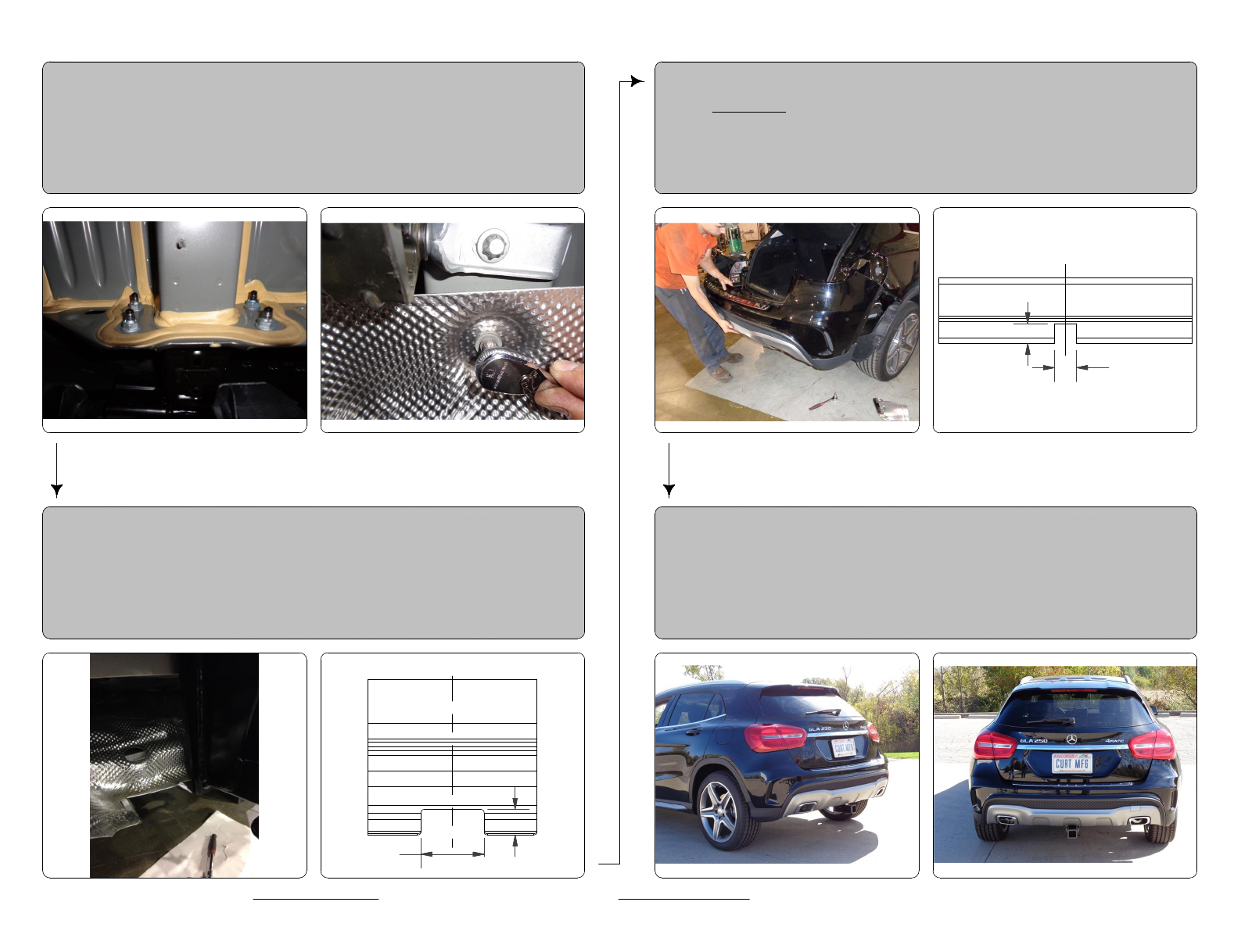

12) Trim heat shield with shears around lower
portion of hitch to avoid any contact. Approx.
dimensions of cut out should be 1.25" x
4.50".
11) Torque all M10 bolts to 37 lb-ft. Reattach
heat shield and fasten (6) M6 bolts, removed
in step 5.
13) Reinstall rear facia and secure press in tabs.
NOTE: Some models will require trim
as shown in the trim diagram using aviation
shears. All dimensions are approximate,
confirm fit prior to trimming.
14) Follow steps 1-6 in reverse order to reattach
trim pieces and tail lights.
Installation Complete.
3.25 in
2.75 in
REAR FASCIA TRIM DIAGRAM
4.50 in
1.25 in
HEAT SHIELD TRIM DIAGRAM
